In today’s world, electronic and mechanical systems are an integral part of our daily lives. These systems often generate heat during their operation, which, if not properly managed, can lead to diminished performance, potential system failure, and even damage to critical components. One of the most effective solutions for managing heat is the use of a heat sink. Heat sinks are passive thermal management devices that absorb and dissipate heat from electronic components, ensuring they remain within optimal operating temperatures. This article will explore what makes a heat sink the most effective, the factors that determine heat sink performance, and how to choose the right one for your specific needs.
When selecting a heat sink for any given application, there are several critical factors to consider. The effectiveness of a heat sink depends on the material, surface area, airflow, and thermal resistance. Let’s break down each factor to understand its importance.
The material used to make a heat sink plays a fundamental role in its ability to conduct and dissipate heat. Thermal conductivity is a key property of materials that allows them to transfer heat from one place to another efficiently.
Common Heat Sink Materials:
Material | Thermal Conductivity (W/m·K) | Advantages | Disadvantages |
205 | Lightweight, cost-effective, easy to manufacture | Lower thermal conductivity compared to copper | |
Copper | 398 | Higher thermal conductivity, better heat dissipation | Heavier and more expensive than aluminum |
Copper-Alloy | 120–200 | Offers a balance between weight, cost, and conductivity | Still more expensive than aluminum |
Graphite | 140–180 | Excellent thermal conductivity, lighter than copper | Expensive, more complex manufacturing process |
Aluminum is the most common material due to its excellent balance of performance, cost, and ease of manufacturing.
Copper, while more expensive, offers superior thermal conductivity and is used in high-performance applications.
Copper alloys are typically used when a balance between thermal performance and cost is necessary.
Graphite is becoming increasingly popular due to its high conductivity but is limited by cost and manufacturing challenges.
The surface area of a heat sink is critical for its performance. Heat sinks are designed to increase the surface area in contact with the surrounding air, which enhances the heat dissipation process. The larger the surface area, the more heat can be absorbed and dissipated.
Ways to Increase Surface Area:

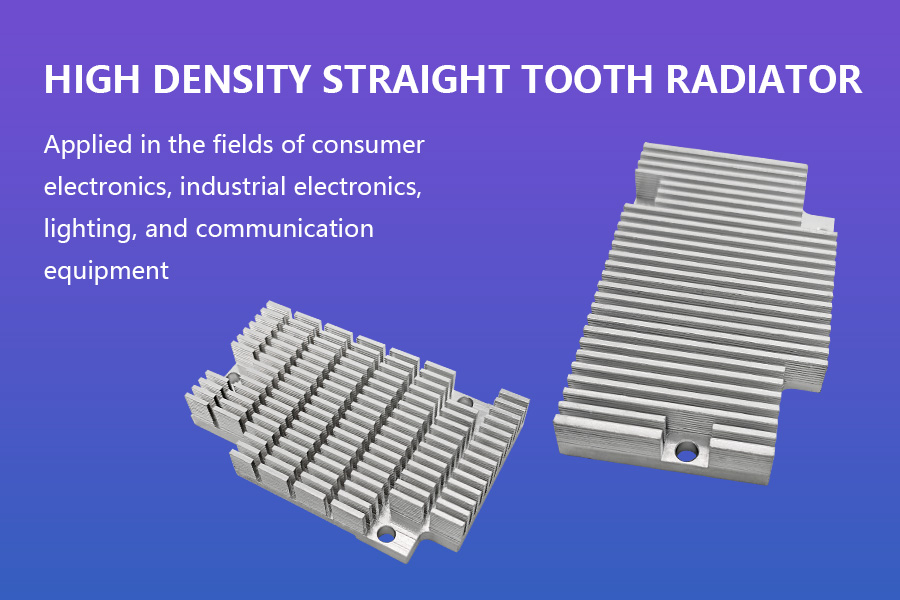

Fins and Grooves: Heat sinks are often designed with fins or grooves that extend the surface area. The more fins or grooves, the more surface area available for heat dissipation.
Shape and Size: A larger heat sink generally has more surface area, which helps dissipate heat more efficiently. The design should be optimized to fit within the physical constraints of the device it cools.
Airflow is crucial for the effective operation of a heat sink. The heat sink relies on the movement of air around it to carry away the heat that has been absorbed. Airflow can be categorized as either natural convection or forced convection.
Natural Convection: This occurs when hot air rises naturally, pulling cooler air in from the surrounding environment. It is generally sufficient for smaller applications and low-power devices.
Forced Convection: In many high-performance devices, fans or blowers are used to force air through the heat sink, significantly improving heat dissipation by increasing airflow.
Factors Affecting Airflow:
Orientation of the Heat Sink: The positioning of the heat sink in relation to the device can affect airflow efficiency.
External Fans or Air Circulators: In high-performance systems, external fans are often used to force air over the heat sink, increasing the heat dissipation rate.
Thermal resistance refers to the material's ability to resist the flow of heat. The lower the thermal resistance of a heat sink, the better it will perform. This factor is crucial in selecting the right heat sink for devices with high heat generation.
The thermal resistance can be defined as:
Rθ=(Tjunction−Tambient) /P
Where:
Rθ is the thermal resistance (°C/W),
Tjunction is the temperature of the component,
Tambient is the ambient temperature,
P is the power dissipation.
A lower Rθ means that the heat sink will allow heat to dissipate more effectively, keeping the component cool.
There are two primary types of heat sinks: passive and active heat sinks. The type of heat sink you choose will depend on your application, power requirements, and space limitations.
Passive heat sinks rely on natural convection to dissipate heat. These are the most common type of heat sinks and are often used in low-power applications.
Advantages:
No Moving Parts: No fans or pumps are required, making them quieter and more reliable.
Energy Efficient: No external power source is needed for operation.
Cost-Effective: Passive heat sinks are typically cheaper to manufacture than active cooling systems.
Best Used In: Low to medium-power devices such as computers, LED lighting, and consumer electronics.
Active heat sinks use fans or other mechanical devices to force air over the heat sink, increasing the airflow and improving heat dissipation. These heat sinks are used in high-performance systems where rapid heat removal is necessary.
Advantages:
Better Heat Dissipation: Fans or pumps allow for much faster heat removal.
Used in High-Performance Applications: Necessary for cooling CPUs, GPUs, and other high-performance components.
Best Used In: High-power devices such as gaming computers, high-performance servers, and industrial equipment.
Choosing the most effective heat sink requires understanding the specific thermal management needs of your device. Several factors need to be considered:
The first step is to evaluate the amount of heat generated by the device. High-power systems such as gaming PCs or servers require heat sinks that can handle large amounts of heat, often with active cooling. Conversely, consumer electronics may only need a passive heat sink.
The available space for a heat sink is another critical factor. Many devices have limited space for cooling solutions, so selecting a heat sink that fits within those dimensions is important. For example, compact devices such as laptops or mobile phones often require smaller, custom-designed heat sinks.
To ensure the heat sink will perform effectively, calculate the thermal resistance required to keep the device at a safe operating temperature. Low thermal resistance is critical in high-performance systems, while standard devices may operate effectively with higher thermal resistance.
Thermal Resistance Selection for Different Applications:
Application Type | Required Thermal Resistance (°C/W) | Heat Sink Type |
Consumer Electronics | 1 - 3 | Passive Heat Sink |
High-Performance PCs | 0.1 - 1 | Active Heat Sink |
LED Lighting | 2 - 4 | Passive Heat Sink |
Power Electronics | 0.1 - 0.5 | Active Heat Sink |
In some cases, heat sinks are integrated with other cooling methods, such as liquid cooling or thermoelectric cooling systems. This hybrid approach can help optimize thermal management in very high-performance devices or systems.
Innovative heat sink designs are continually being developed to improve performance. These advanced designs help to meet the increasing demands of modern electronics.
Microchannel heat sinks use very small channels through which coolant flows, offering enhanced heat dissipation for devices that generate significant heat. These types of heat sinks are used in applications like high-performance computing and electronics manufacturing.
Heat pipes and vapor chambers are effective solutions for transferring heat from one area to another. These solutions are often integrated into heat sinks to improve thermal performance in devices that generate a lot of heat, such as CPUs or GPUs.
While performance is a critical factor in selecting a heat sink, cost-effectiveness is equally important. Passive heat sinks are typically cheaper to manufacture and easier to install, while active heat sinks, though more expensive, offer superior performance in high-heat environments.
Cost Comparison of Heat Sink Types:
Cooling Method | Initial Cost | Maintenance Costs | Power Consumption |
Passive Heat Sink | Low | Low | None |
Active Heat Sink | Medium | Medium | Low |
While active heat sinks may have higher initial costs, they can lead to long-term savings by improving the performance and longevity of devices. By preventing overheating and reducing wear on critical components, users may avoid costly repairs or replacements.
In conclusion, selecting the most effective heat sink requires careful consideration of factors such as material, surface area, airflow, and thermal resistance. By understanding your device's specific thermal management requirements, you can choose a heat sink that guarantees optimal performance, reliability, and longevity. Whether you are designing high-performance electronics or seeking to enhance heat dissipation in consumer devices, the right heat sink is crucial for maintaining efficiency. At Shenzhen Wandaan Precision Technology Co., Ltd., we specialize in custom-designed, high-quality heat sinks tailored to meet your unique cooling needs. Our expert team is here to help you select the most suitable heat sink solution, ensuring your devices operate at their best. Reach out to us today to explore how we can support your thermal management needs and provide you with efficient, cost-effective solutions.
1. What materials are best for an effective heat sink?
The best materials for a heat sink are aluminum and copper due to their excellent thermal conductivity, allowing them to efficiently transfer heat.
2. What is the role of surface area in a heat sink's effectiveness?
A larger surface area allows for more heat dissipation, improving the heat sink’s overall effectiveness. This is achieved through the addition of fins, grooves, or other features.
3. How does airflow affect the performance of a heat sink?
Proper airflow enhances the heat dissipation process. Active heat sinks benefit from forced airflow, while passive heat sinks rely on natural convection to remove heat.
4. What type of heat sink is best for high-performance devices?
High-performance devices, such as gaming computers or industrial equipment, require active heat sinks with fans or liquid cooling to efficiently remove heat.
5. How do I determine the size of the heat sink I need for my device?
The size of the heat sink depends on the heat load generated by the device and the available space. Larger devices with higher heat output require larger heat sinks.
