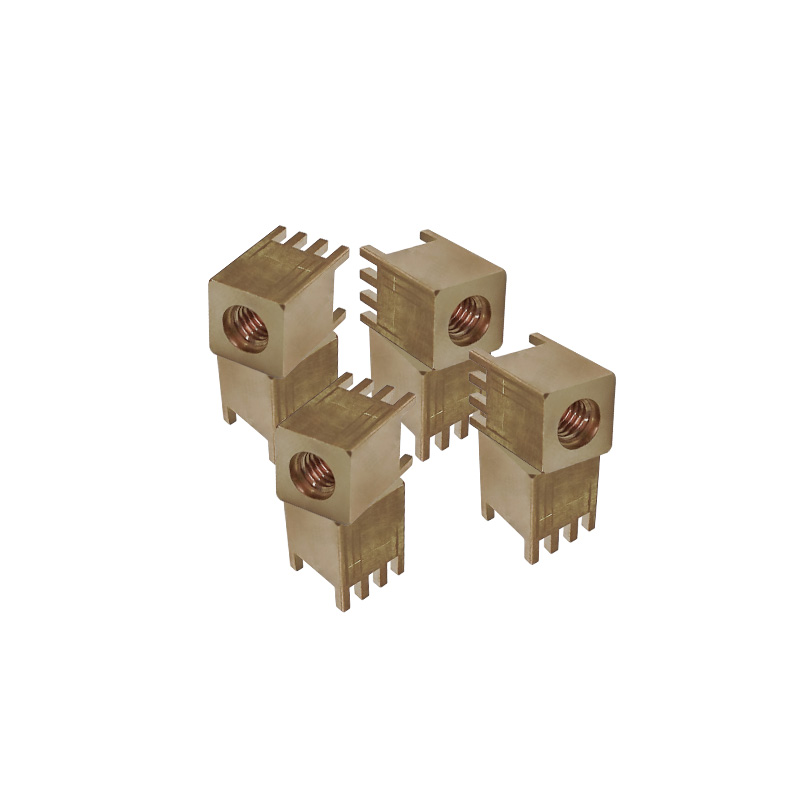

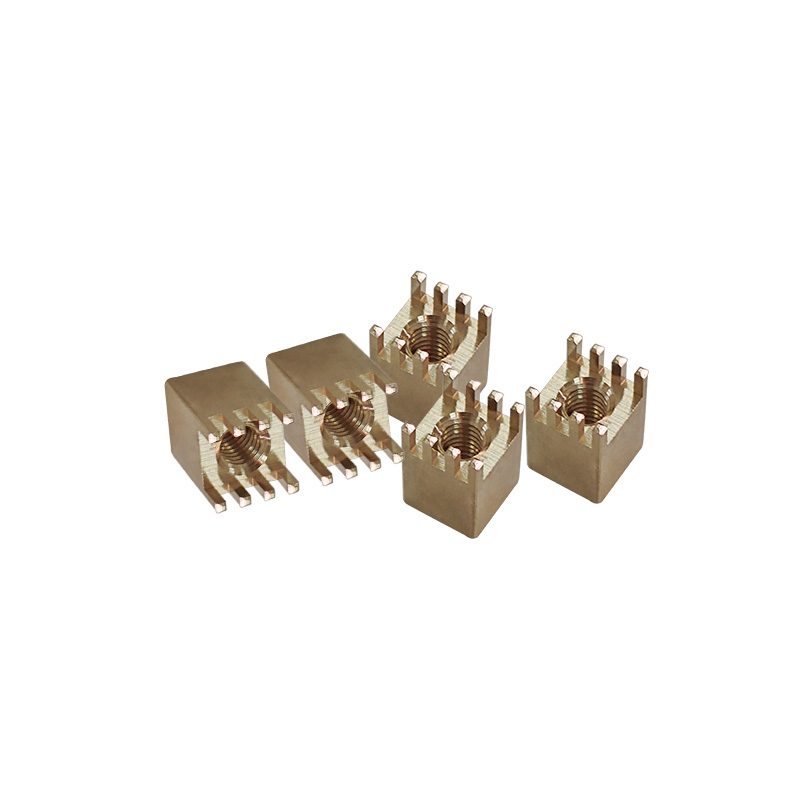

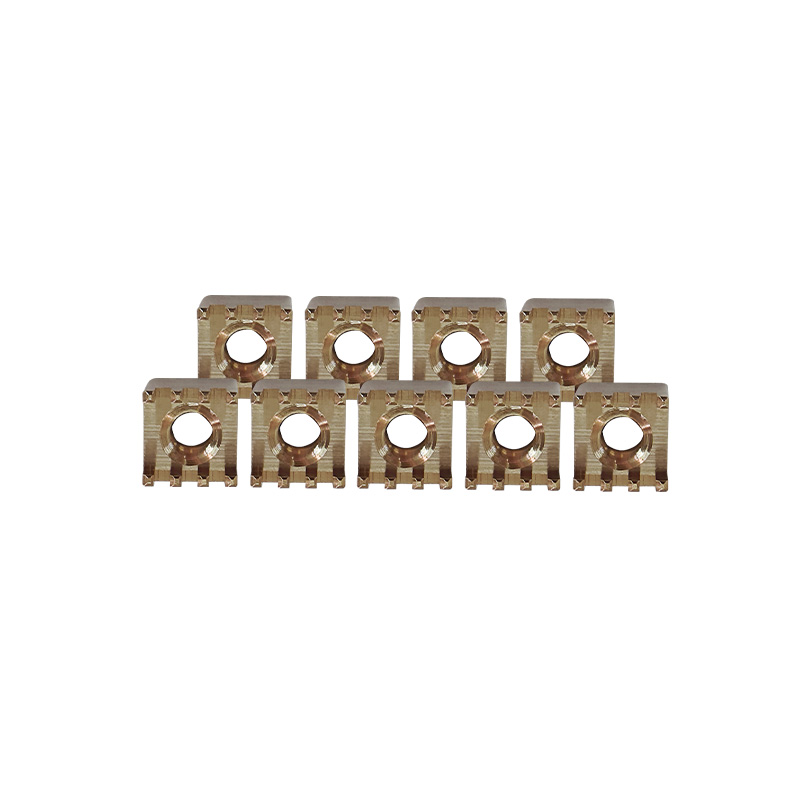

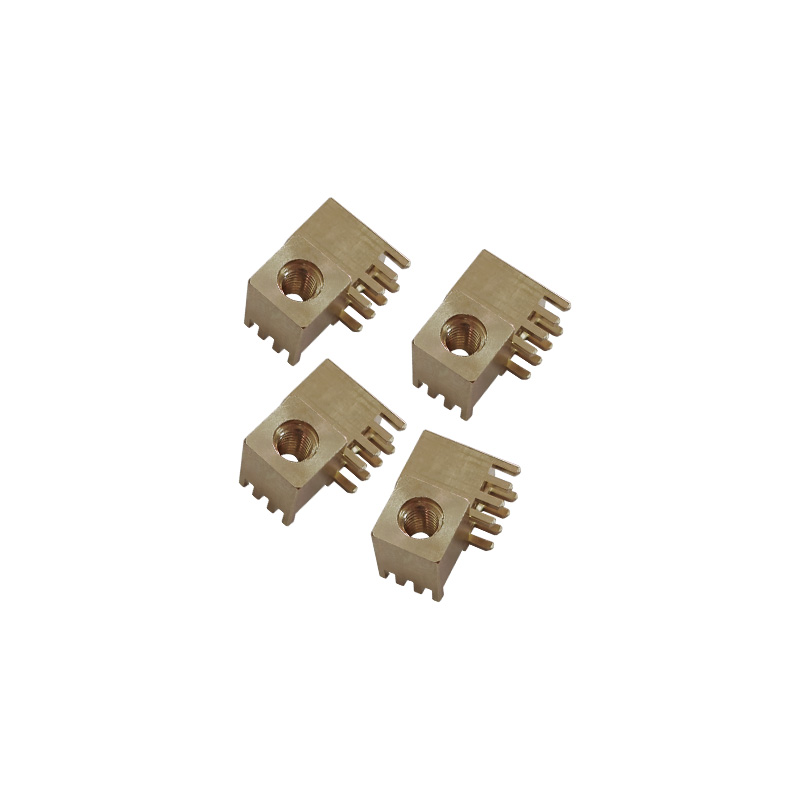

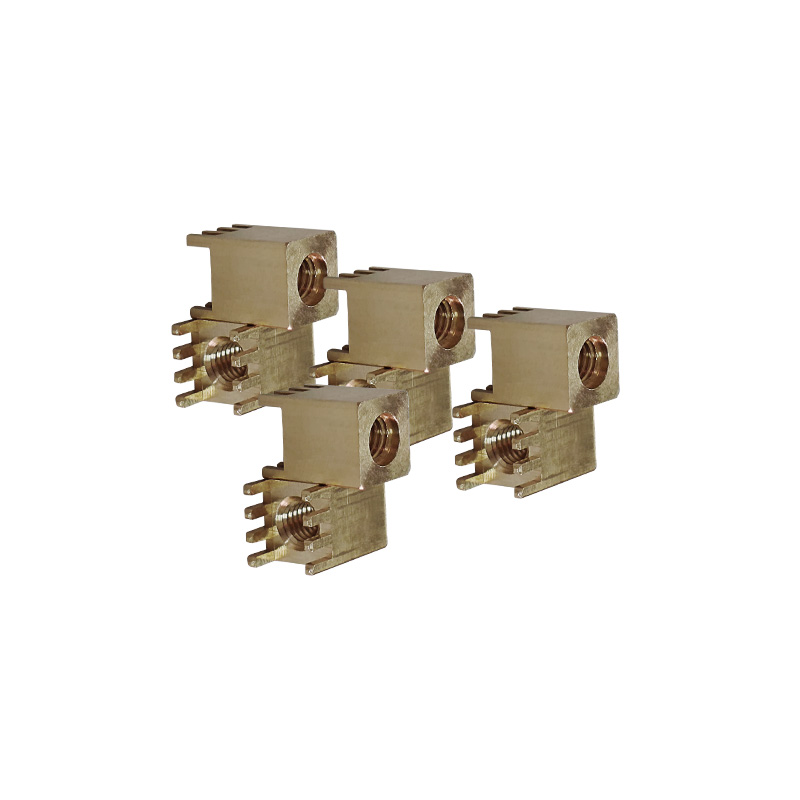

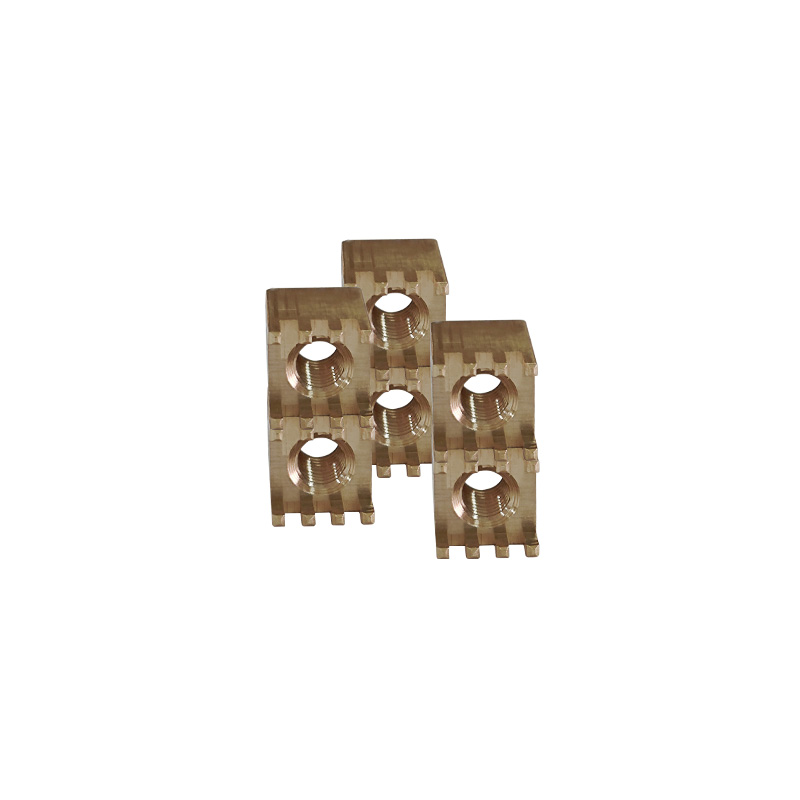

8 pin Press-fit PCB Terminal

Custom High Current 8-pin PCB Terminal

Wanda-An specializes in producing various types of PCB terminals. The high-current wiring terminals used in this circuit board have a sturdy structure and are made of copper alloy with tin-plated or natural surfaces. The key function is to use press fit installation on printed circuit boards to generate high holding force, which is safer than soldering connections and resistant to vibration and impact. By using solderless press-fit installation, printed circuit boards can withstand thermal loads, improve reliability, and be more cost-effective.

FAQs

1. Are you a factory?

A: Yes, we have own factory. Welcome to visit our factory.

2. How do we choose between screw-type, spring-type, and pluggable PCB terminals?

A: Screw-type offers high vibration resistance and is ideal for high-current industrial equipment.

Spring-type enables tool-free, quick wiring and suits applications requiring frequent maintenance.

Pluggable terminals allow modular design and easy field replacement. Your choice should balance assembly efficiency, field service needs, and environmental conditions.

3. What are the common causes of terminal connection failure in production, and how can we prevent them?

A: Failures often result from insufficient wire stripping length, incorrect screw torque (too loose or over-tightened), or poor soldering (cold joints, insufficient solder). Implement strict process controls: use calibrated torque drivers, standardize stripping lengths (typically 5-8 mm), andperform regular pull-force and contact resistance tests. For SMT terminals, optimize reflow profiles and inspect solder joints with X-ray if needed. At Wanda-an, we provide high-quality PCB terminals.
