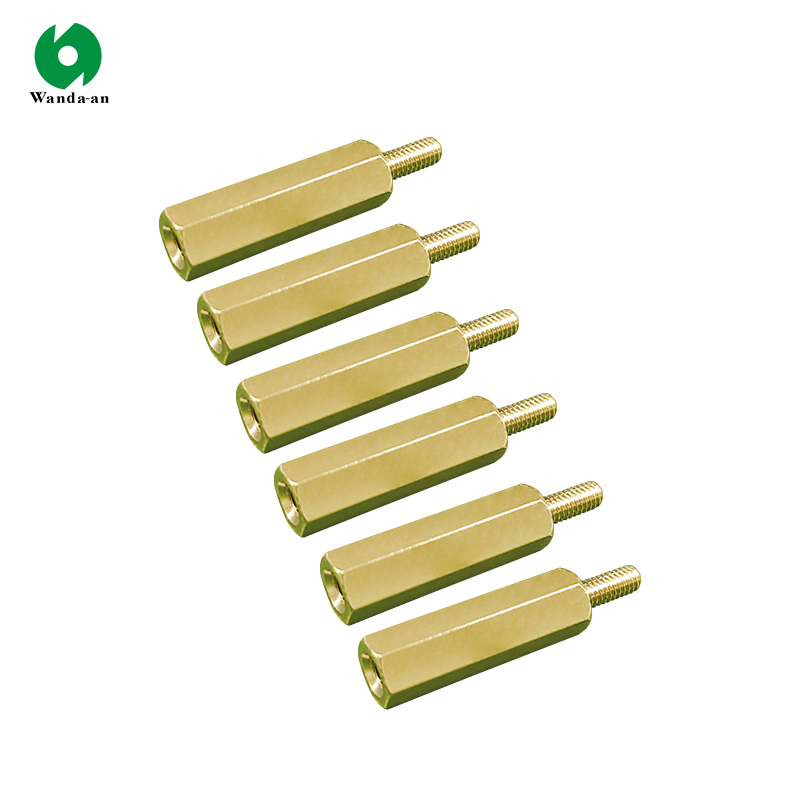

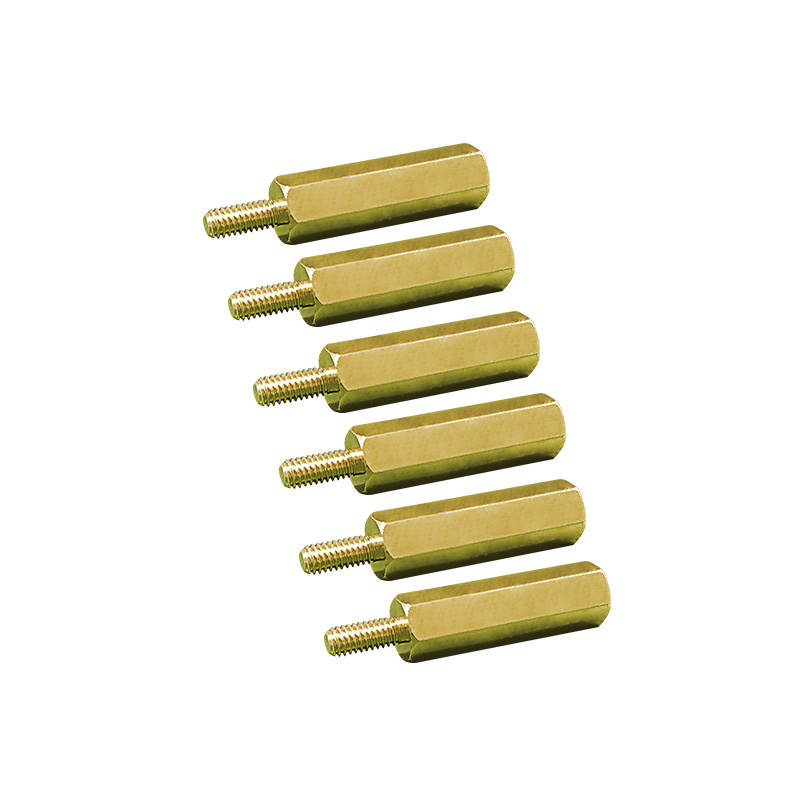

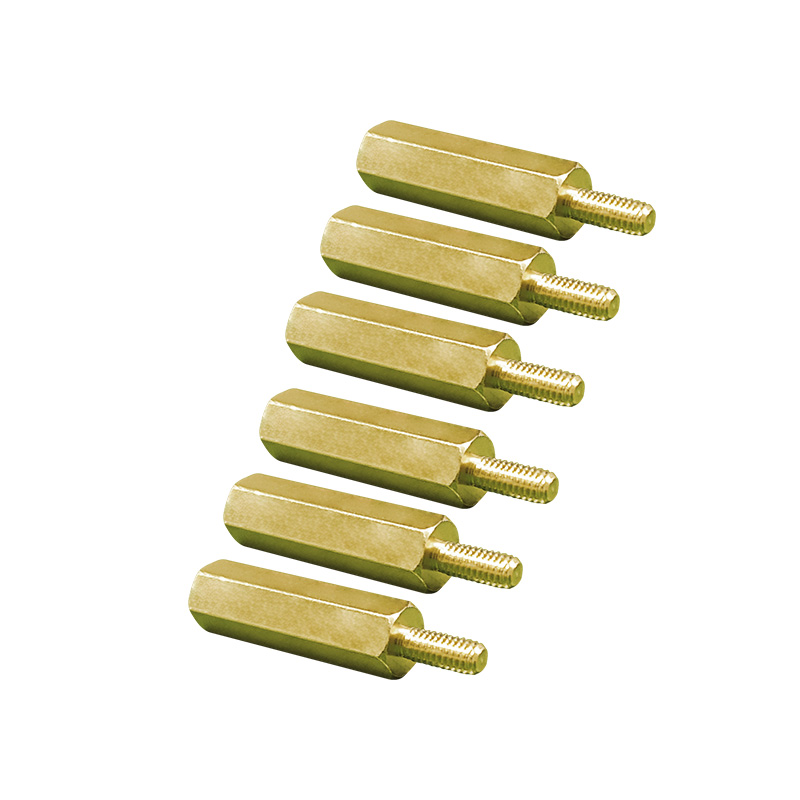

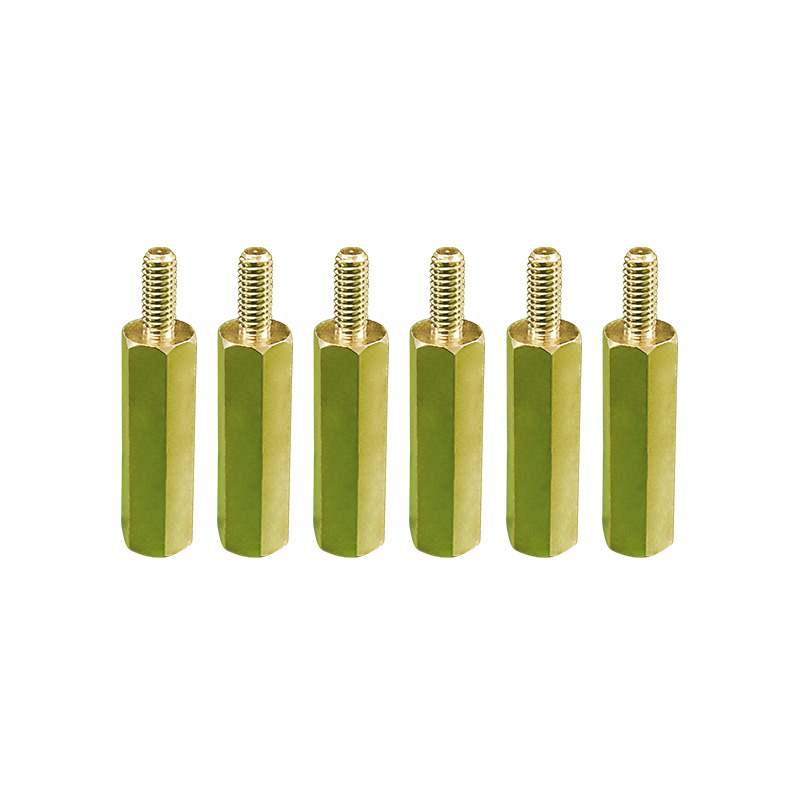

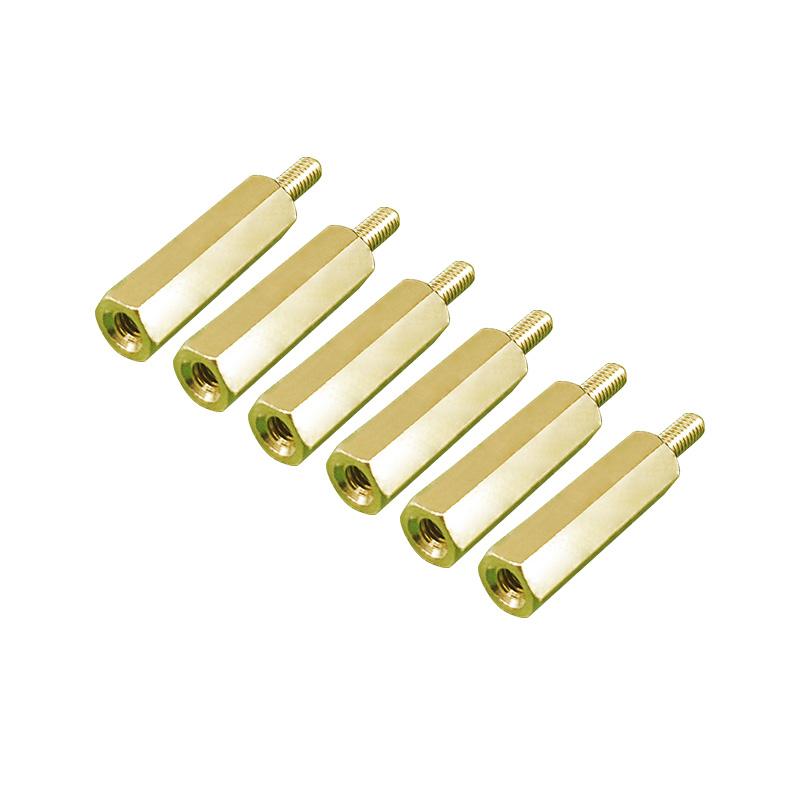

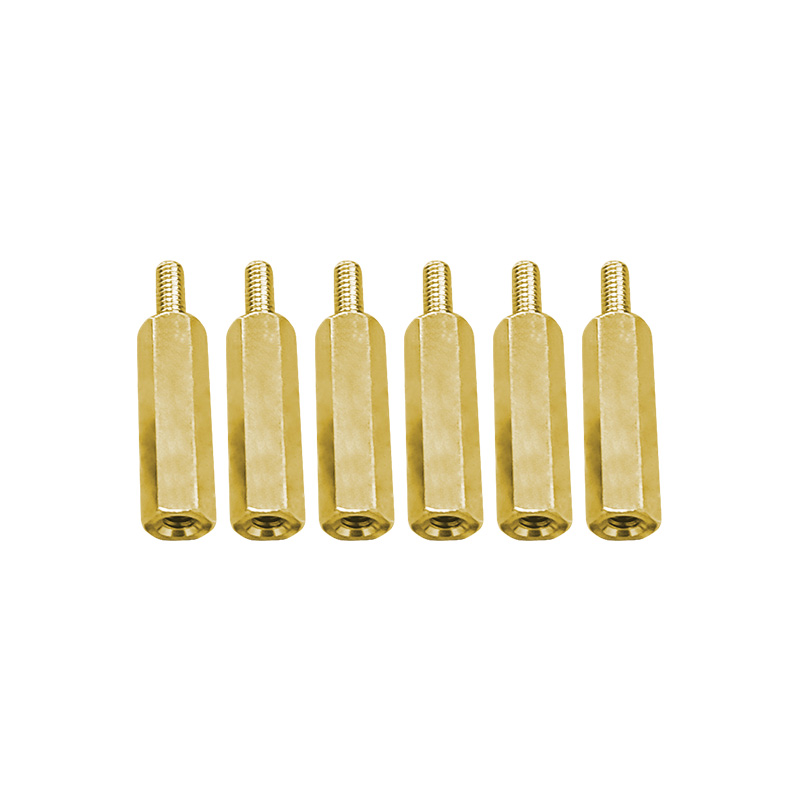

Male-Female Hex Brass M2.5 Standoff

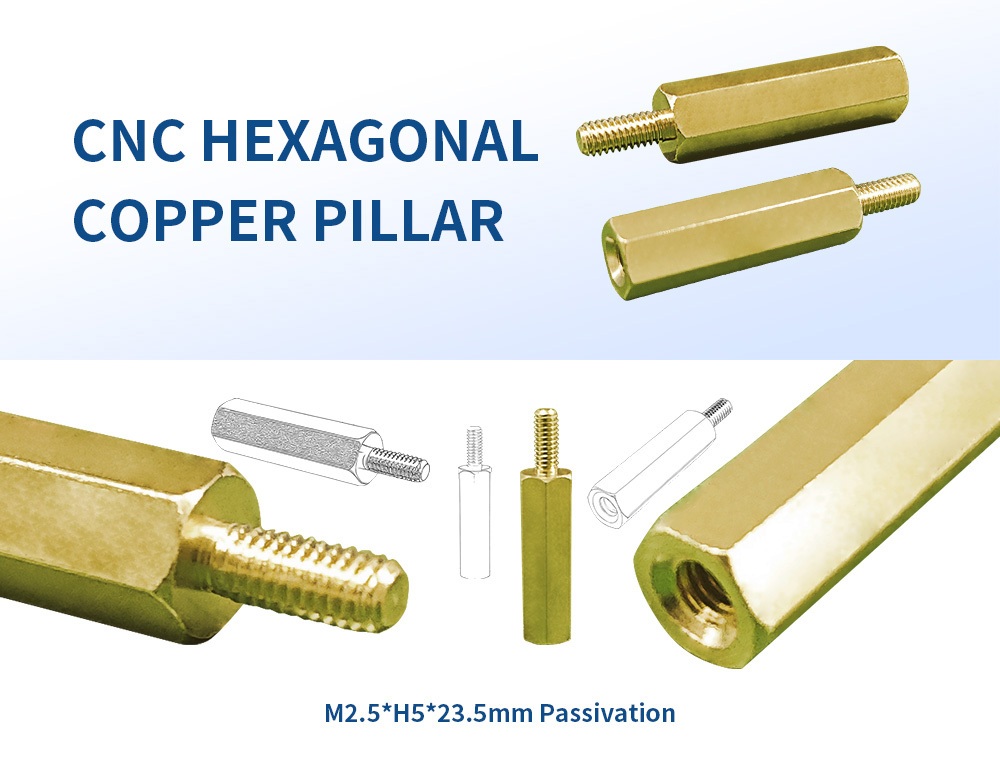

Custom Male to Female M2.5 Standoffs

M2.5 Standoff

M2.5 Standoff is a precise fastener in the field of electronics and machinery, with the core function of building a fixed distance between two components, combining mechanical support, electrical insulation, and auxiliary functions. Its "M2.5" represents the thread specification, with a nominal diameter of 2.5 millimeters, and is compatible with screws and component interfaces of the same specification.

In terms of functionality, it can not only provide stable support for components such as circuitboards and expansion cards, avoiding the risk of wear or short circuits caused by direct contact, but also serve as an electrical grounding path, helping to establish a conductive connectionfrom the additional card to the platform ground plane; Some specially designed standoffs can also serve as heat conduction channels to assist in equipment heat dissipation.

Manufacturing of M2.5 Standoff

The production of M2.5 standoff revolves around precision and performance, and brass is often used as the raw material due to its excellent conductivity, thermal conductivity, and corrosion resistance, which can meet the multiple needs of electronic devices. During production, the standoff is first crafted through precision machining, and then threaded to form standard M2.5 threads. Common types include male and female head integrated structures(one end external thread, one end internal thread), which facilitate flexible connection with different components. To improve performance and appearance, some support columns will undergo surface treatment, such as black plating process, which can enhance antioxidant capacity and optimize product texture. The production process has strict requirements for thread accuracy, ensuring perfect compatibility with corresponding screws and interfaces, controlling errors at the micrometer level, and ensuring stability after assembly.

Application of M2.5 Standoff

The M2.5standoff has a wide range of application scenarios, covering multiple fields such as consumer electronics and industrial equipment. It is the "exclusive partner" of the expansion board, which can accurately fix the distance between the expansion board and themotherboard, avoid damage to HDMI interfaces and other components due to compression, and even achieve multi-layer expansion board stacking through multi column series connectionto expand device functions; In the design of the M.2 interface on the motherboard, according tothe height requirements of the connector (such as H2.5 specification), selecting thecorresponding height M2. 5standoff can provide stable support for M.2 solid-state drives, wireless network cards, and other expansion cards, ensuring a tight connection between the card body and the motherboard. In lightweight devices such as laptops and smartphones, it is used to secure internal circuit boards and casings, optimize internal space layout, and assist in heat dissipation to enhance device stability. In addition, it can also be seen in industrial control equipment and security monitoring systems for separating circuit boards and fixing modules.

Type of M2.5 Standoff

The commonly used materials for M2.5 standoff are brass, steel, and stainless steel

Brass standoff: With excellent conductivity and corrosion resistance, it is commonly used in electronic devices that require high electrical performance, such as fixing circuit boards and stacking expansion boards. Some products may undergo blackening or coating treatment to enhance their antioxidant capacity.

Steel standoff: high strength, low cost, usually treated with tin plating to prevent rusting, suitable for general industrial and electronic assembly environments.

Stainless steel standoff: With excellent rust and corrosion resistance, it is suitable for use in humid or harsh environments, such as outdoor equipment or industrial control systems. Some products use A2 stainless steel (i.e. 304 stainless steel) and comply with RoHS environmental standards.

More Information

For more information, technical specifications, or detailed drawings related to our products, please feel free to contact us. Wanda-an dedicated support team. We are committed to providing you with professional, timely, and personalized assistance to meet your specific needs.
