In today's manufacturing world, CNC machining plays a vital role in transforming raw materials into high-quality, precision-engineered products. From aerospace components to automotive parts and electronics, the CNC machining process ensures consistency, accuracy, and efficiency in production. As industries demand greater precision, faster production times, and reduced waste, CNC machining has become a critical tool for manufacturers worldwide.

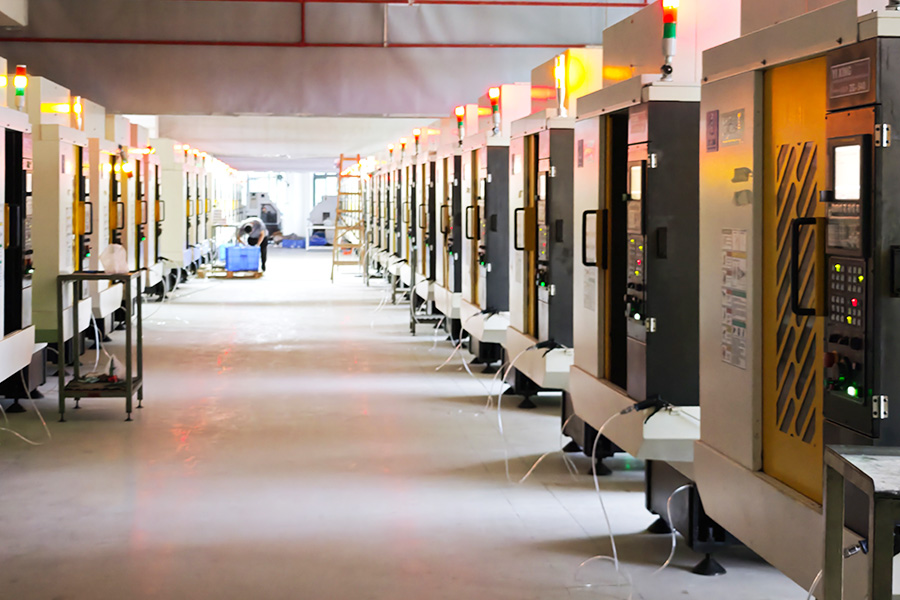

This article will explore the CNC machining process, detailing each step from the selection of raw materials to the creation of a finished product. We’ll also highlight how Shenzhen Wanda-An Precision Technology Co., Ltd., with its advanced machinery and expertise, utilizes CNC machining to produce precision components for industries such as fiber-optical communication, automotive, and electronics.
What is CNC Machining?
CNC (Computer Numerical Control) machining is a manufacturing process in which a computer-controlled machine tool is used to remove material from a workpiece, shaping it into the desired form. The process relies on the use of CNC machines, which can carry out various operations like milling, turning, drilling, and grinding to create complex parts with high precision.
Unlike traditional manual machining, CNC machining is automated, allowing manufacturers to produce high-precision parts consistently and efficiently. With its capability to work with various materials, including metals, plastics, and composites, CNC machining is widely used in industries ranging from aerospace and automotive to medical devices and consumer electronics.
Step 1: Selecting Raw Materials
The journey from raw material to finished product begins with selecting the appropriate material for the part being produced. CNC machining can be applied to a wide range of materials, including:
Metals: Aluminum, steel, titanium, copper, brass
Plastics: Acrylic, polycarbonate, PVC, PTFE
Composites: Carbon fiber, fiberglass
Wood: For certain applications such as furniture or prototypes
The material chosen for a project depends on factors such as the product's functionality, durability, strength, and resistance to various environmental conditions. For example, automotive parts may require high-strength steel or aluminum, while electronics components might require non-conductive materials such as plastic or composite.
Step 2: Designing the Part
Once the material is selected, the next step is designing the part. This stage often involves using CAD (Computer-Aided Design) software to create a 3D model of the part. CAD software allows engineers and designers to visualize the part, check for design flaws, and ensure that the part will meet all specifications.
The design must include detailed dimensions, tolerances, and surface finishes to ensure the finished part will meet industry standards. The model is then converted into a CAM (Computer-Aided Manufacturing) program, which creates a set of instructions for the CNC machine to follow.
Key Design Considerations for CNC Machining:
Tolerances: CNC machines can achieve extremely tight tolerances, often within thousandths of an inch, which is critical for industries like aerospace and medical devices.
Material Removal: Designers must account for how much material will be removed during the machining process to avoid wasting material and time.
Surface Finish: The final surface finish is essential for both aesthetic and functional purposes, especially in parts that will be exposed to wear, friction, or corrosion.
Step 3: Preparing the CNC Machine
Once the design is finalized, the next step is to prepare the CNC machine. This includes loading the CAD/CAM data into the machine’s control system and selecting the correct cutting tools. There are various types of CNC machines, each designed for specific tasks:
CNC Milling Machines: Used for cutting and shaping materials with rotating cutters.
CNC Lathes: Used for turning cylindrical parts, such as shafts or bolts.
CNC Drills: Used for creating holes with high precision.
CNC Grinders: Used for achieving fine finishes on parts with high tolerance requirements.
The CNC machine’s tool changer automatically selects the appropriate tool based on the design and operation required, ensuring a seamless and efficient production process.
Step 4: Machining the Part
The next step is the actual machining process. In this phase, the CNC machine uses the programmed instructions to remove material from the raw workpiece. The machine will carry out various operations, depending on the type of part being produced.
Types of CNC Machining Operations:
Milling: Involves rotating cutting tools that remove material from the workpiece to create flat or curved surfaces. Milling can create complex shapes, slots, and contours.
Turning: The workpiece is rotated while a stationary tool removes material. This is often used for cylindrical parts like shafts.
Drilling: CNC drills create holes in the workpiece by rotating a drill bit.
Grinding: CNC grinders are used to achieve high-precision finishes and tight tolerances on parts.
Throughout the machining process, the machine’s control system monitors the tool’s position and adjusts as needed to ensure the part is created according to the design specifications.
Step 5: Post-Machining Operations
Once the part is machined, several post-machining operations may be necessary to improve its functionality or appearance:
Deburring: The process of removing any sharp edges or burrs left from cutting.
Surface Finishing: Techniques like polishing, anodizing, or painting may be used to enhance the surface finish of the part, depending on the application.
Heat Treatment: Some parts may undergo heat treatment processes, such as hardening or annealing, to improve their strength and durability.
Assembly: If the part is part of a larger assembly, it may be combined with other components to form the final product.
At Wanda-An, we ensure that each part undergoes rigorous quality control during these stages to ensure it meets the required standards for industries such as fiber-optical communication, automotive, and electronics.
Step 6: Quality Control and Testing
Quality control is a critical part of the CNC machining process. Every part produced undergoes inspection to ensure it meets the required specifications. Common quality control methods include:
Visual Inspection: Checking for defects such as cracks, burrs, or surface irregularities.
Dimensional Inspection: Using tools like calipers, micrometers, and coordinate measuring machines (CMM) to measure the part’s dimensions and tolerances.
Functional Testing: For parts that need to perform specific functions, such as in the aerospace or automotive industries, functional tests are carried out to ensure proper operation.
This ensures that the finished product meets the stringent standards expected in various industries.
Step 7: Delivery of Finished Product
Once the parts pass quality control and testing, they are ready for delivery to customers or integration into larger systems. At Wanda-An, we ensure timely delivery, thanks to our advanced production capabilities and supply chain management systems. We also offer customized packaging options to ensure that each product arrives at its destination in excellent condition.
Why Choose CNC Machining?
CNC machining offers numerous benefits, including:
Precision: CNC machines can produce parts with extremely tight tolerances, making them ideal for high-precision industries like aerospace and medical devices.
Efficiency: The automation of CNC machining reduces production times and increases throughput.
Flexibility: CNC machines can work with a wide range of materials and produce complex parts with intricate geometries.
Cost-Effectiveness: While the initial setup cost for CNC machines can be high, their efficiency and ability to produce high-quality parts in bulk make them cost-effective in the long run.
FAQs
Q1: What industries use CNC machining?
CNC machining is used in a variety of industries, including aerospace, automotive, electronics, medical devices, and telecommunications.
Q2: What materials can be machined using CNC?
CNC machines can work with metals, plastics, composites, and even wood, making them highly versatile for different manufacturing needs.
Q3: How precise is CNC machining?
CNC machining can achieve extremely tight tolerances, often within thousandths of an inch, making it suitable for high-precision applications.
Conclusion
The CNC machining process is an essential part of modern manufacturing, transforming raw materials into precise, high-quality components used across various industries. Companies like Wanda-An leverage advanced CNC machining technology to deliver superior products that meet the rigorous demands of the aerospace, automotive, and electronics sectors.
By understanding the CNC machining process from raw material selection to finished product delivery, manufacturers can better appreciate the technology’s role in achieving efficiency, precision, and cost-effectiveness. As industries continue to evolve, CNC machining will remain at the forefront of innovation in manufacturing.
