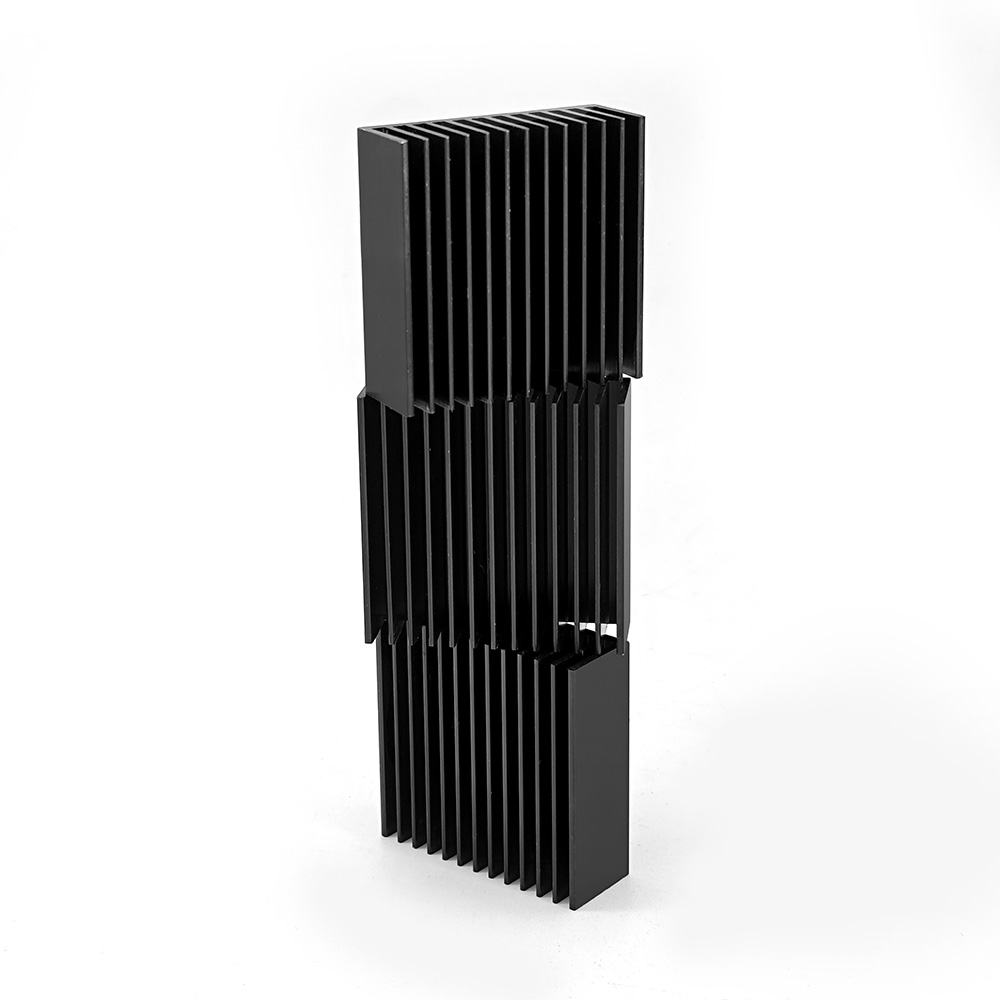

Electronic Heat Sinks for Cooling system

Precision heat sinks are critical components in electronic cooling systems, designed to dissipate heat efficiently from high-power electronic devices such as CPUs, GPUs, power electronics, LED systems, and telecommunications equipment. These heat sinks are fabricated using advanced machining techniques to ensure high thermal conductivity, dimensional accuracy, and optimal airflow.

Availability:

Quantity:



Inquire Add to Basket

Model:
Heat sink
Brand:
WANDA-AN
Code:
HS-Black-001

Product Description

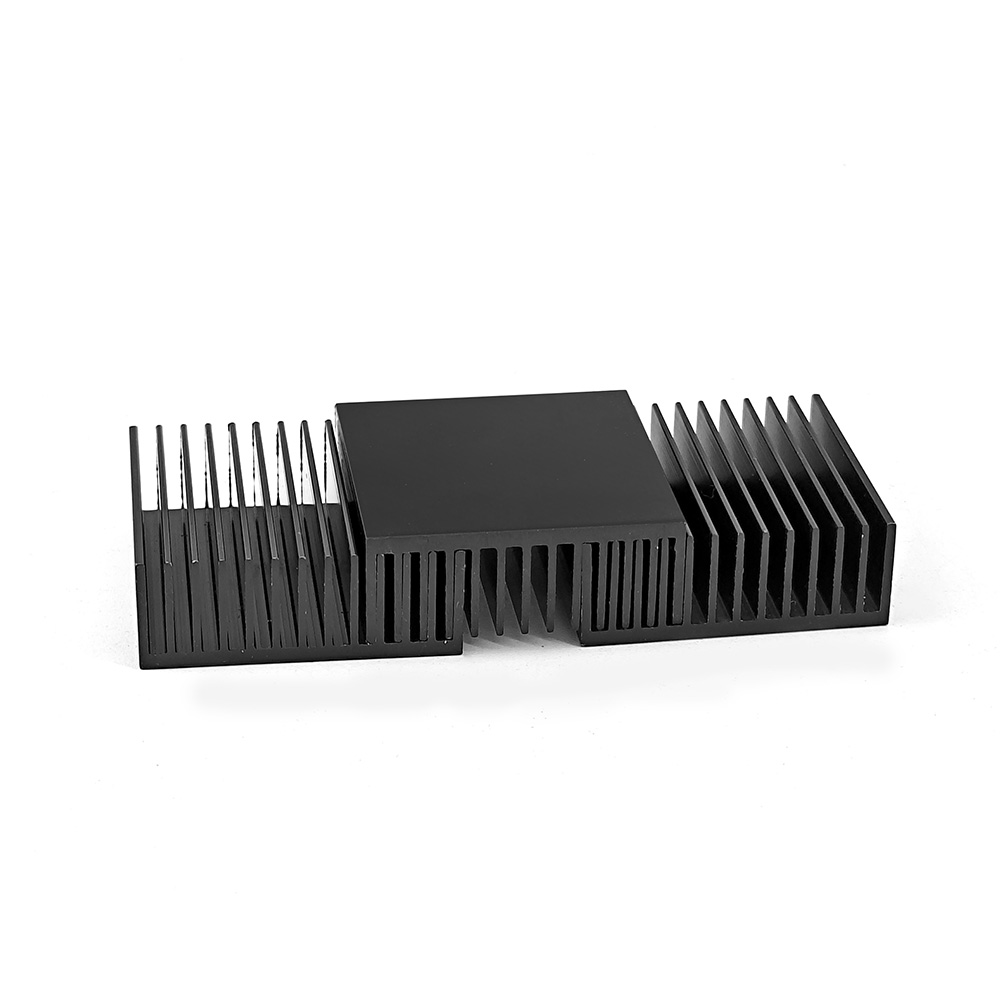

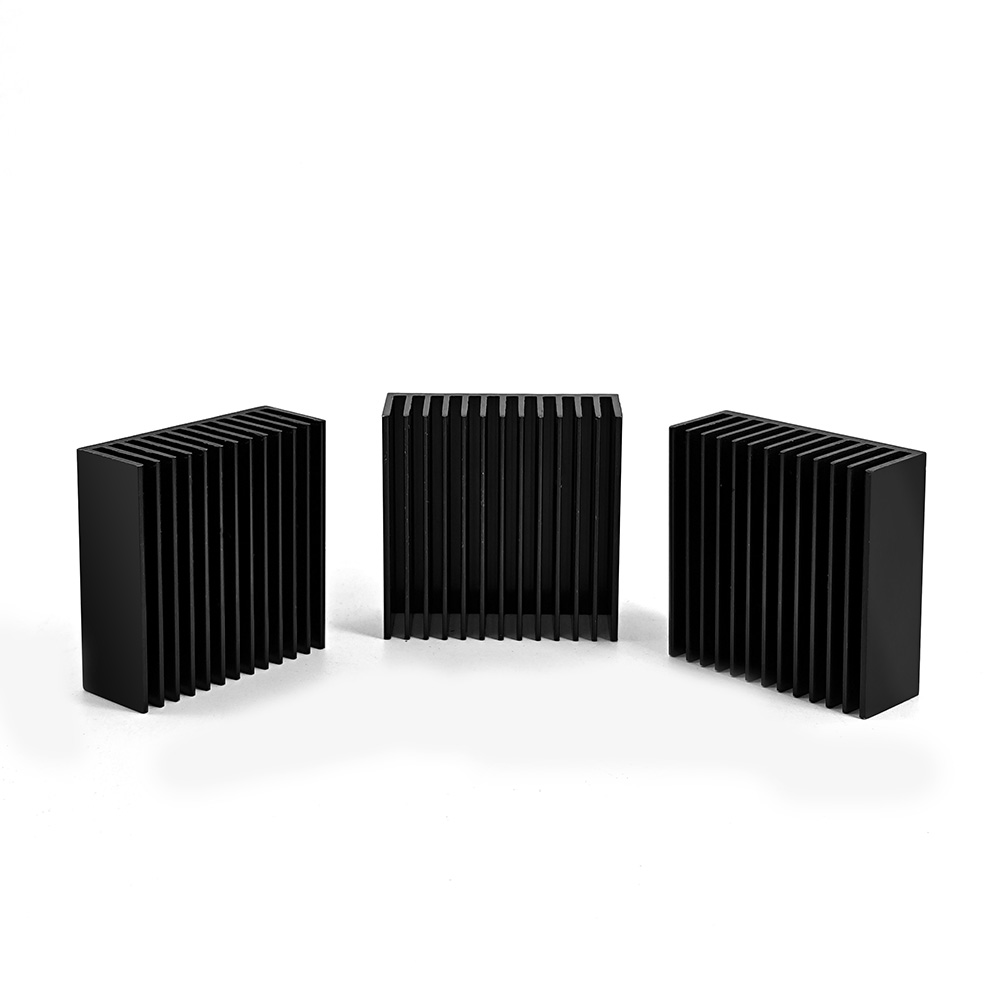

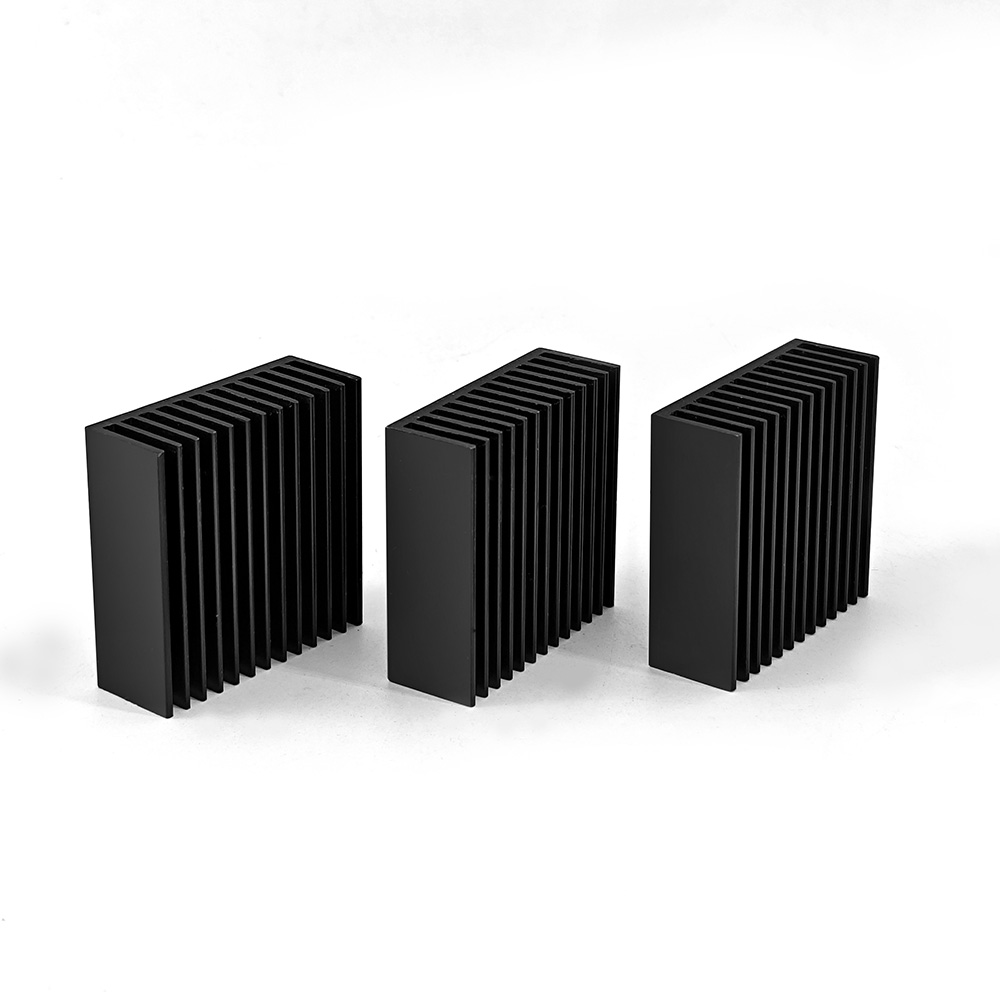

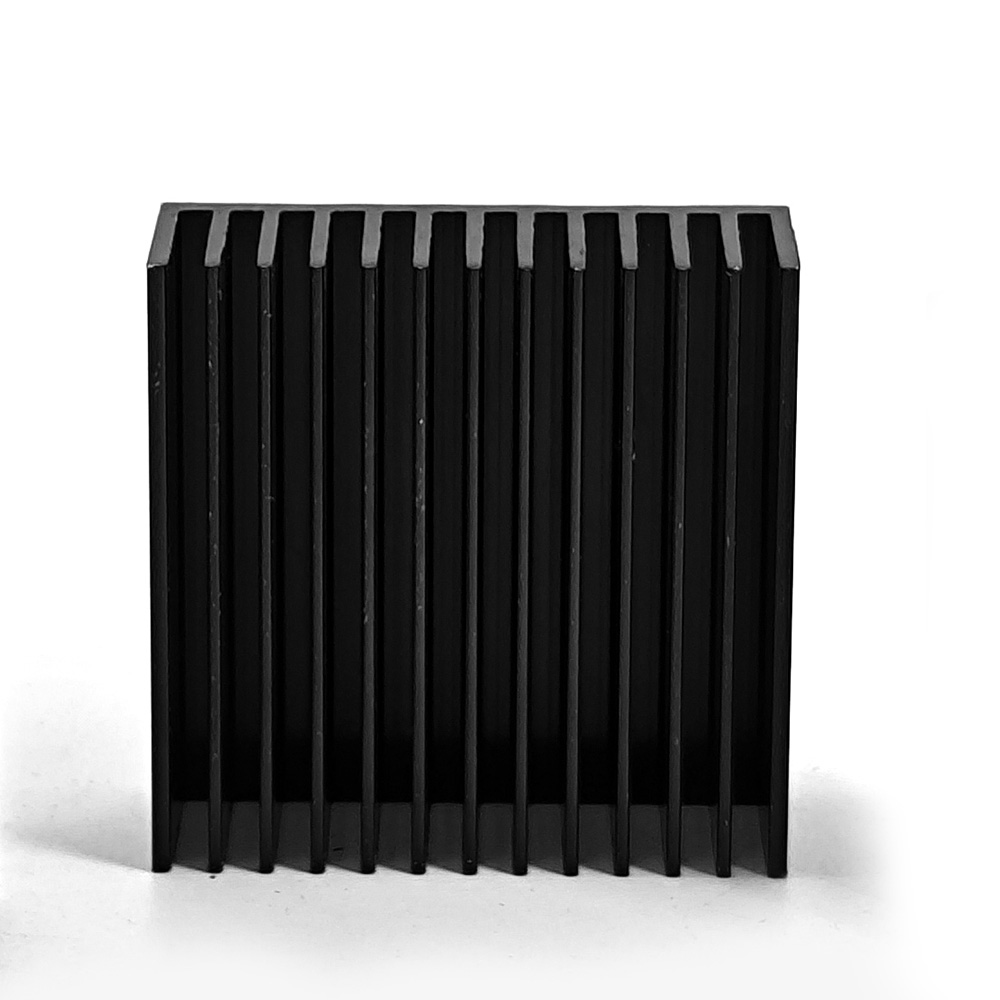

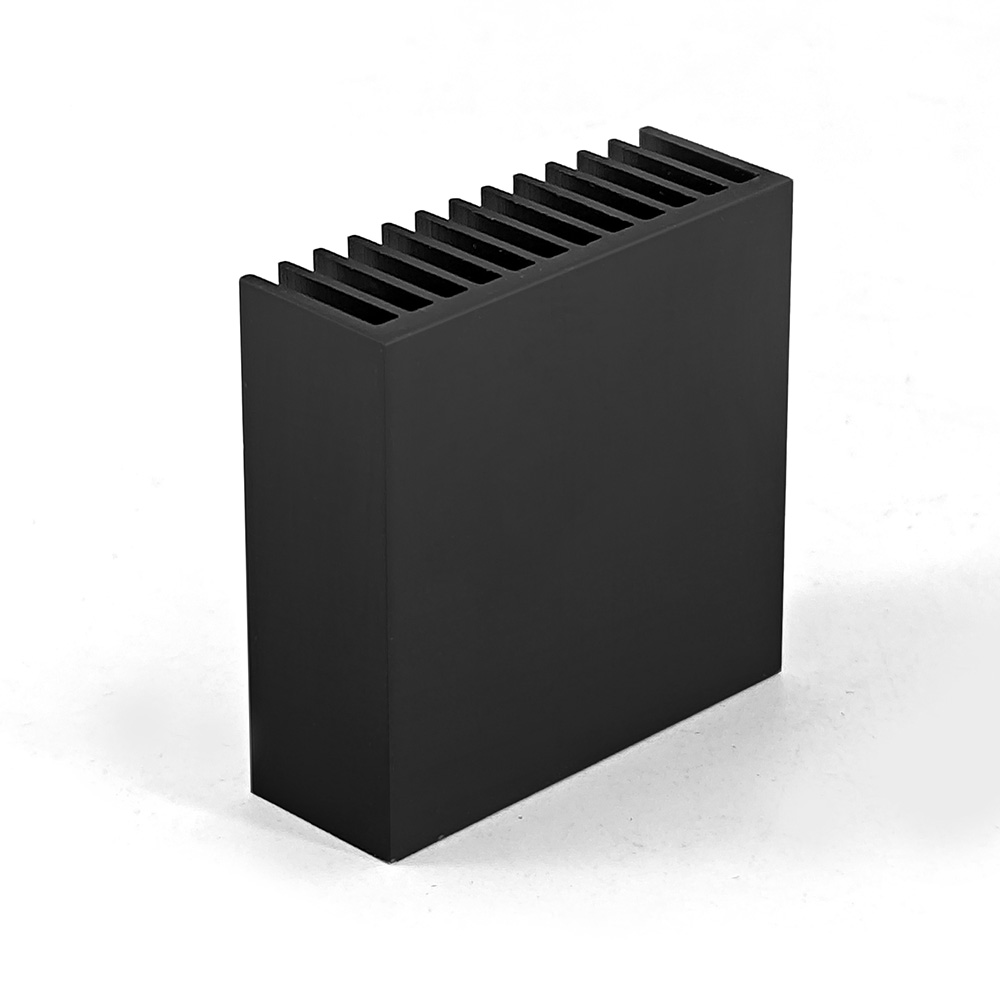

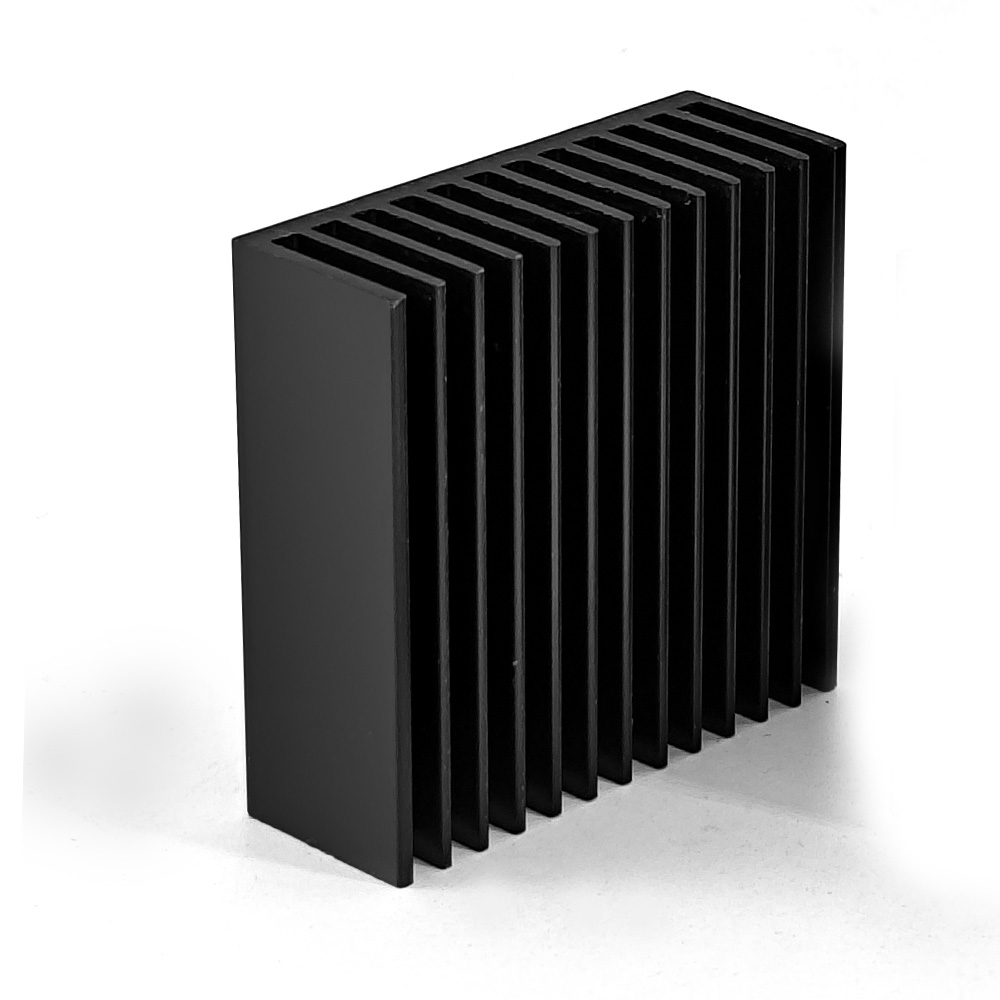

Aluminum Heat Sink

CNC ALUMINUM HEAT SINK

OVERVIEW

Precision heat sinks are critical components in electronic cooling systems, designed to

dissipate heat efficiently from high-power electronic devices such as CPU, GPU,

power electronics,LED systems, and telecommunications equipment. These heat sinks

are fabricated using advanced machining techniques to ensure high thermal conductivity,

dimensional accuracy, and optimal airflow.

And the performance of an aluminum heat sink depends on several factors, including material properties,

design, airflow conditions, and application requirements.

The best heat sink types for electronic cooling depend on power dissipation, space constraints, airflow, and cost.

such as the Skived Fin Heat Sinks,Vapor Chamber Heat Sinks,Pin-Fin Heat Sinks,etc.

Key Features of Precision Heat Sinks

High Thermal Conductivity:Made from materials like aluminum (6061, 6063)

or copper (C110) for efficient heat transfer.

Custom Fin Designs:Optimized fin geometry (straight, pin-fin, flared) for

enhanced surface area and cooling performance.

Lightweight & Durable:Machined aluminum offers a good strength-to-weight ratio,

while copper provides superior heat dissipation.

Precision Machining:CNC milling, extrusion, or die-casting ensures tight

tolerances (±0.05mm) for perfect fitment.

Surface Treatments:Anodizing (for corrosion resistance) or nickel plating

(for improved solderability in copper heat sinks).

Compatibility:Designed for forced-air (fans) or passive cooling systems.

Manufacturing & Processing Methods

CNC Machining:High-precision milling/lathing for complex geometries and custom shapes.

Extrusion:Cost-effective for high-volume production of standard aluminum heat sinks.

Die Casting:Suitable for intricate designs with good thermal properties.

Bonded Fin Technology:Combines separate fins with a base plate for high-performance cooling.

Skiving:Thin, high-density fins cut from a solid block for improved heat dissipation.

Additive Manufacturing (3D Printing):Used for prototyping or complex, topology-optimized designs.

Applications

Consumer Electronics:Laptops, smartphones, gaming consoles.

Telecom & Networking:5G base stations, routers, switches.

Automotive & EV:Battery cooling, power inverters, LED headlights.

Industrial Electronics:Motor drives, power supplies, IGBT modules.

Aerospace & Defense:Avionics cooling, radar systems.

Medical Devices:Imaging equipment, high-power laser systems.

Heat sink 1000 (1)

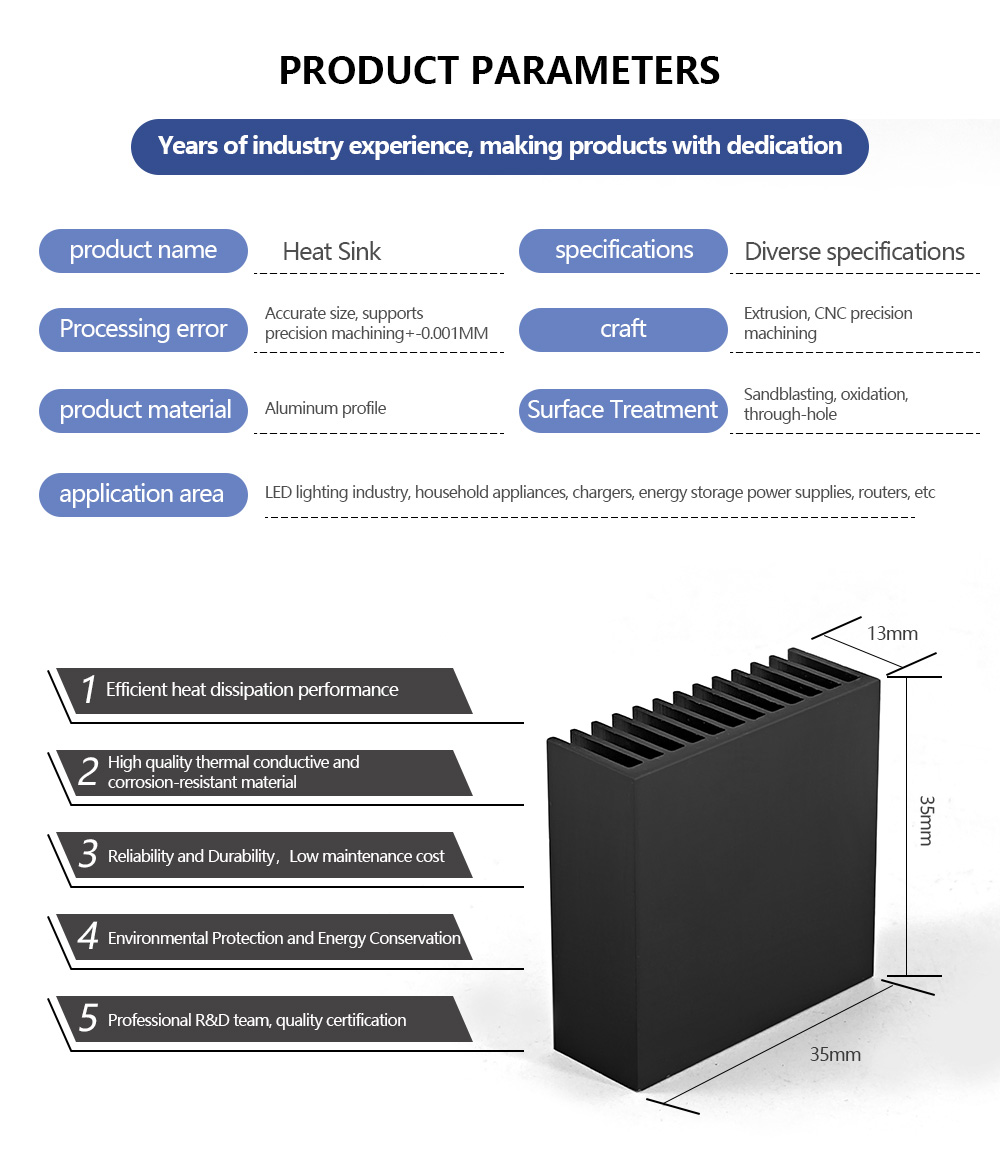

Parameter	Aluminum Heat Sink	Copper Heat Sink
Material	6061/6063 Al	C110 Copper
Thermal Conductivity	160-180 W/mK	385 W/mK
Density	2.7 g/cm³	8.96 g/cm³
Max Operating Temp	~200°C	~300°C
Surface Finish	Anodized (Black/Color)	Nickel Plated
Tolerance	±0.05mm – ±0.1mm	±0.05mm – ±0.1mm
