Custom U-Shaped Mounting Bracket
Wanda-an was founded in 2001, focusing on CNC machining and sheet metal fabrication services for over 20 years. Our products enjoy great popularity among European and American markets.
Structure and Function

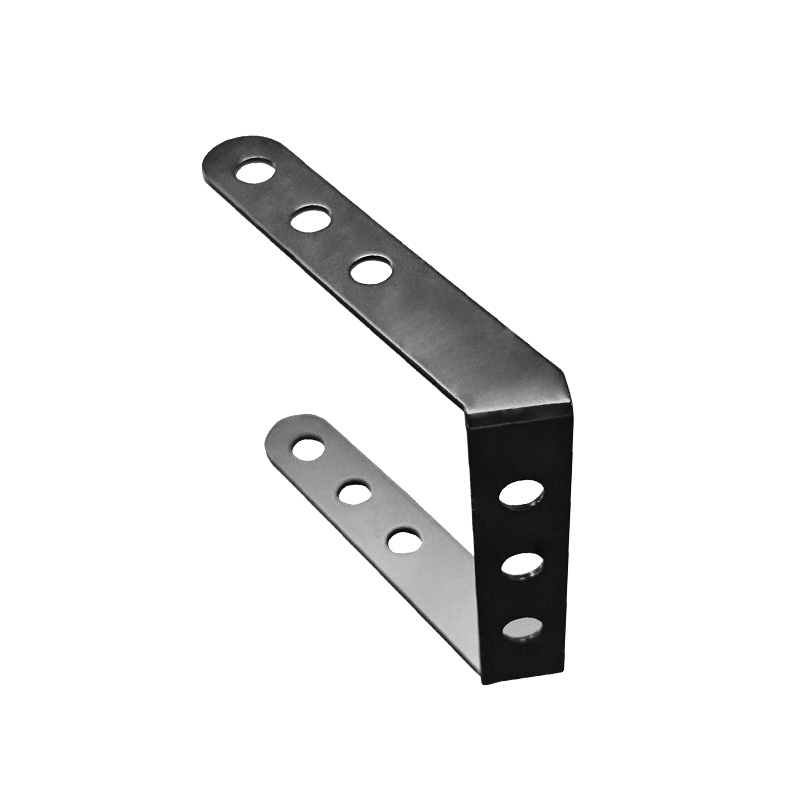

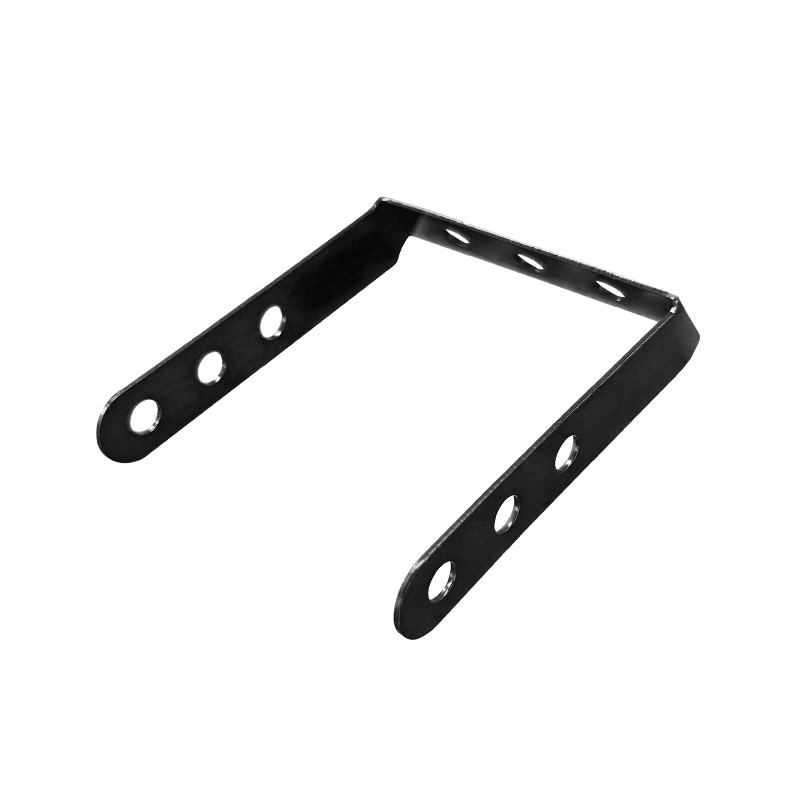

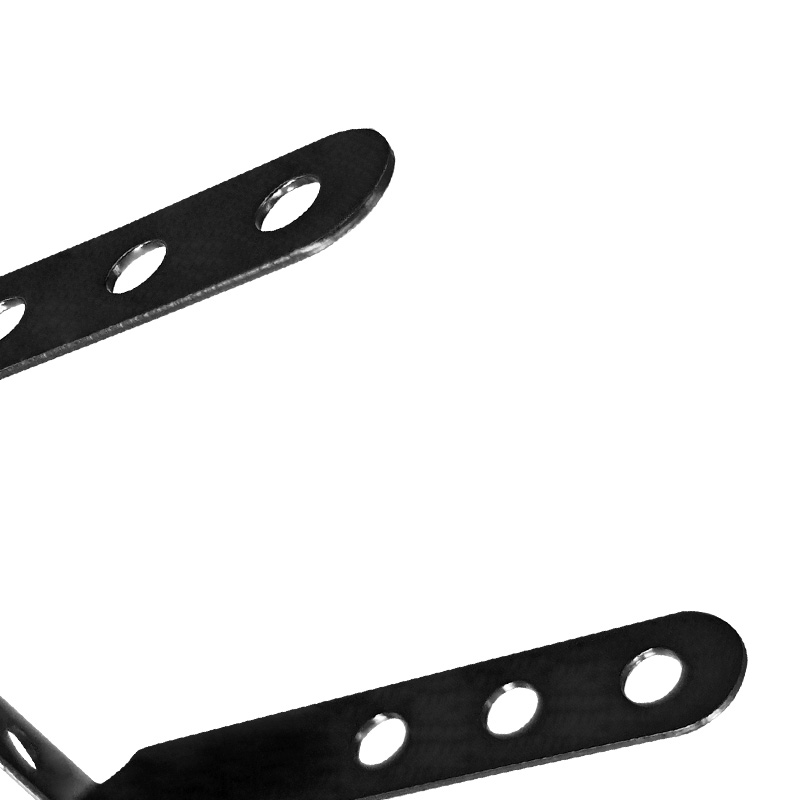

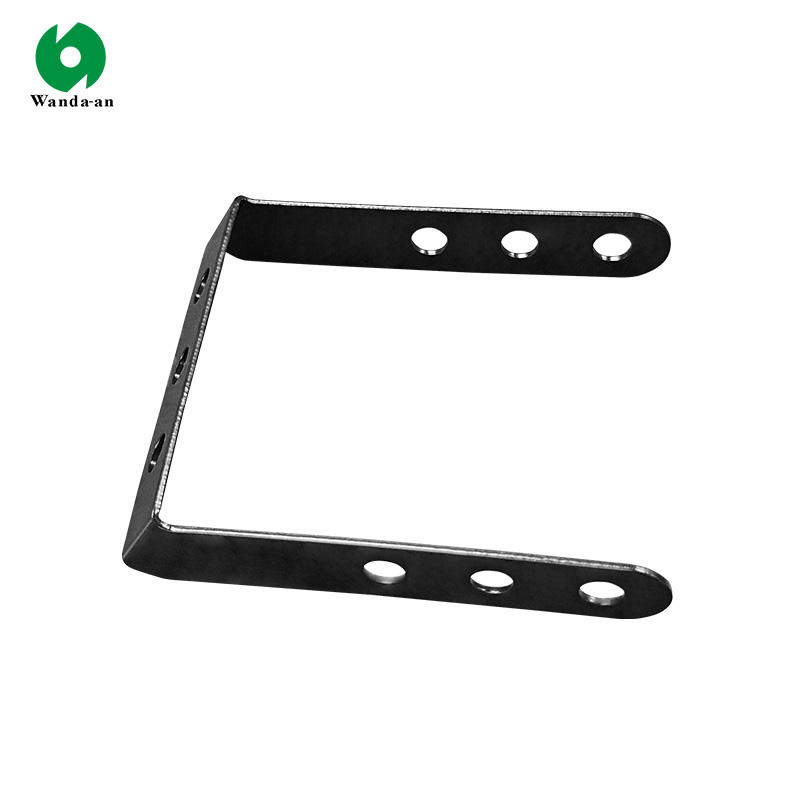

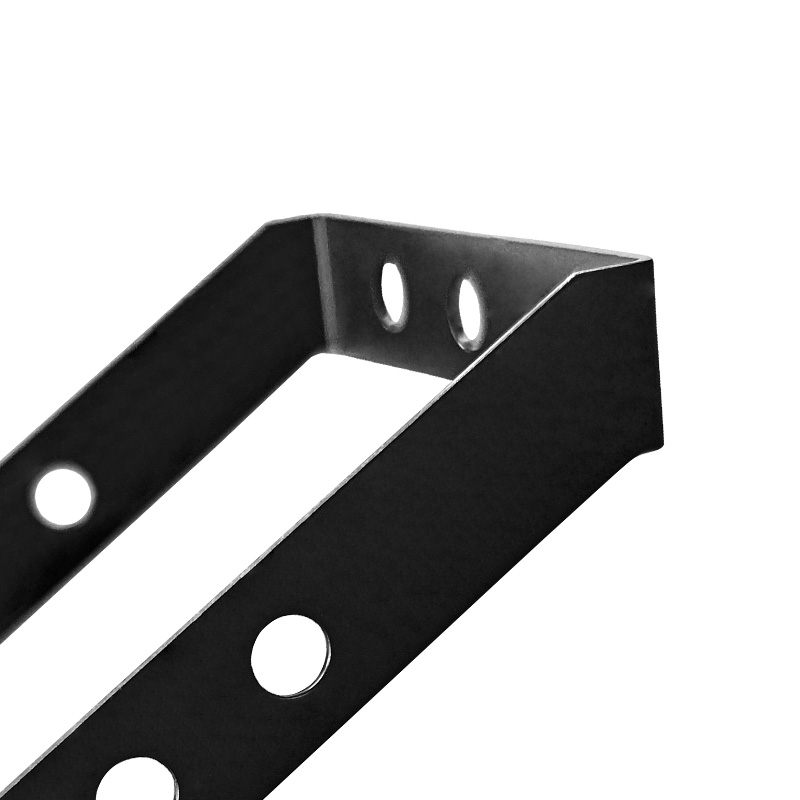

Form: U-shaped, with multiple uniform holes at both ends, made of thickened metal (such as galvanized steel or stainless steel), and treated with rust prevention on the surface.
Function: Assembled between the chassis hanging ear and the cabinet square hole strip, fixed with screws to adjust the relative position of the equipment and the cabinet square hole strip, ensuring installation stability and alignment accuracy.
Specifications and Applications

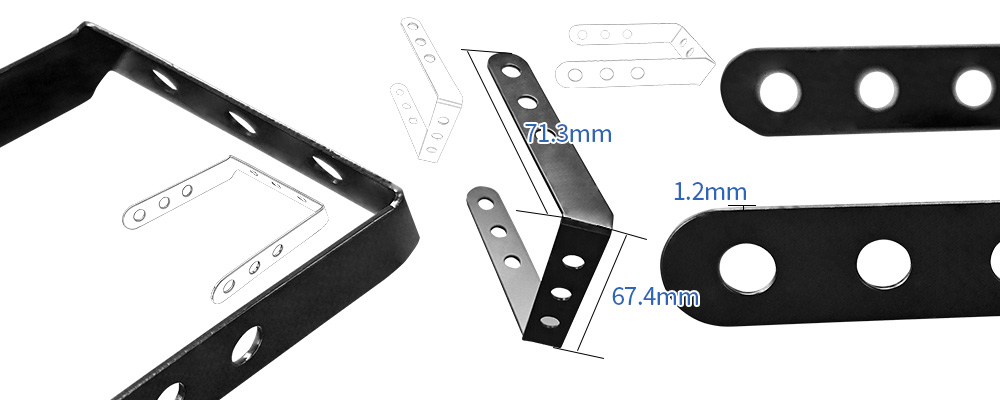

Specifications: Divided into three types based on width: 25mm, 50mm, and 75mm, suitable for different cabinet square hole spacing. The equipment accessory package usually includes a pair of brackets for each specification.
Installation: It needs to be used in conjunction with an adjustable slide. First, align the bottom edge of the slide with the integer U scale of the square hole bar. After inserting the positioning pin, use M6 screws to fix the bracket to the slide, ensuring horizontal installation to avoid equipment tilting.
Scenario: Widely used in server cabinets, network equipment chassis, and other scenarios, it is a commonly used hardware accessory for equipment installation in data centers and communication equipment rooms.
Product details:
| Material | Stainless steel, aluminum, copper, etc. |
| Processing | Laser cutting, stamping, bending, punching, welding, etc. |
| Size | Customization |
| Surface Treatment | Zinc-plated, anodized, customized |
| Application | Furniture, server cabinet, data center, communication equipment rooms, etc. |
You could provide 2D/3D drawing or send your sample to our factory, then we can make sample according to your document.
We are a factory.
Yes, we can provide you sample before mass production.
We have the professional QC department to gurantee the quality.
