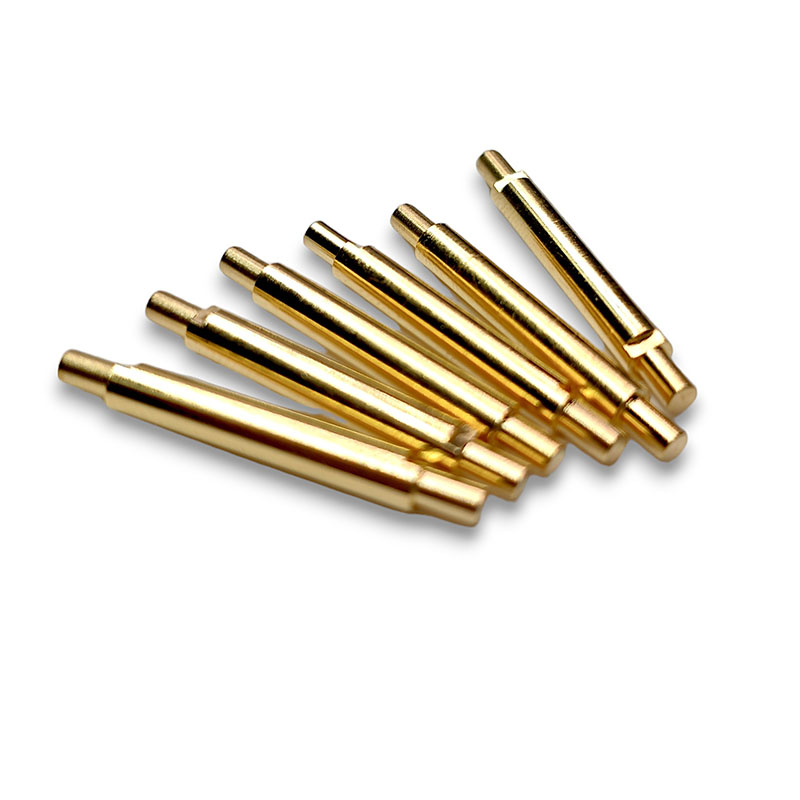

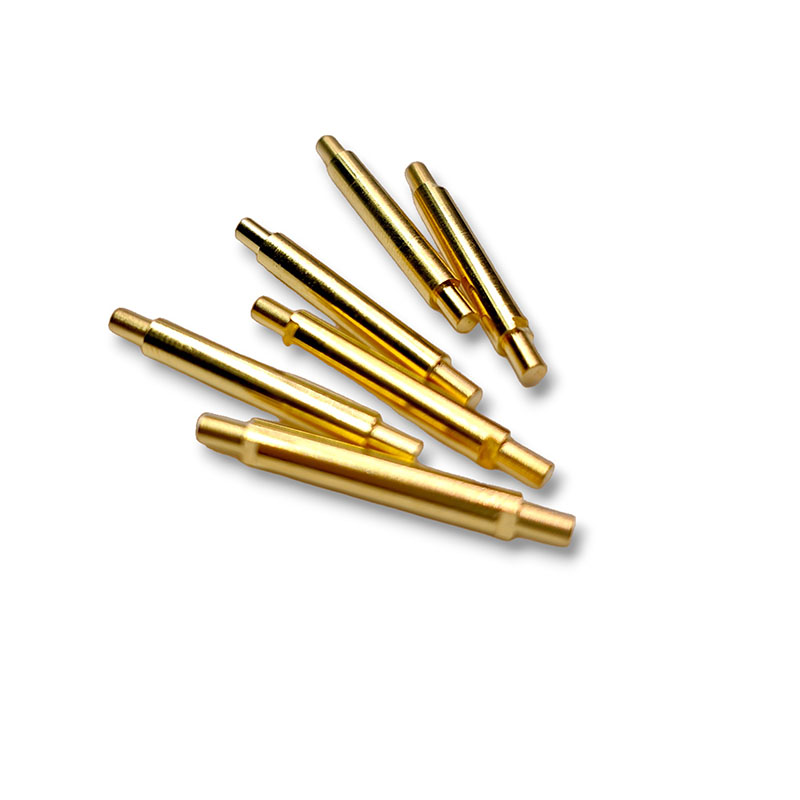

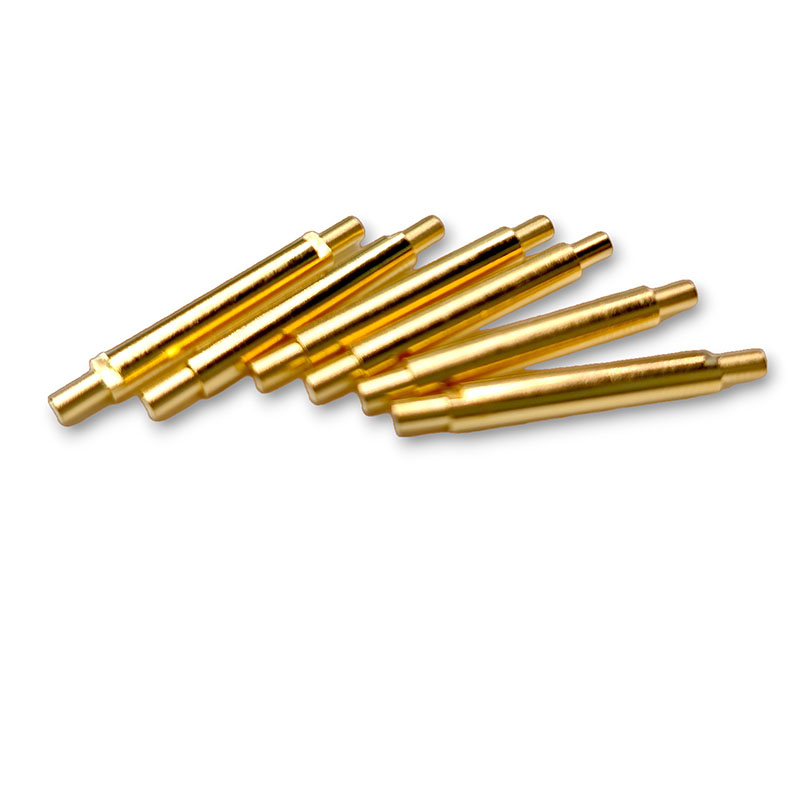

THE POSITIONING PIN

DEFINITION:

A positioning pin is a mechanical component used to accurately align and secure two or more parts during assembly or machining processes. It ensures precise placement and prevents movement, contributing to the overall stability and quality of the final product. Positioning pins come in various types and sizes, tailored for specific applications in manufacturing, automotive, and tooling industries.

FEATURES:

Precision: Designed to provide accurate alignment and location of components.

Durability: Often made from strong materials like steel or aluminum to withstand wear and tear.

Versatility: Available in various sizes and shapes to suit different applications.

Ease of Use: Many are designed for simple insertion and removal, sometimes featuring spring mechanisms.

Stability: Helps prevent movement during assembly, ensuring reliable connections.

Resistance: Some pins may have coatings for corrosion resistance or additional protection.

PURPOSE

Alignment: Ensures that parts fit together precisely.

Stability: Prevents movement during assembly or operation.

Reusability: Can be used multiple times for different assemblies.

APPLICATIONS:

Manufacturing: Used in jigs and fixtures to align and secure parts during machining processes.

Automotive Assembly: Ensures precise alignment of components like engines and chassis on assembly lines.

Tooling: Essential in molds and dies to maintain correct positioning of parts during production.

Aerospace: Utilized for accurate alignment in the assembly of complex components and systems.

Electronics: Helps align and secure circuit boards and components in assembly fixtures.

Woodworking: Dowel pins act as positioning aids to align joints and components in furniture construction.

Robotics: Used in robotic arms and automated systems for precise positioning of tools and parts.

TYPES:

Fixed Positioning Pins:

Permanently installed to maintain consistent alignment in assembly.

Removable Positioning Pins:

Can be inserted and removed as needed, often used in jigs and fixtures.

Spring-Loaded Positioning Pins:

Feature a spring mechanism that allows for easy insertion and removal while providing secure holding.

Dowel Pins:

Cylindrical pins used primarily for aligning and securing components in woodworking or metalworking.

Guide Pins:

Help direct the movement of components, ensuring proper alignment during assembly.

Locking Pins:

Equipped with mechanisms to secure the pin in place, preventing accidental removal.

Tapered Pins:

Have a conical shape that provides a tight fit and helps with alignment when inserted into matching holes.

Flat Pins:

Feature a flat surface for easy alignment, often used in applications requiring surface mounting.
