| Quantity: | |
|---|---|

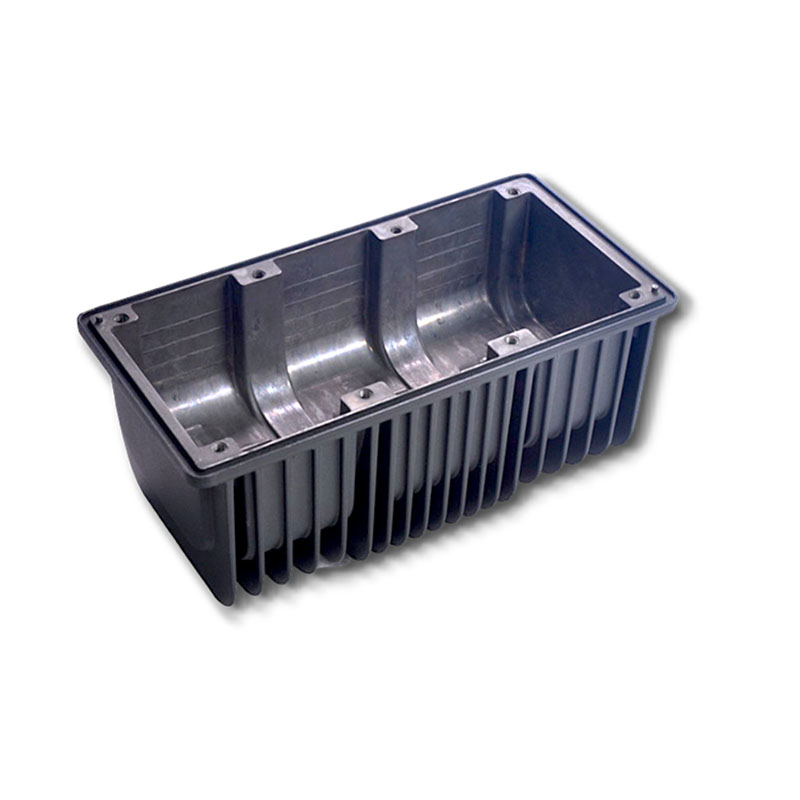

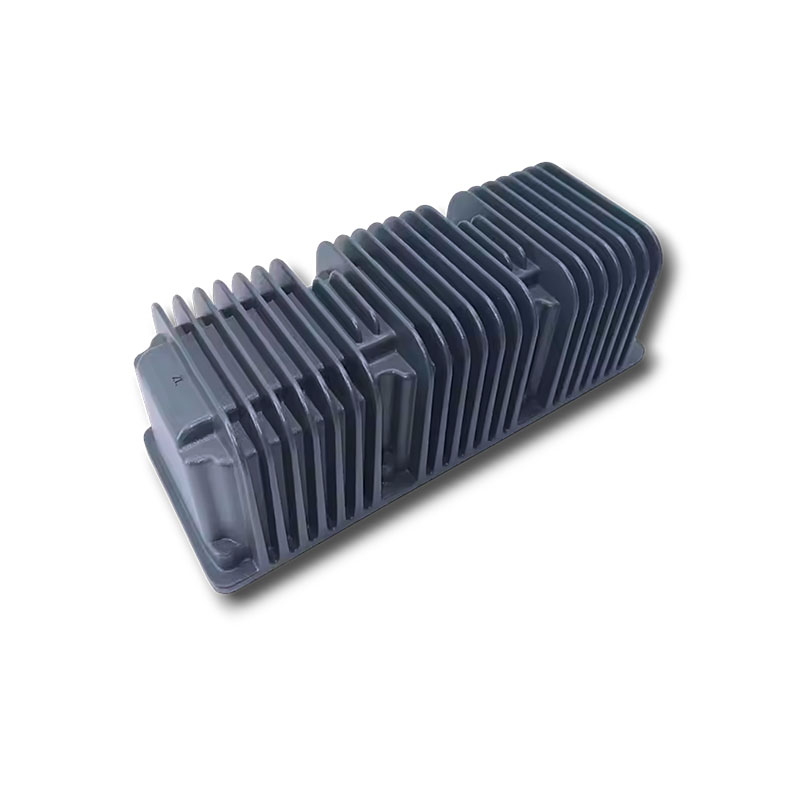

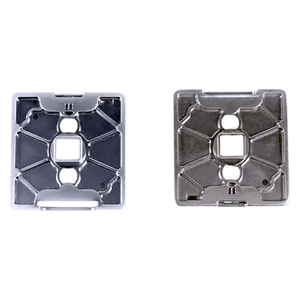

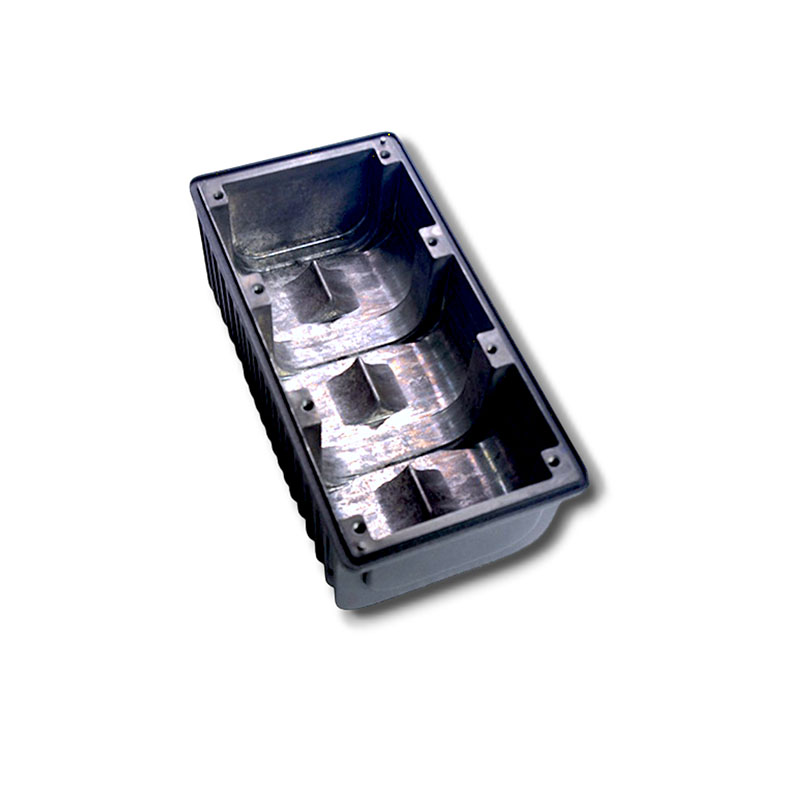

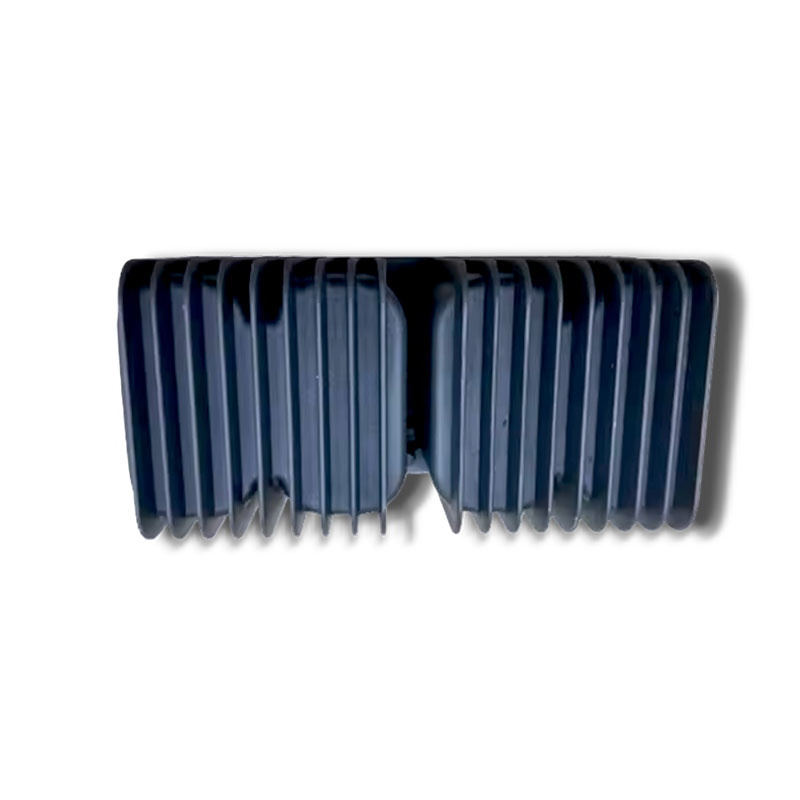

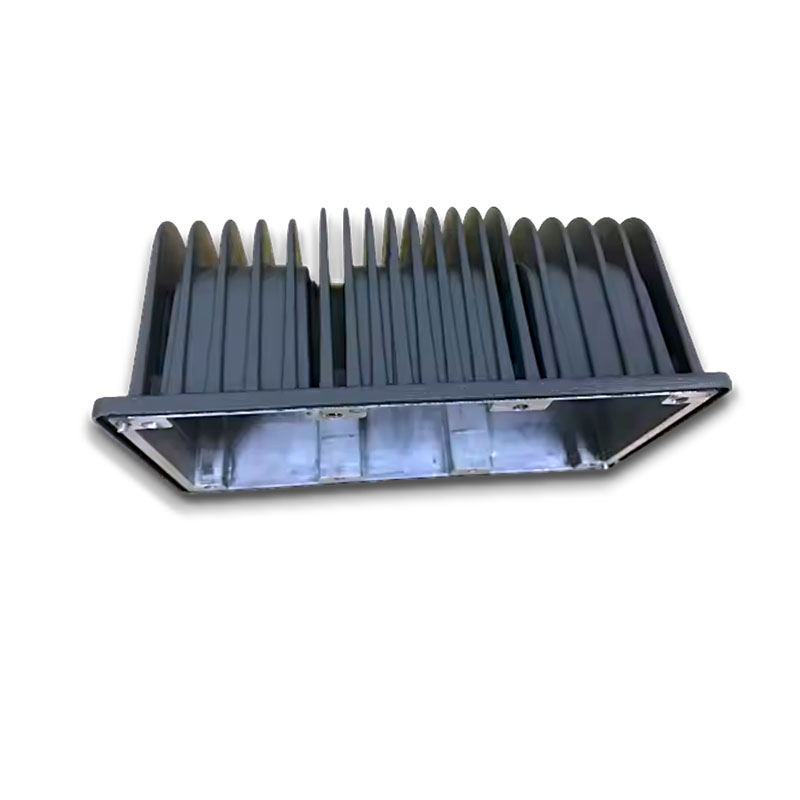

DIE CASTING PART
WANDA-AN
| Key Features | |
| Parameter | Details |
| Materials | Aluminum (A380, ADC12), Zinc (Zamak 3/5), Magnesium (AZ91D). |
| Tolerances | ±0.1 mm (standard), ±0.05 mm (with machining). |
| Weight Range | Few grams to 50+ kg (depends on material & machine size). |
| Surface Finish | As-cast, Powder Coating, Anodizing (Al), Plating (Zn). |
| Strength | High strength-to-weight ratio; suitable for structural parts. |
3. Applications
Automotive: Engine brackets, transmission housings, e-motor components.
Electronics: Heat sinks, connector housings, 5G antenna parts.
Industrial: Pump housings, valve bodies, hydraulic components.
Consumer Goods: Appliance frames, power tool housings.
4. Processing Steps
Die Casting:
Molten metal injected at 100–1,000 MPa pressure.
Rapid cooling (~seconds) for solidification.
Trimming: Removal of excess material (flash, gates).
CNC Machining: Drilling, tapping, milling critical features.
Surface Treatment: Anodizing, painting, or chromating.
QC Inspection: CMM, X-ray (for porosity checks).
| Parameter | Requirement |
| Material | Aluminum A380 (or specify alloy) |
| Dimensions | [L x W x H] ±0.1 mm (attach CAD) |
| Weight | [e.g., 250g ±5%] |
| Tolerances | Critical holes: ±0.05 mm |
| Surface Finish | Anodized (Black), Ra ≤1.6 μm |
| Quantity | 5,000 pcs/year (batch size: 500) |
| Certifications | ISO 9001, IATF 16949 (if automotive) |
