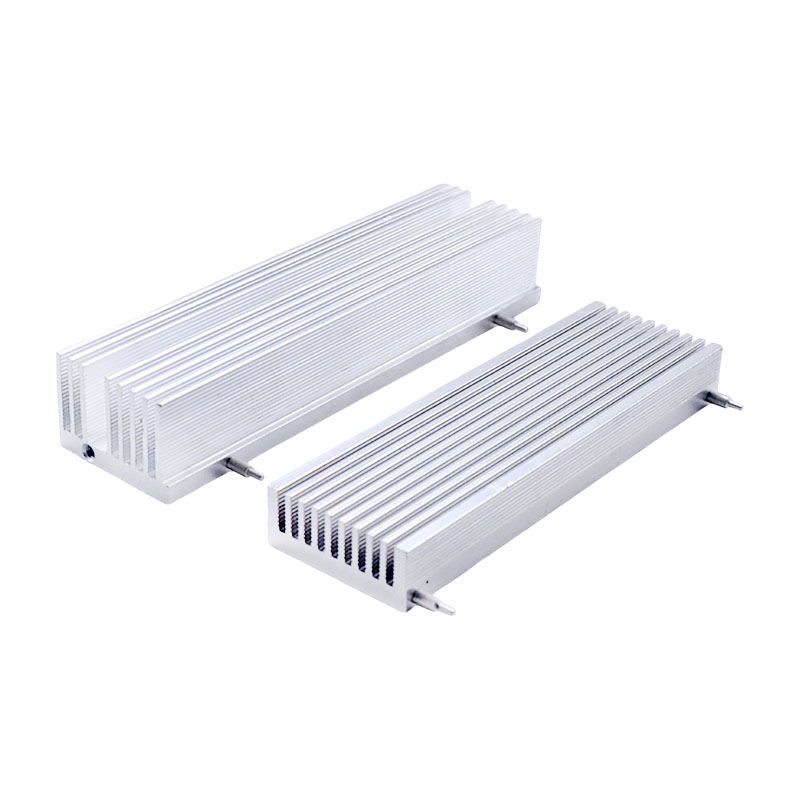

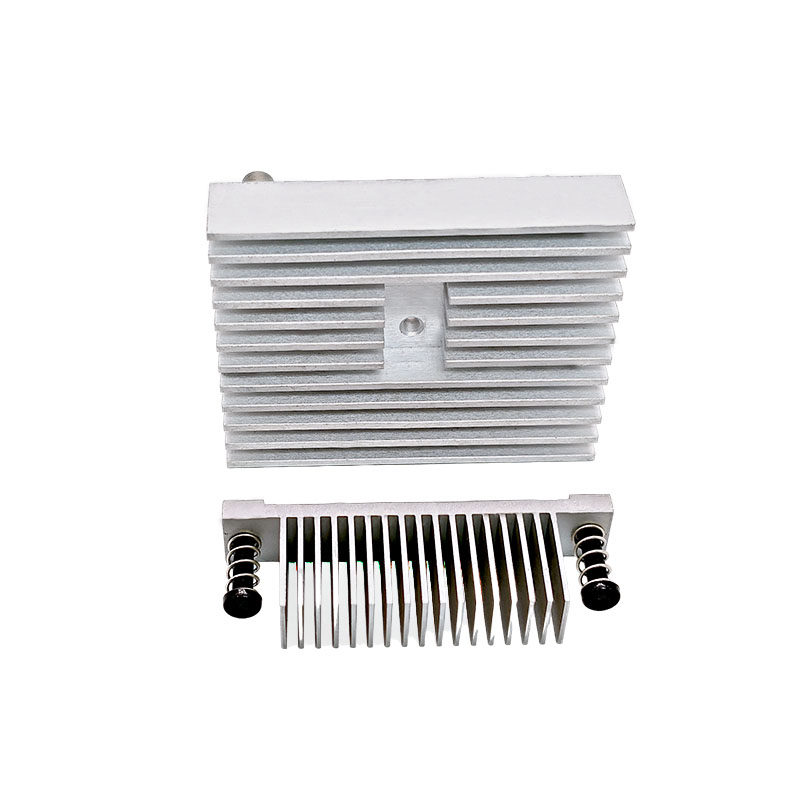

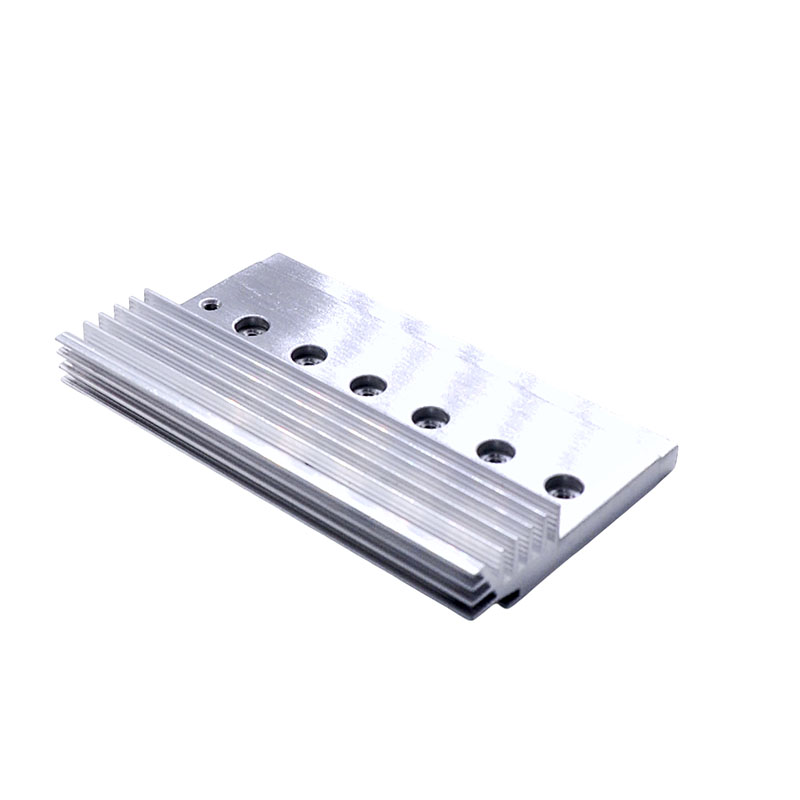

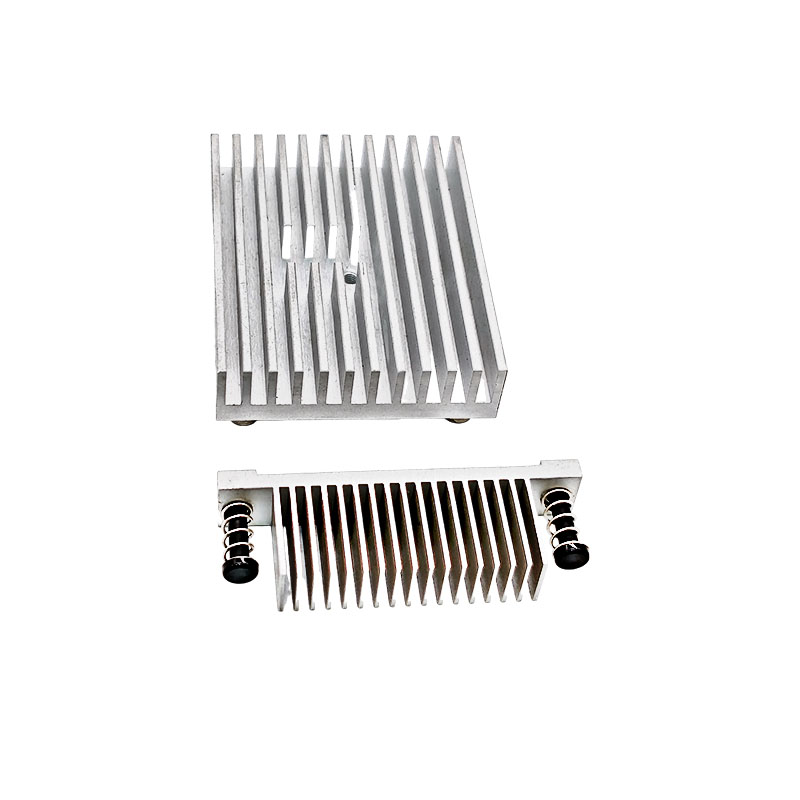

Manufacture Aluminum Radiator Fin Machining Electroplating for Cooling system

1. Computers and Electronics
CPU (Central Processing Units):Heat sink are mounted on CPU to dissipate heat generated during processing,preventing overheating and maintaining optimal performance.
GPU (Graphics Processing Units):Similar to CPU,GPU produce significant heat,and heat sink help manage this heat to avoid thermal throttling.
Power Transistors and Regulators:These components generate heat during operation,and heat sink help in maintaining stable performance and preventing damage.
2. LED Lighting
High-Power LED:High-intensity LED generate substantial heat, and heat sink are used to ensure that they operate efficiently and have a longer lifespan by keeping temperatures within safe limits.
3. Power Electronics
Inverters and Converters:Power electronics in devices like solar inverters or power supplies often use heat sinks to manage the heat produced during the conversion of electrical power.
4. Telecommunications Equipment
Base Stations and Signal Amplifiers:Heat sink help in cooling equipment that operates continuously and generates heat,ensuring reliable performance and longevity.
5. Automotive Industry
Engine Control Units (ECU):Modern vehicles use electronic control units that can produce heat, and heat sink help in managing this heat to ensure reliable operation.
6. Consumer Electronics
Home Appliances:Devices such as refrigerators,air conditioners,and other appliances with electronic controls often use heat sink to manage heat and improve efficiency.
7. Industrial Equipment
Motors and Drives:Industrial motors and variable frequency drives (VFD) use heat sink to dissipate heat, ensuring smooth operation and preventing overheating.
8. Renewable Energy Systems
Solar Panels:Heat sink can be used in some solar panel systems to help maintain optimal performance by managing the heat generated.

1. Material Selection
Common Materials: Aluminum and copper are the most commonly used materials for heat sink due to their excellent thermal conductivity. Aluminum is preferred for its cost-effectiveness and ease of machining, while copper is chosen for higher thermal conductivity.
Alloy Choice: For aluminum heat sink, alloys like 6061 and 1050 are frequently used due to their good machine ability and thermal properties.
2. Design and Prototyping
Design: Use CAD (Computer-Aided Design) software to create detailed designs, including dimensions, fin layout, and mounting features. Ensure the design includes sufficient surface area for heat dissipation and takes into account the specific application requirements.
Prototyping: For complex designs, prototyping may be done using 3D printing or CNC machining to test the fit and performance before full-scale production.
3. Machining Processes
CNC Milling: This is a common method for creating heat sink. CNC (Computer Numerical Control) milling machines can cut and shape the heat sink to precise dimensions. Fins, channels, and other features are machined using various cutting tools.
Process: Start with a block of material, then use a CNC mill to remove excess material, creating the fin structure and any mounting holes or features.
Extrusion: For many heat sink, especially those with a uniform cross-section, extrusion is a popular method. The material is heated and forced through a die to create the desired shape.
Process: The aluminum or copper is pushed through a mold to form the heat sink profile. After extrusion, the heat sink may be cut to length and further machined if needed.
Casting: For some heat sink, especially those with complex geometries, casting is used. Molten metal is poured into a mold and allowed to solidify.
Process: Create a mold of the heat sink design, pour the molten material into the mold, and let it cool and solidify. The cast part is then machined to achieve the final dimensions and surface finish.
Finishing: After machining, heat sink often undergo additional finishing processes to improve surface quality and performance.
Anodizing: For aluminum heat sink, anodizing creates a protective oxide layer that improves corrosion resistance and thermal performance.
Polishing: Both aluminum and copper heat sink may be polished to reduce thermal contact resistance and enhance heat transfer.
Thermal Interface Material (TIM) Application: In some cases, a thermal interface material is applied to the heat sink surface to improve heat transfer to the component it is cooling.
4. Quality Control
Dimensional Inspection: Ensure all dimensions and tolerances are met using tools like micrometers and calipers.
Thermal Performance Testing: Verify that the heat sink meets performance specifications by conducting thermal tests to measure heat dissipation efficiency.
5. Assembly and Integration
Mounting: heat sink are often attached to components using thermal paste, adhesive, or mechanical fasteners. Ensure that the attachment method provides good thermal contact.
Integration: For custom heat sink, ensure that the final product fits correctly into the intended system or device.
