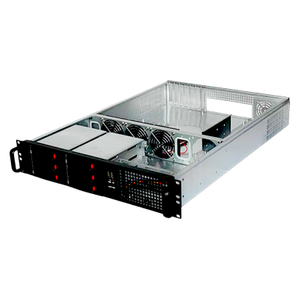

CHASSIS ENCLOSURE
WANDA-AN
HCE-AL010-0001
ALUMINUM HOST CHASSIS ENCLOSURE
ALUMINUM ALLOYS:
6061:Commonly used for its good mechanical properties and weld ability. Suitable for structural applications.
5052:Known for its excellent corrosion resistance and form ability,making it great for enclosures.
7075:Offers high strength,often used in aerospace applications,but less common for enclosures due to cost.
ALUMINUM SHEETS:
Thickness typically ranges from 1.5mm to 3mm,depending on the required durability and weight considerations.
Extrusions:
Used for creating frames or structural components. They can be customized for specific designs.
MANUFACTURING PROCESS
CUTTING:
Methods include laser cutting,water jet cutting,or CNC machining to achieve precise dimensions.

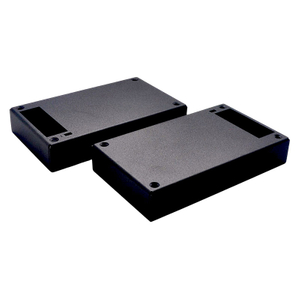

STAMPING:
The machine uses a punch and die to apply pressure to the sheet,deforming it into the desired shape.This can include processes like bending, piercing, and blanking.
RIVETING AND PRESSURE FIXING
Riveting is a mechanical fastening technique,Here it will uses the Metal pin (rivet) to join two or more pieces of Aluminum sheet.
Pressure fixing (also known as press-fit or interference fit) involves joining Aluminum Sheet by applying pressure to fit them together tightly without additional fasteners.
SURFACE TREATMENT:
Anodizing:Enhances corrosion resistance and allows for color finishing.Powder Coating:Provides a durable finish and can add aesthetic value.
CONSIDERATIONS
Weight:Aluminum is lightweight,making it ideal for portable applications.
Thermal Management:Consider incorporating ventilation or heat sinks if the enclosure will house heat-generating components.
Design:Ensure the design allows for easy access to internal components and proper cable management.
APPLICATIONS
Used in various industries,including IT equipment,telecommunications,industrial controls,and consumer electronics.
KEY FUNCTIONS
Protection:Shields internal components from physical damage, dust, and debris.
Cooling:Facilitates airflow to keep components cool, often with fans and vents.
Structure:Provides a framework for mounting and organizing components like the motherboard, power supply,and drives.
Aesthetics:Available in various designs and colors, allowing users to choose according to their preferences.
THE TYPES OF THE COMPUTER CASE
Tower Case:
Full Tower: Large, can accommodate multiple GPUs and extensive cooling options.
Mid Tower: More compact, suitable for most standard builds.
Mini Tower: Smaller, ideal for basic setups.
Desktop Case: Horizontal design, often used for office PCs.
Small Form Factor (SFF): Compact cases designed for limited space, such as HTPCs (Home Theater PCs).
Rugged Cases: Built to withstand harsh environments, often used in industrial applications.
Custom Cases: Users can build their own or modify existing cases for unique configurations.
FEATURES
Compatibility: Ensure the case fits the motherboard size (ATX, Micro-ATX, Mini-ITX, etc.) and has enough space for components.
Cooling Options: Look for adequate airflow, fan mounts, and space for radiators if using liquid cooling.
Drive Bays: Check the number and type of drive bays for HDDs and SSDs.
Expansion Slots: Sufficient PCIe slots for additional graphics cards or expansion cards.
Cable Management: Features that facilitate tidy cable routing.
ALUMINUM CNC MILLING MACHINING PARTS
Aerospace: Aluminum alloy CNC parts are crucial in the aerospace industry due to their high strength-to-weight ratio, used in aircraft structural components, engine parts, etc.
Automotive: In automotive manufacturing, aluminum alloy parts are utilized for lightweight body components, engine parts, and suspension systems, contributing to improved fuel efficiency and performance.
Electronics: Aluminum alloy CNC parts are employed in the production of electronic product casings, heat sinks, brackets, and other components, benefiting from their excellent thermal conductivity and mechanical strength.
Medical Equipment: Precision and corrosion resistance are essential in medical equipment. Aluminum alloy CNC parts are used in manufacturing various structural components and accessories for medical devices.
Marine Industry: Aluminum alloy parts are used in the marine industry for manufacturing ship structures, deck equipment, and marine accessories, owing to their corrosion resistance and excellent machinability.
SPECIFICATION
Product Parameter
1. Precision stamping part,CNC machining part,turned part
2. Tolerance: ± 0. 01 - ± 0.1mm
3. Certificate: ISO 9001
4. Total customer satisfaction
1. General Specifications
Material: High-grade Aluminum Alloy (6061-T6 or 6063-T5)
Surface Treatment:
Anodized (Black/Silver, MIL-A-8625 Type II/III)
Powder Coating (Optional, for corrosion resistance)
Thermal Conductivity: 160–200 W/m·K (depends on alloy)
Operating Temperature: -40°C to +120°C
IP Rating: IP54 (Standard) / IP66 (Optional with gaskets)
| 2. Mechanical Dimensions | ||||
| Model | Dimensions (L×W×H) | Wall Thickness | Weight | Fin Density |
| CC-100A | 200×150×50 mm | 3 mm | 0.8 kg | 12 fins/cm² |
| CC-200B | 300×200×80 mm | 5 mm | 1.5 kg | 15 fins/cm² |
| CC-300C | 400×300×120 mm | 6 mm | 3.2 kg | 20 fins/cm² |
3. Cooling Features
Integrated Heat Sink Design: Extruded fins (height: 10–30 mm) for passive cooling.
Optional Active Cooling:
Mounting slots for fans (40/60/80/120 mm).
Liquid cooling channels (customizable).
EMI Shielding: Conductive gaskets for RF-sensitive applications.
4. Compatibility & Mounting
Internal Mounting: Threaded inserts for PCB/component attachment (M3/M4/M5).
External Mounting: VESA 75/100 or DIN rail compatibility.
Cutouts: Pre-drilled holes for connectors, switches, or ventilation.
5. Electrical & Environmental Ratings
Dielectric Strength: 2.5 kV (isolated designs).
EMC Compliance: EN 61000-6-2 (Immunity), EN 61000-6-4 (Emissions).
Corrosion Resistance: Salt spray tested (500+ hours per ASTM B117).
6. Applications
Electronics: Power supplies, LED drivers, Raspberry Pi/Arduino cases.
Industrial: PLC enclosures, motor controllers.
Telecom: 5G modules, base stations.
Automotive: EV battery management systems.
7. Accessories (Optional)
Fan Kits: 12V/24V DC fans with PWM control.
Thermal Pads/Phase-Change Materials: For improved heat transfer.
Dust Filters: Magnetic or adhesive mesh.
8. Compliance & Certifications
Standards: UL 94V-0 (Flammability), REACH/RoHS.
Customization: Laser engraving, custom logos, or additional ports.
