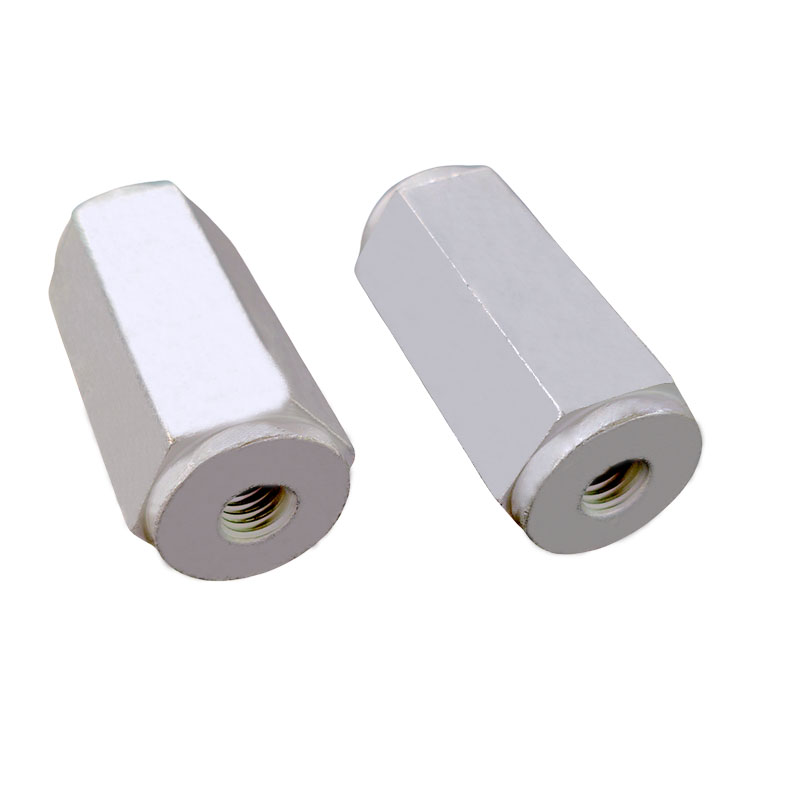

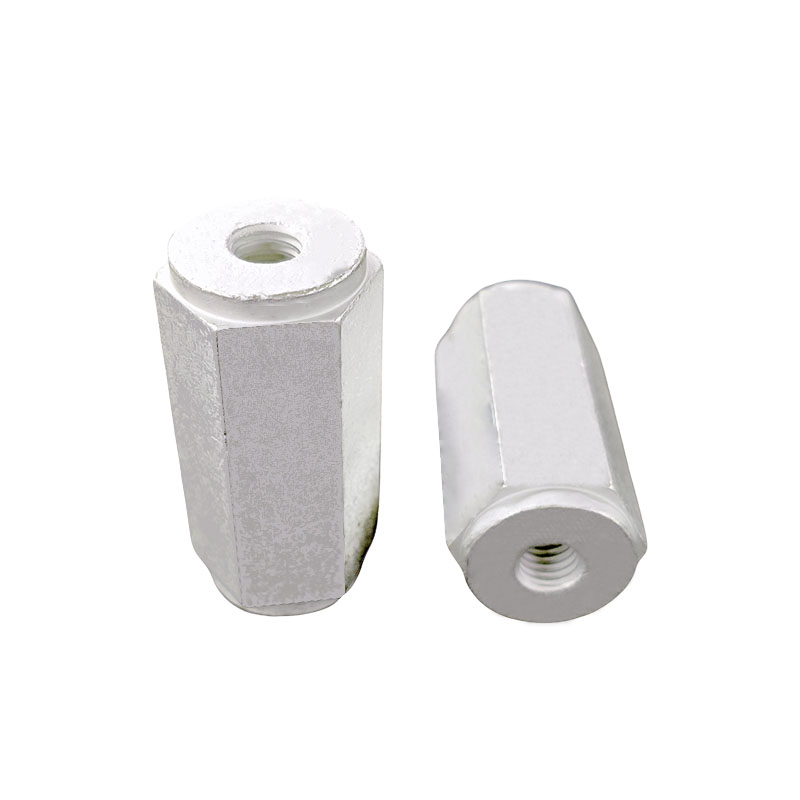

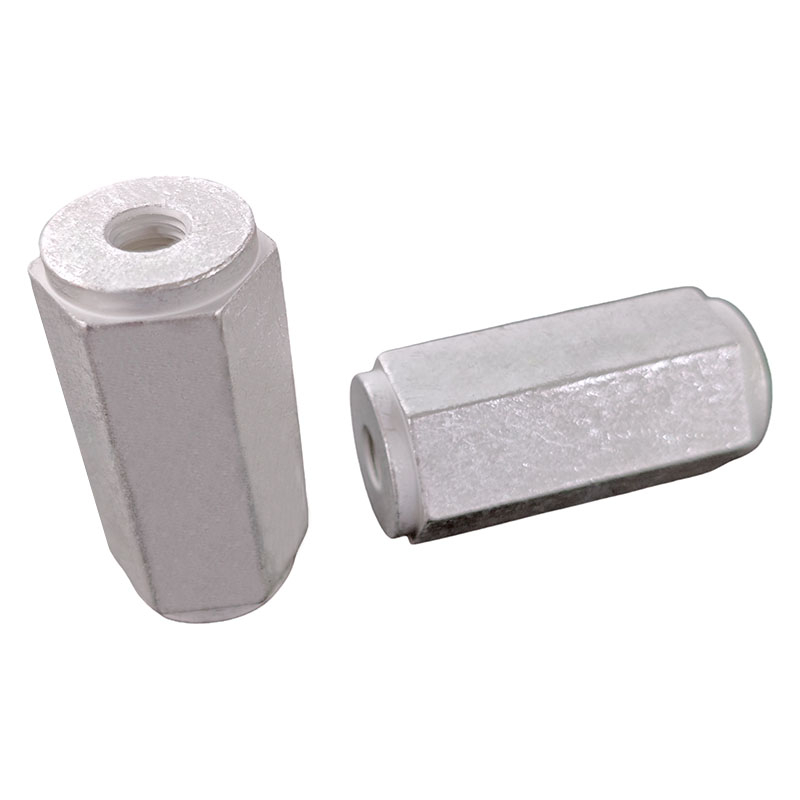

The Internal Thread Nut Stud
WANDA-AN
TNS-SS010-001

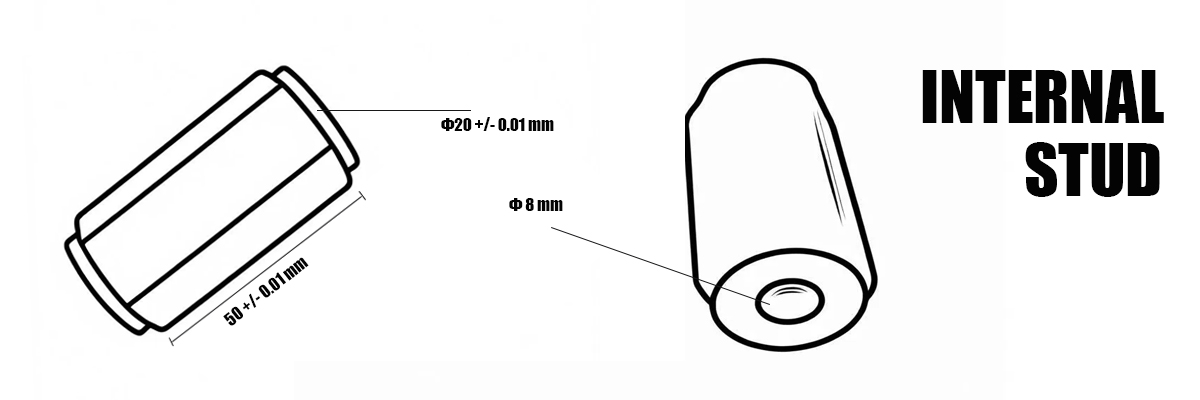

THE INTERNAL THREAD NUT STUD
The internal thread nut stud, often referred to simply as a "nut stud," is a fastener that combines features of both a nut and a stud.
1. Design
Structure: Typically consists of a cylindrical rod (the stud) with internal threads on one end and external threads or a smooth surface on the other.
Internal Threads: Allow for the insertion of a bolt or screw, enabling secure fastening.
External Threads: Used to attach to a corresponding nut or threaded component.
2. Materials
Commonly made from materials like steel, stainless steel, brass, or plastic, depending on the application and required strength.
3. Applications
Mechanical Assemblies: Used in machinery and equipment where a strong, stable connection is needed.
Automotive: Common in vehicle assemblies for securing parts together.
Construction: Employed in building structures to connect components securely.
4. Advantages
Versatility: Can be used in various configurations and applications, making them adaptable.
Strength: Provides strong connections, ideal for load-bearing applications.
Ease of Use: Facilitates quick assembly and disassembly, especially in maintenance situations.
5. Installation
Typically installed by threading into a pre-drilled hole or using a corresponding nut. The internal threads allow for secure fastening with bolts or screws.
Product Parameter
1. Precision stamping part,CNC machining part,turned part
2. Tolerance: ± 0. 01 - ± 0.1mm
3. Certificate: ISO 9001
4. Total customer satisfaction
SCREW STUDS NUT DATASHEET
1. General Information
Product Name: Screw Studs Nut (Hex Nut for Studs)
Type: Full / Half / Lock Nut (Specify as needed)
Material: Carbon Steel (Grade 4.8/8.8/10.9), Stainless Steel (A2/A4), Brass, Nylon, etc.
Surface Treatment: Zinc Plated, Hot-Dip Galvanized, Black Oxide, Nickel Plated, etc.
Standard: DIN 934 (ISO 4032), ASME B18.2.2, BS 3692, JIS B 1181
| 2. Dimensions | ||||
| Size (M) | Pitch (mm) | Width Across Flats (A/F) (mm) | Height (H) (mm) | Thread Length (L) (mm) |
| M4 | 0.7 | 7 | 3.2 | 4+ |
| M6 | 1 | 10 | 5 | 6+ |
| M8 | 1.25 | 13 | 6.5 | 8+ |
| M10 | 1.5 | 17 | 8 | 10+ |
| M12 | 1.75 | 19 | 10 | 12+ |
| M16 | 2 | 24 | 13 | 16+ |
Tensile Strength:
Grade 4.8: 420 MPa
Grade 8.8: 800 MPa
Stainless Steel (A2-70): 700 MPa
Proof Load: 60-90% of tensile strength (varies by grade).
Temperature Range:
Steel: -50°C to +300°C
Nylon: -40°C to +120°C
4. Features
Thread Type: Metric (Coarse/Fine), UNC, UNF, BSW, etc.
Anti-Loose Options: Nylon insert (Lock Nut), Flanged, Serrated base.
Corrosion Resistance: High (Stainless Steel, Zinc Plated).
5. Applications
Automotive, Machinery, Construction, Plumbing, Electrical Panels, etc.
6. Packaging
Bulk, Boxed, or Custom Packaging (e.g., 100pcs/bag).
7. Compliance & Certifications
ISO 9001, RoHS, REACH (as applicable).
