In industrial energy facilities—such as power plants, refineries, and large-scale manufacturing sites—maintaining precise temperature and air quality is critical. HVAC (Heating, Ventilation, and Air Conditioning) systems serve as the backbone of climate control, ensuring that machinery operates within safe temperature ranges and that personnel work in a clean, healthy environment. However, industrial settings often generate large quantities of airborne pollutants: dust from material handling, oil mist from lubrication systems, and fine metal particles from machining processes.
Air filters installed within HVAC systems act as the first line of defense against these contaminants. By capturing and removing particulate matter before it circulates through ductwork and into sensitive components, air filters protect the entire HVAC infrastructure—from coils, fans, and blowers to sensors and control electronics. Beyond protecting equipment, effective air filtration also benefits the health and safety of plant personnel by reducing airborne particulates that can aggravate allergies, respiratory issues, and long-term health problems. In short, industrial HVAC air filters do more than “clean the air” — they maintain system reliability, optimize energy consumption, and extend equipment life in demanding environments.
Air filters employed in industrial HVAC systems rely on one or more of the following mechanisms to remove contaminants:
Physical Filtration

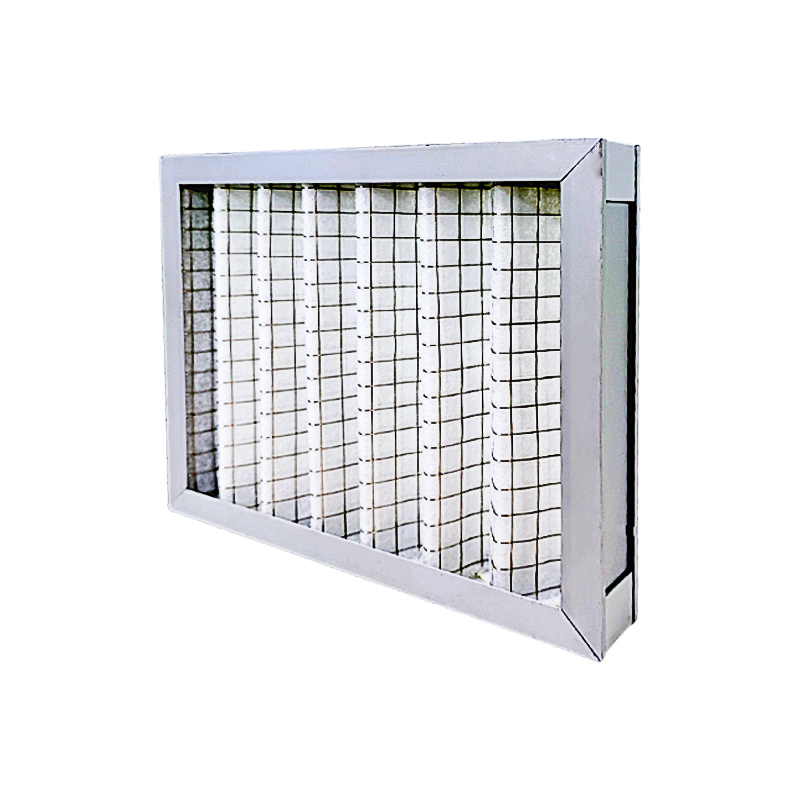

Fibrous or Porous Media: High-efficiency particulate air (HEPA) filters and other mechanical filters consist of densely packed fibers or pleated media that act like a sieve. As air passes through, larger particles are trapped on the upstream side, while progressively smaller particles lodge deeper within the filter media.
Multi-Layer Construction: Many industrial filters combine coarse pre-filters with finer secondary filters. The coarse layer captures larger dust and debris, extending the life of the more expensive secondary media, which focuses on smaller particulates—down to 0.3 microns or less.
Electrostatic Attraction
Charged Fibers: Some filters incorporate fibers that carry a static charge. When particles—such as dust, smoke, or lint—pass by, they are drawn to these charged fibers and adhere electrostatically. As a result, even submicron contaminants that might bypass mechanical filtering can be captured.
Hybrid Media: Electrostatic filter media often combine charged fibers with traditional mechanical filtering layers. This hybrid approach improves capture efficiency for fine particles without drastically increasing airflow resistance.
Activated Carbon Adsorption
Porous Carbon Structure: Activated carbon filters contain a network of microscopic pores that provide a very large surface area (often over 500 m² per gram). As air passes over the carbon, molecules such as odors, volatile organic compounds (VOCs), and certain gaseous pollutants adhere to the carbon surface.
Chemical Adsorption: While HEPA and mechanical filters excel at removing particulates, activated carbon specifically targets gases and odors generated by industrial processes—oil vapors, solvent fumes, and chemical off-gassing. Integrating an activated carbon stage downstream of particulate filters gives HVAC systems the dual functionality of particulate removal and odor/gas adsorption.
By combining mechanical filtration, electrostatic attraction, and activated carbon adsorption into layered filter assemblies, industrial HVAC systems achieve superior air cleaning performance. This not only protects downstream equipment but also ensures that the circulated air meets the strict cleanliness requirements of modern energy facilities.
Industrial energy plants present particularly harsh conditions for HVAC filters. The following contaminants pose significant threats:
Dust (Coal, Mineral, and Construction Debris)
Source: Coal-fired power plants, cement production, or large-scale construction generate fine mineral dust. When dust infiltrates HVAC systems, it accumulates on coils, fan blades, and ducts. Over time, this buildup reduces heat transfer efficiency, increases motor load, and drives up energy consumption.
Impact: Inadequately filtered dust can shorten coil life (due to clogging), force more frequent maintenance shutdowns, and degrade indoor air quality, potentially affecting workers and sensitive instrumentation.
Oil Mist and Lubricant Aerosols
Source: In oil refineries, petrochemical plants, or machinery shops, hydraulic fluids and lubricating oils atomize into fine mists. These oily aerosols adhere to filter fibers and coil surfaces, forming a sticky layer that entraps additional dust and debris.
Impact: Oil-laden filters clog rapidly, increasing pressure drop and starving the HVAC fan of airflow. When oil bypasses the filter, it coats coils and heat exchangers, reducing thermal conductivity and raising operational costs.
Metal Particles (Aluminum, Steel, Copper)
Source: Metalworking operations—such as milling, turning, welding, and grinding—create ultrafine metal shavings and dust. Without appropriate pre-filtration, these particles can circulate through the HVAC network.
Impact: Metal particles are highly abrasive and conductive. Accumulation on coils or sensors may cause short circuits, component failure, or even spark ignition in flammable environments. In addition, metallic dust poses health hazards if inhaled by workers.
Chemical Vapors and Gases
Source: Petrochemical and chemical processing plants release gaseous contaminants—solvents, sulfur compounds, and VOCs. Although these are not captured by mechanical filters, they degrade air quality and corrode metal surfaces.
Impact: Chemical vapors can corrode HVAC components (coils, dampers, sensors) over time, leading to system inefficiency, leaks, or permanent damage. Their presence also necessitates specialized filtration stages, such as activated carbon or chemical media.
Given these environmental challenges, installing robust, multi-stage filtration systems is not optional—it is essential. Proper filter selection and maintenance mitigate the impact of dust, oil, metal shavings, and gases, ensuring HVAC equipment remains operational, efficient, and safe.
Deploying high-efficiency filters in industrial HVAC systems helps prevent a cascade of equipment failures in several ways:
Protecting Coil Fins and Heat Exchange Surfaces
Clog Prevention: When dust, oil, or metal particles adhere to coil fins, they inhibit airflow and trap heat. This forces the HVAC system to run longer and work harder, increasing compressor and motor wear. A well-maintained filter assembly stops contaminants before they reach coils, preserving the heat transfer surface and avoiding compressor overload.
Shielding Fan Motors and Bearings
Reduced Abrasive Wear: Metal and mineral dust that slip past inadequate filters can become lodged in fan bearings or on motor windings. Over time, this abrasive material causes friction, bearing failures, and overheating. High-efficiency pre-filters capture these larger particles, helping prolong motor lifespan.
Safeguarding Electronic Sensors and Controls
Dust-Induced Malfunctions: Many modern HVAC systems rely on electronic sensors (temperature, humidity, pressure) to modulate airflow. Dust accumulation on these sensors leads to inaccurate readings, causing improper cycling and inefficient operation. High-performance filters remove particulates before they impair sensor function.
Preventing Corrosion of Metal Components
Oil and Chemical Attack: Filters with activated carbon or specialty media remove harmful vapors and acidic gases that would otherwise corrode metal ductwork, coils, and dampers. Preventing corrosion extends component life and reduces the frequency of expensive replacements.
Reducing Maintenance Intervals
Longer Service Life: When filters capture most contaminants, downstream components remain cleaner for longer periods. This translates into fewer maintenance shutdowns, lower labor costs, and improved uptime. Scheduled filter changes (e.g., every three to six months) become the primary maintenance task, rather than emergency coil cleanings or motor replacements.
In summary, high-efficiency air filters form a protective barrier that intercepts harmful particles, safeguarding coils, fans, electronics, and structural components. By maintaining a clean internal environment, filters reduce unplanned failures, prolong hardware lifespan, and keep HVAC systems running smoothly.
Clogged or undersized filters force HVAC systems to operate under suboptimal conditions, whereas properly selected and well-maintained filters deliver several performance advantages:
Reduced Airflow Resistance (Pressure Drop)
Optimized Air Movement: A clean filter exhibits minimal resistance to airflow, allowing the blower fan to maintain design airflow (measured in cubic feet per minute, or CFM) with less energy input. Conversely, a dirty filter's pressure drop increases exponentially—sometimes doubling or tripling if left unchanged for too long—forcing the fan motor to draw more amps and burn more watts.
Fan Horsepower: By maintaining low pressure drop, a clean filter allows the fan to operate within its optimal performance curve. This reduces the risk of motor overheating and extends blower life.
Improved Cooling Coil Performance
Maintained Heat Transfer: Accumulated contaminants on coil fins act as an insulating layer, reducing the coil's ability to transfer heat. A filter that removes fine dust ensures that coil surfaces remain clean and thermally conductive. Studies have shown that a 15–20 percent decrease in coil effectiveness can occur when coils are only lightly fouled. Clean air filters help keep that loss to a minimum, ensuring that chilled water or refrigerant coils operate at peak efficiency.
Lower Energy Consumption
System Efficiency: Less energy is required to maintain setpoint conditions when filters are clean. On average, replacing heavily loaded filters can reduce HVAC system power consumption by 5–15 percent. Over a typical year, such energy savings accumulate into significant cost reductions—particularly in large industrial facilities running 24/7.
Peak Load Reduction: In hot weather, when cooling demand peaks, HVAC systems with clean filters are more likely to meet rental requirements without overloading. This avoids costly demand charges on utility bills.
Enhanced Comfort and Indoor Air Quality (IAQ)
Consistent Temperature and Humidity: Improved cooling efficiency means the system can more reliably maintain set temperatures and humidity levels throughout the facility. This uniformity is crucial for temperature-sensitive processes (e.g., server rooms, control centers) and for worker comfort in office or control room areas.
Reduced Recirculation of Pollutants: Effective filters trap particulates that might cause unpleasant odors or respiratory irritations among staff. Better IAQ also reduces the likelihood of dust-related damage to sensitive electronic equipment.
In essence, clean, properly rated air filters not only protect the HVAC hardware but also drive down energy consumption, lower operational costs, and create a safer, more consistent indoor environment.
Background: A mid-sized natural gas power plant located in a semi-arid region struggled with dust-laden air infiltrating its central HVAC system. The facility’s original filter arrangement consisted of basic pleated particulate filters rated at MERV 8 (Minimum Efficiency Reporting Value), replaced quarterly. Despite regular maintenance, staff noticed rising energy bills, frequent overheating issues in auxiliary generator rooms, and a spike in unplanned maintenance—particularly on fan motors and coil assemblies.
Challenges Identified:
Excessive Dust Ingress: Ambient dust levels were high due to nearby construction and unpaved roads. MERV 8 filters captured only larger particulates (3–10 microns), allowing finer dust (1–3 microns) to pass through and accumulate on coils and motors.
Elevated Pressure Drop: The original filters exhibited a rapid pressure increase after just four weeks of installation. By the end of the third month, pressure drop had more than doubled, straining the fan motor and raising energy consumption.
Corrosion Risk: Test results from HVAC technicians revealed traces of sulfuric fumes (byproduct from gas processing) in the return air stream. These acidic gases threatened to corrode metal ductwork and coil fins.
Upgrades Implemented:
High-Efficiency Particulate Filters (MERV 13): Replacement of MERV 8 filters with MERV 13 pleated filters (designed to capture 1–3 micron particles with ≥85% efficiency) significantly reduced fine dust infiltration.
Activated Carbon Pre-Filter Stage: A new pre-filter rack housed granular activated carbon panels upstream of the MERV 13 filters to adsorb sulfur compounds and volatile organic gases, preventing corrosion and extending the life of the downstream filters.
Filter Monitoring System: Differential pressure sensors installed across each filter bank provided real-time data on filter loading. When the pressure drop exceeded a preset threshold (0.5 inches of water column), maintenance staff received an alert to replace filters promptly.
Results After Six Months:
Dust Reduction: Post-upgrade air sampling showed a 95% reduction in airborne particulate concentration downstream of the filter bank. Coil surfaces remained visibly cleaner, requiring cleaning only twice per year instead of quarterly.
Energy Savings: The plant's average HVAC electrical load decreased by 10%. Annual energy savings amounted to approximately $18,000, offsetting the incremental filter cost within eight months.
Improved Reliability: Fan motor failures dropped by 80% (from five incidents per year to one), as motors no longer labored against clogged filters.
Corrosion Prevention: Visual inspections confirmed that the activated carbon stage effectively removed sulfur fumes, preserving coil integrity and preventing sticky residue.
This case study demonstrates that investing in high-efficiency filtration and monitoring systems can translate into substantial operational benefits: lower maintenance costs, reduced energy consumption, and greater system reliability—an appealing value proposition for any industrial energy application.
Investing in premium air filtration is not just a maintenance decision—it's a strategic advantage for any industrial energy facility. By partnering with specialists who understand your unique environmental challenges, you can be confident that your HVAC system remains efficient, reliable, and cost-effective. Shenzhen Wandaan Precision Technology Co., Ltd. offers a comprehensive range of industrial-grade air filters and tailored HVAC solutions designed to tackle the toughest contaminants—whether fine mineral dust, oil mist, or corrosive gases. Their engineering team works closely with you to assess your facility's specific requirements, recommend the optimal filter media (from MERV 13 pleated panels to activated carbon stages), and implement real-time monitoring systems that alert you the moment filters approach capacity.
For detailed product specifications, performance data, or personalized consultation, we encourage you to explore Shenzhen Wandaan's website or reach out directly to their technical support team. With decades of experience serving power plants, petrochemical complexes, and manufacturing hubs worldwide, Wandaan delivers proven filtration systems that minimize downtime, reduce energy costs, and extend HVAC component life. To learn how high-quality air filters can transform your industrial HVAC performance, contact Shenzhen Wandaan Precision Technology Co., Ltd. today—your equipment's long-term stability depends on it.
