What’s the Turning Milling ? Turning and Milling are two fundamental machining processes used in manufacturing to  shape and refine materials,typically metals.Each process uses different tools and techniques  to achieve specific geometries and features on work-pieces.

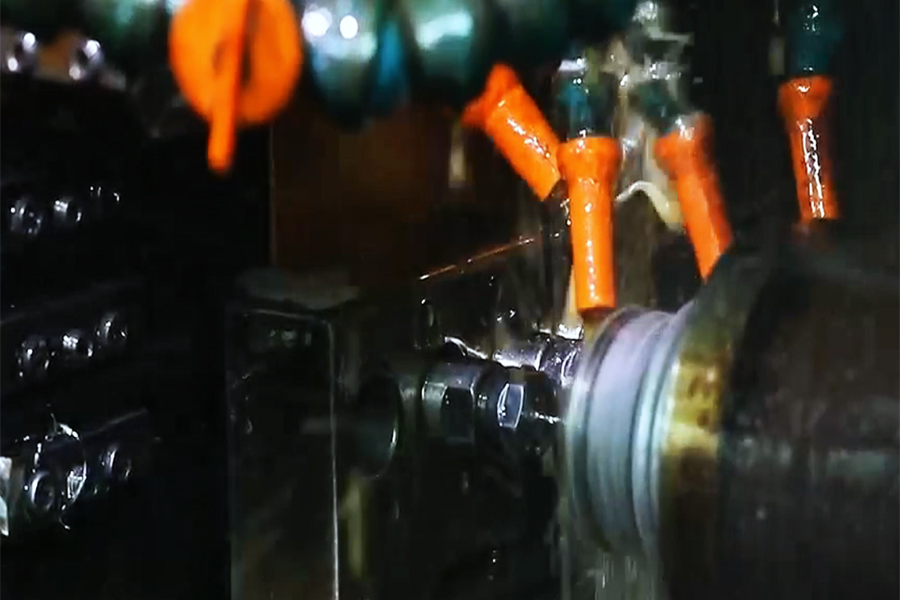

TURNING MACHINING Turning is a machining process that involves rotating a workpiece on a lathe while a cutting tool removes material to create cylindrical shapes or features. Here are the key aspects of turning: Process: The workpiece is mounted on a spindle and rotated at high speed. A stationary cutting tool moves in a linear path along the workpiece to remove material. Applications: Turning is used to produce cylindrical parts,such as shafts,pins,and bushings. It can create various features,including grooves,threads,and tapered surfaces. Tools: The primary tool used in turning is a single-point cutting tool,which can be made from high-speed steel (HSS),carbide,or ceramic materials. Lathe Types: Engine Lathe: A versatile machine used for general turning operations. CNC Lathe: A computer-controlled lathe that automates the turning process for precision and complex shapes.

MILLING MACHINING Milling is a machining process that involves removing material from a workpiece using rotary cutters.The workpiece is typically held stationary while the cutter moves to create flat surfaces,slots,or intricate shapes.Here are the key aspects of milling: Process:In milling,a rotating cutter moves across the work-piece,removing material as it advances.The cutter can move in multiple axes, allowing for more complex shapes. Applications:Milling is used to produce a wide range of components,such as gears,brackets,and custom parts with complex geometries.It can create flat surfaces,key ways,and contoured profiles. Tools:Milling tools include end mills,face mills,and drill bits,which can be made from HSS,carbide,or other cutting materials.

Milling Machine Types:

Vertical Milling Machine: The spindle is oriented vertically, allowing for the cutting tool to move up and down.

Horizontal Milling Machine: The spindle is oriented horizontally, providing different cutting capabilities.

CNC Milling Machine: A computer-controlled milling machine that offers high precision and automation for complex part manufacturing.

The Types of the Turning Machining

Turning machining is a versatile process used to create cylindrical parts and components by removing material from a rotating work-piece.Various types of turning operations can be performed depending on the desired shape,size,and features of the finished part. Here are the main types of turning machining:

1. Straight Turning

Description: This is the most basic form of turning where the diameter of the workpiece is reduced to create a cylindrical shape.

Application: Used to produce shafts, rods, and other cylindrical components.

2. Taper Turning

Description: Taper turning involves gradually reducing the diameter of the workpiece along its length, creating a conical shape.

Application: Commonly used for creating parts like cones or tapers for fittings and connectors.

3. Facing

Description: Facing is the process of machining a flat surface at the end of a cylindrical workpiece.

Application: Used to create a smooth surface for assembly, or to reduce the length of a part.

4. Thread Turning

Description: This process involves creating threads on a cylindrical workpiece using a single-point cutting tool or a threading tool.

Application: Used to manufacture screws, bolts, and other fasteners with specific thread types.

5. Grooving

Description: Grooving involves cutting a narrow channel or groove into the workpiece, which can be done to create space for O-rings, seals, or to reduce material.

Application: Commonly used in the production of mechanical components that require precision grooves.

6. Parting Off

Description: Parting off is the process of cutting the workpiece into smaller sections using a narrow cutting tool.

Application: Used to separate finished parts from the main workpiece, often at the end of a turning operation.

7. Boring

Description: Boring is an operation that enlarges an existing hole in a workpiece, improving its accuracy and surface finish.

Application: Used in manufacturing to create precise internal diameters and features.

8. Knurling

Description: Knurling involves creating a patterned texture on the surface of a workpiece, typically for improved grip.

Application: Commonly used for handles, knobs, and other components that require a textured surface for better handling.

9. Cam Turning

Description: Cam turning involves using a cam mechanism to control the movement of the cutting tool in relation to the work-piece, allowing for complex shapes.

Application: Used in applications requiring non-linear motion or profiles.

10. CNC Turning

Description: CNC (Computer Numerical Control) turning utilizes computerized controls to automate the turning process, enabling high precision and repeatability.

Application: Suitable for complex geometries and high-volume production, commonly found in various industries.

The Types of the Milling Machining

Milling machining is a versatile manufacturing process used to remove material from a work-piece using rotary cutters. The type of milling operation can vary based on factors such as the orientation of the cutter, the type of milling machine used, and the desired shape of the finished part. Here are the main types of milling machining:

1. Horizontal Milling

Description: In horizontal milling, the cutter is mounted on a horizontal spindle. The work-piece is fed horizontally into the rotating cutter.

Application: Ideal for producing flat surfaces, grooves, and key ways. Commonly used for heavy-duty milling operations.

2. Vertical Milling

Description: Vertical milling features a cutter mounted on a vertical spindle. The work-piece can be moved up and down to create various shapes.

Application: Suitable for creating slots, pockets, and complex shapes. Often used in small to medium production runs.

3. Universal Milling

Description: Universal milling machines can perform both vertical and horizontal milling operations. They often feature adjustable table positions and can accommodate various tooling.

Application: Versatile for different milling tasks, allowing for complex parts and profiles.

4. CNC Milling

Description: CNC (Computer Numerical Control) milling uses computerized controls to automate the milling process. It allows for high precision and repeatability.

Application: Ideal for complex geometries, high-volume production, and precision parts in various industries.

5. Face Milling

Description: Face milling uses a flat cutter to remove material from the surface of the work-piece. The cutter's axis is perpendicular to the work-piece surface.

Application: Commonly used to create flat surfaces, steps, and profiles on the work-piece.

6. End Milling

Description: End milling involves using a rotating cutter with cutting edges on the end and the sides. It can be performed on both vertical and horizontal milling machines.

Application: Suitable for producing complex shapes, slots, and contours in the work-piece.

7. Slot Milling

Description: Slot milling uses a specialized cutter to create slots or grooves in the work-piece.

Application: Commonly used for producing key ways, T-slots, and other features requiring precise slot dimensions.

8. Tapping

Description: Tapping involves creating internal threads in a work-piece using a rotating tool called a tap.

Application: Widely used to prepare holes for screws or bolts, allowing for secure fastening.

9. Drilling

Description: While primarily a separate process, drilling can be performed on milling machines using drill bits to create holes in the work-piece.

Application: Used for producing holes of various sizes and depths in parts.

10. Profile Milling

Description: Profile milling involves creating complex shapes by following a predefined contour or profile on the work-piece.

Application: Commonly used for producing intricate designs and shapes in parts, such as molds and dies.

11. Plunge Milling

Description: Plunge milling involves inserting the cutter straight down into the workpiece rather than moving it horizontally. This method is often used for heavy cuts.

Application: Suitable for machining deep slots or cavities where traditional milling might not be effective.

12. Contour Milling

Description: Contour milling is used to create curved or irregular shapes on the work-piece surface by following the outline of a specific contour.

Application: Commonly used for molds, dies, and other applications requiring non-linear features.

The Types of Turning Machine:

Turning machines are specialized equipment used in the turning machining process to create cylindrical parts by removing material from a rotating workpiece. There are several types of turning machines, each designed for specific applications and workpiece geometries. Here’s an overview of the main types of turning machines:

1. Engine Lathe

Description: A traditional and versatile machine tool that uses a rotating workpiece and a stationary cutting tool. It can perform various turning operations.

Applications: Suitable for general-purpose turning, facing, tapering, and threading. Commonly used in machine shops.

2. CNC Lathe

Description: A computer numerically controlled lathe that automates the turning process. It allows for precise control over tool movement and workpiece rotation.

Applications: Ideal for complex shapes and high-volume production, used in industries like aerospace, automotive, and medical devices.

3. Turret Lathe

Description: This lathe features a turret that holds multiple tools, allowing for quick tool changes and increased productivity.

Applications: Used for batch production of cylindrical parts, particularly when multiple operations are required.

4. Swiss-type Lathe

Description: A specialized lathe designed for precision machining of small, intricate parts. The workpiece is supported by a guide bushing and moved into a rotating cutting tool.

Applications: Commonly used in the production of small, high-precision components, such as screws, pins, and watch parts.

5. Vertical Lathe (VTL)

Description: A lathe with a vertical spindle orientation, allowing for the machining of large and heavy workpieces.

Applications: Used for turning large parts, such as turbine housings, flanges, and large shafts.

6. Horizontal Lathe

Description: The most common type of lathe, where the spindle is oriented horizontally. The workpiece is held in a chuck and rotated.

Applications: Suitable for a wide range of turning operations, including cylindrical turning and facing.

7. Boring Machine

Description: While primarily used for boring operations, many boring machines also have turning capabilities to machine large parts.

Applications: Used for precision machining of internal diameters and complex geometries in large workpieces.

8. CNC Turning Center

Description: A more advanced version of a CNC lathe that combines turning and milling capabilities. It may include additional axes of movement (like Y-axis or C-axis) for more complex operations.

Applications: Suitable for multi-tasking operations, such as machining, drilling, and tapping, in a single setup.

9. Slant Bed Lathe

Description: A lathe with a slanted bed design that improves chip removal and provides better visibility of the workpiece and tooling.

Applications: Commonly used in high-speed production environments and for machining complex parts.

10. Multi-Spindle Lathe

Description: This type of lathe features multiple spindles, allowing for simultaneous machining of several parts.

Applications: Ideal for high-volume production runs, particularly in the automotive and aerospace industries.

The Types of Milling Machine

Milling machines are versatile tools used in manufacturing to remove material from a workpiece using rotary cutters. They come in various types, each designed for specific milling operations and applications. Here’s an overview of the main types of milling machines:

1. Vertical Milling Machine

Description: In a vertical milling machine, the spindle is oriented vertically, allowing the cutter to move up and down. The workpiece is held on a movable table that can be adjusted in multiple directions.

Applications: Commonly used for producing flat surfaces, slots, and complex shapes. Ideal for small to medium production runs and prototyping.

2. Horizontal Milling Machine

Description: In horizontal milling machines, the spindle is mounted horizontally. The cutter rotates on a horizontal axis and the workpiece is fed into the cutter.

Applications: Suitable for producing flat surfaces, grooves, and keyways. Often used for heavier-duty milling operations.

3. Universal Milling Machine

Description: Universal milling machines can perform both vertical and horizontal milling operations. They are equipped with a swiveling table, allowing for angular cuts.

Applications: Versatile for different milling tasks, suitable for machining complex parts

The Process of Turning&Milling

The turning-milling process is a hybrid machining method that combines turning and milling operations to produce complex geometries on a workpiece. This process is typically performed on specialized CNC machines that have the capabilities of both turning and milling, often referred to as turning centers or multi-tasking machines. Here’s an overview of the turning-milling process:

Overview of the Turning-Milling Process

Setup and Tooling:

The workpiece is securely clamped in the machine's spindle, which rotates the part during the turning operation.

Various cutting tools are mounted on a tool turret or a tool holder, enabling both turning and milling operations. These tools may include turning inserts, end mills, face mills, and drilling tools.

Turning Operation:

The process typically begins with the turning operation, where the rotating workpiece is machined using a single-point cutting tool.

The tool removes material from the outer diameter, creating cylindrical shapes, reducing the diameter, or forming features like grooves and threads.

Milling Operation:

After the turning operation, the machine can switch to milling mode. The cutting tool (often a rotating end mill) engages with the workpiece to create flat surfaces, slots, or complex contours.

The milling can occur at various angles and depths, allowing for detailed features to be added to the workpiece.

Tool Path Programming:

The entire process is controlled by a CNC (Computer Numerical Control) system, which allows for precise programming of the tool paths and machining parameters.

Operators can use CAD/CAM (Computer-Aided Design/Computer-Aided Manufacturing) software to design the part and generate the necessary code for the CNC machine.

Simultaneous Operations:

In advanced turning-milling machines, both turning and milling can occur simultaneously, significantly reducing cycle times and increasing productivity.

This capability allows for more complex geometries to be created in a single setup, minimizing the need for additional handling and setups.

Advantages of the Turning-Milling Process

Increased Efficiency: By combining turning and milling operations, manufacturers can significantly reduce production times and improve efficiency.

Complex Geometries: This process allows for the creation of complex shapes and features that would be challenging to achieve with either turning or milling alone.

Improved Precision: CNC control provides high levels of accuracy and repeatability, essential for modern manufacturing standards.

Reduced Setup Time: Performing multiple operations in a single setup minimizes handling and setup time, leading to quicker turnaround times for production.

Applications of the Turning-Milling Process

The turning-milling process is widely used in various industries, including:

Aerospace: For manufacturing complex components such as turbine housings, brackets, and precision fittings.

Automotive: For producing engine parts, transmission components, and other intricate assemblies.

Medical Devices: For creating precision instruments and implants with complex shapes.

Oil and Gas: For producing components that require high durability and precision, such as valve bodies and fittings.
