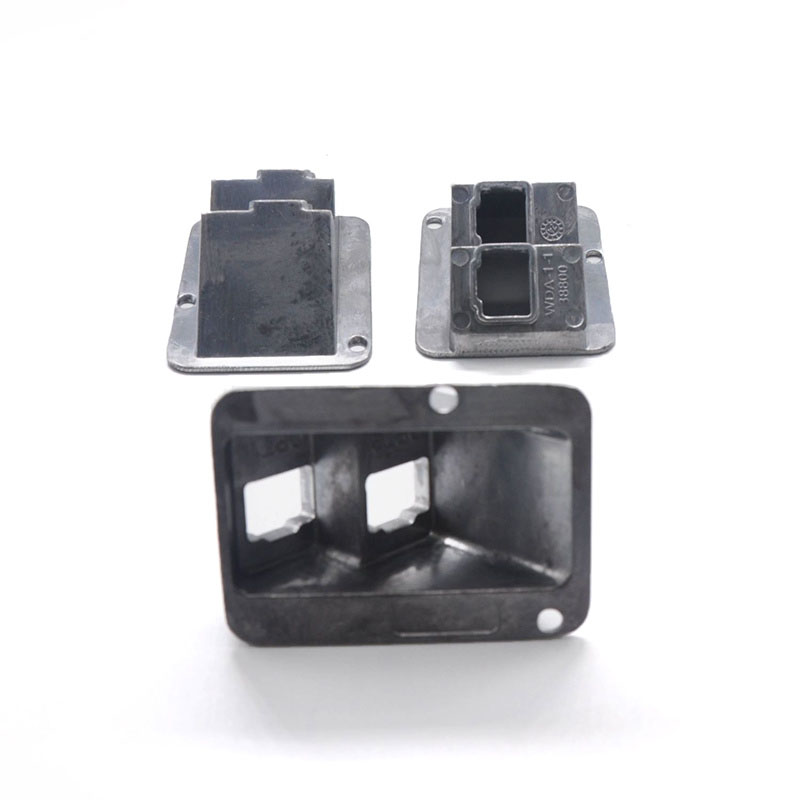

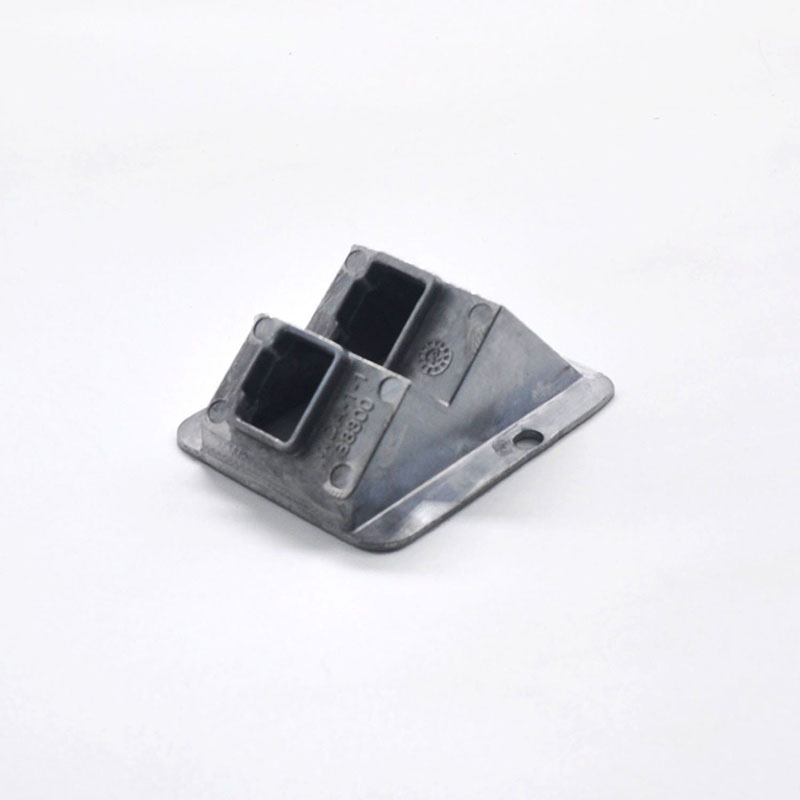

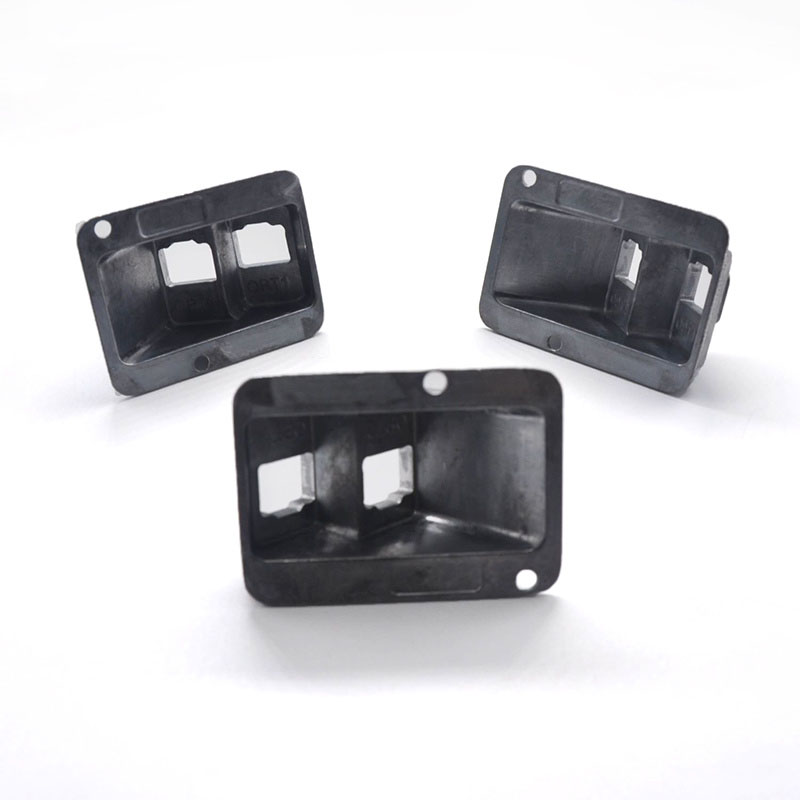

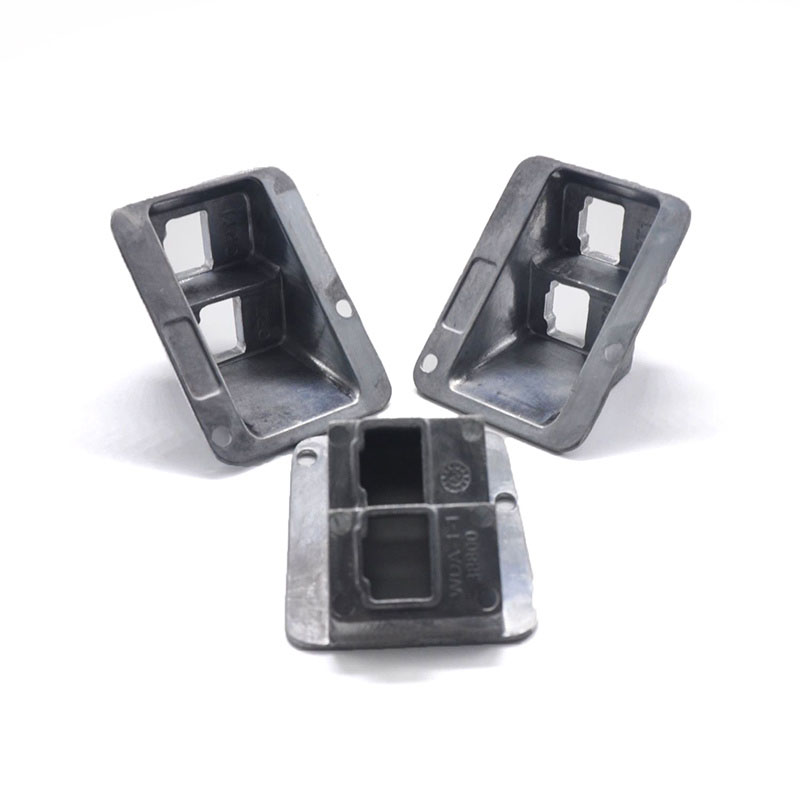

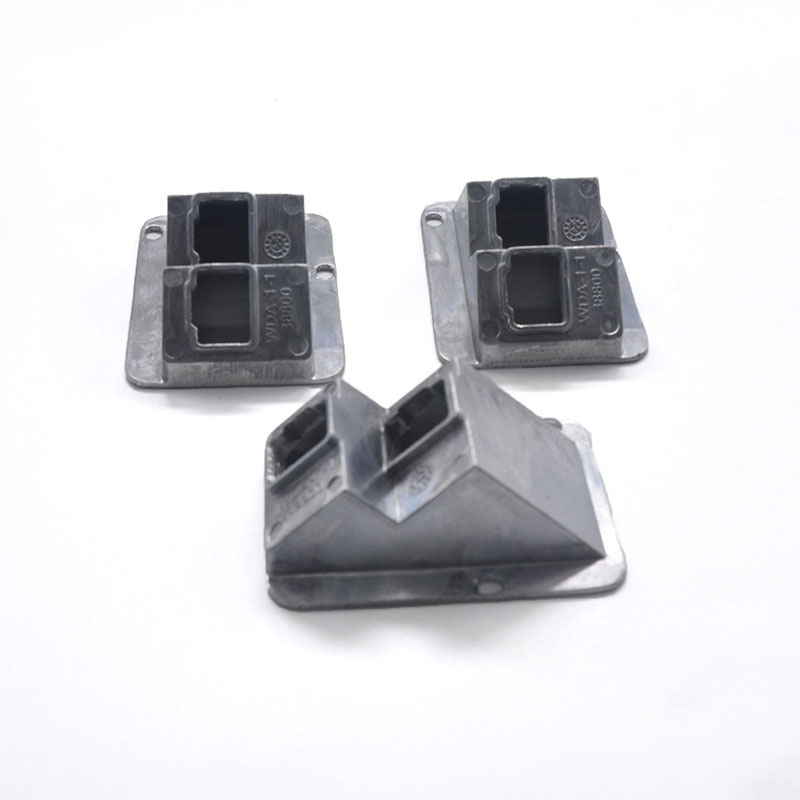

DIE CASTING PART
WANDA-AN
DC-010-MC0001
1. WHAT'S THE DIE CASTING?
Die casting is a metal casting process that is characterized by forcing molten metal under high pressure into a mold cavity. The mold cavity is created using two hardened steel dies that have been machined into the desired shape. The process is typically used to produce complex shapes with high accuracy and repeatability.
During the die casting process, the molten metal is injected into the mold cavity at high pressure, which helps to ensure that the final product has a smooth surface finish and tight dimensional tolerances. Once the metal has solidified, the dies are opened and the casting is ejected from the mold.
Die casting is commonly used in the automotive, aerospace, and consumer electronics industries to produce a wide range of parts and components, such as engine blocks, transmission cases, and electronic housings. The process offers several advantages, including high production rates, excellent dimensional accuracy, and the ability to produce parts with thin walls and complex geometries.
Overall, die casting is a versatile and efficient metal casting process that is widely used in various industries to produce high-quality, complex parts and components.
2. DIE CASTING PROCESS
The die casting process typically involves the following steps:
Step 1: Mold Preparation
Designing the Mold: The die is designed based on the specifications of the part to be produced. It consists of two halves that will form the outer shape of the part.
Mold Construction: Molds are usually made from high-strength steel or other durable materials to withstand high pressure and temperature.
Step 2: Melting the Metal
The chosen metal (often aluminum, zinc, or magnesium) is heated in a furnace until it becomes molten.
Step 3: Injection
The molten metal is injected into the mold at high pressure (typically 1,000 to 2,500 psi or more). This ensures that the metal fills all cavities of the mold quickly and completely.
There are two main methods of injection:
Cold Chamber Die Casting: The molten metal is poured into a chamber, and a plunger forces it into the die. This method is typically used for metals with high melting points (like aluminum).
Hot Chamber Die Casting: The injection mechanism is immersed in molten metal, allowing for quicker injection cycles. This method is commonly used for lower melting point metals (like zinc).
Step 4: Cooling and Solidification
After the molten metal is injected, it cools and solidifies within the mold. This process can take a few seconds to a few minutes, depending on the part's size and thickness.
Step 5: Ejection
Once the metal has solidified, the mold is opened, and the part is ejected. Ejector pins or plates are used to remove the part from the mold without damaging it.
Step 6: Finishing
The cast part may undergo additional machining processes, such as trimming, drilling, or surface finishing, to achieve the final specifications and tolerances.
3. MATERIALS OPTIONAL
Aluminum: Lightweight and corrosion-resistant, aluminum is one of the most commonly used materials in die casting.
Zinc: Offers excellent dimensional accuracy and is often used for smaller, intricate parts.
Magnesium: Known for its high strength-to-weight ratio, magnesium is used in applications where weight reduction is critical.
Copper Alloys: Occasionally used for specific applications requiring higher conductivity.
4. ADVANTAGES OF DIE CASTING
High Precision: Die casting provides excellent dimensional accuracy and surface finish, reducing the need for extensive machining.
Complex Geometries: Capable of producing intricate shapes and thin-walled sections that may be challenging with other methods.
Production Efficiency: The high-speed injection process allows for rapid production of large quantities of parts.
Material Efficiency: Minimal waste is generated, as the process can reuse excess metal (sprues and runners).
Strength: Parts produced through die casting typically have good mechanical properties due to the dense structure of the cast material.
5. APPLICATIONS OF DIE CASTING
Automotive Industry: Engine components, transmission cases, and structural parts.
Aerospace: Structural components, housings, and brackets.
Consumer Electronics: Housings for devices, connectors, and structural parts.
Industrial Equipment: Components for machinery, tools, and fixtures.
6.THE FEATURES OF THE DIE CASTING
High-pressure die casting (HPDC) has several key features that make it a popular choice in manufacturing:
1)Precision and Accuracy
Tight Tolerances: HPDC produces parts with excellent dimensional accuracy, making it ideal for complex shapes and intricate designs.
2)High Production Rates
Efficiency: The process allows for rapid production cycles, enabling high-volume manufacturing, which is particularly beneficial for large-scale applications.
3)Surface Finish
Smooth Surfaces: Parts often have a superior surface finish straight out of the mold, reducing the need for extensive post-processing.
4)Material Versatility
Wide Range of Alloys: Commonly used for aluminum, zinc, and magnesium, it supports various metal alloys tailored to specific applications.
5)Strength and Durability
Enhanced Properties: Castings tend to have good mechanical properties and can withstand demanding applications, especially in automotive and aerospace sectors.
6)Complex Geometries
Design Flexibility: The ability to create intricate shapes allows for more innovative designs and optimized part performance.
