In electronics design and manufacturing, ensuring the reliability of electrical connections is crucial for the optimal performance of any system. Among various methods of connecting components to a PCB (Printed Circuit Board), PCB screw terminals stand out due to their simplicity, versatility, and ease of maintenance. However, to maximize their effectiveness, it's essential to understand the factors that influence their reliability and how to implement best practices during installation and maintenance.
In this article, we’ll explore the critical factors that impact the performance of PCB screw terminals and offer guidance on how to ensure their reliability. From proper selection and installation techniques to ongoing maintenance tips, we’ll cover everything you need to know to keep your connections secure and efficient. Whether you're working on a DIY electronics project, an industrial device, or any other electronic system, this guide will help you achieve long-lasting, stable connections.

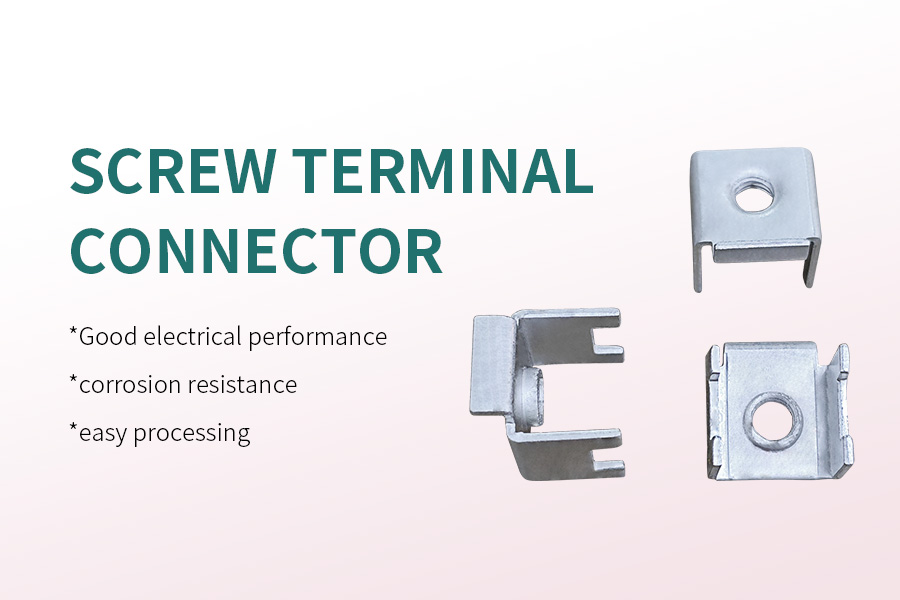

PCB screw terminals are connectors that allow electrical wires to be securely attached to a printed circuit board using screws. These terminals offer an easy way to connect wires to a PCB, providing a reliable, non-permanent connection that can be disconnected and reconnected when necessary. PCB screw terminals are particularly useful in situations where components need to be replaced, upgraded, or maintained frequently.
These terminals come in various designs, including vertical and horizontal configurations, and they can accommodate a wide range of wire gauges. Typically, PCB screw terminals are used in industrial equipment, power supplies, automotive systems, and audio electronics. Their ability to provide a strong, secure connection makes them an excellent choice for projects that require high durability and reliability.
To ensure the reliability of PCB screw terminals, it's important to understand the factors that influence their performance. Here are some of the key aspects to consider:
The material of the screw terminal plays a crucial role in its performance. High-quality materials ensure that the connection remains stable over time and can withstand environmental stresses like humidity, temperature fluctuations, and mechanical vibrations.
Common materials used for PCB screw terminals include:
Brass: A popular choice due to its excellent conductivity and corrosion resistance, though it can be more expensive.
Nickel-Plated Brass: Offers better corrosion resistance than brass alone, making it suitable for environments with higher humidity or harsher conditions.
Stainless Steel: Known for its strength and resistance to corrosion, stainless steel terminals are ideal for heavy-duty applications, although they may be more costly.
When selecting a PCB screw terminal, ensure that the material is compatible with the environmental conditions in which the device will operate. Corrosion-resistant materials are particularly important for applications exposed to moisture, dust, or high temperatures.
Using the wrong terminal size or wire gauge can lead to poor electrical connections. If the wire gauge is too large for the terminal, it may not fit properly, causing an unreliable connection. Conversely, if the wire is too small, it may not make proper contact with the terminal, leading to high resistance and potential heat buildup.
When choosing PCB screw terminals, always ensure that the terminal is rated for the correct wire gauge you intend to use. Check the terminal's datasheet to ensure that the wire size is within the recommended range for secure and efficient connections.
Proper wire preparation is key to ensuring a reliable connection. Wires should be stripped carefully to expose the correct length of bare copper wire. Exposing too much wire can cause shorts, while exposing too little can result in poor electrical contact. Typically, about 1/4 inch (6mm) of wire should be stripped to insert into the terminal.
Additionally, stranded wires should be twisted before insertion to prevent the individual strands from splaying out, which can cause a weak connection or intermittent contact. Solid wires, on the other hand, don’t require twisting but must be inserted into the terminal properly for maximum contact.
The screws that secure the wires to the terminal must be tightened to the correct torque specification. If the screws are too loose, the connection will be unreliable, and there could be a risk of the wires coming undone. If the screws are too tight, the terminal may be damaged, or the wire may be crushed, leading to poor electrical contact or even wire insulation breakage.
When tightening the screws, always use a proper-sized screwdriver and apply consistent pressure. If you have a torque wrench or a torque screwdriver, use it to ensure the screws are tightened within the recommended range specified by the terminal manufacturer.
In many industrial and automotive applications, PCBs with screw terminals are subjected to vibrations and mechanical stress. If the terminal screws are not properly tightened, vibrations can loosen the connections, leading to intermittent connections or complete failures. Over time, this can cause significant reliability issues, especially in high-current or high-voltage applications.
To prevent this, consider using vibration-resistant screw terminals or adding securing mechanisms like lock washers or thread-locking compounds to prevent the screws from loosening. It's also essential to ensure that the PCB and terminal are properly mounted within the device or enclosure to minimize physical stress.
Environmental factors such as temperature, humidity, and exposure to chemicals or dust can impact the performance of PCB screw terminals. High humidity can lead to corrosion, while extreme temperatures can cause the terminal material to expand or contract, potentially loosening the connection.
To ensure the reliability of screw terminals in challenging environments, use materials that are resistant to corrosion and temperature extremes. Additionally, ensure that the terminals are mounted in an enclosure that protects them from dust, moisture, and other environmental contaminants.
Unlike soldered connections, PCB screw terminals allow for easy disconnection and reconnection of wires. While this is a benefit in many applications, frequent use or adjustments can lead to wear and tear. Over time, the screw threads can become worn, leading to a loose connection or poor electrical contact.
To ensure the longevity of PCB screw terminals, it is important to perform regular maintenance. Check the connections periodically to ensure that the screws are tight and that the wires are properly seated in the terminal. If the screws appear damaged or the connection becomes unreliable, replace the terminal.
Now that we have discussed the factors that influence the reliability of PCB screw terminals, let's explore the best practices for installing and maintaining these connectors to ensure long-term, reliable performance.
Always refer to the manufacturer’s specifications and installation instructions when working with PCB screw terminals. This will provide you with the recommended torque settings, wire sizes, and other important details that ensure a secure and reliable connection.
Using the right tools is essential for ensuring a secure and precise connection. A high-quality screwdriver with a proper fit for the screw head will help prevent slipping and ensure that the screws are tightened to the correct torque. If you’re working with high-power applications, consider using a torque wrench or torque screwdriver to ensure accurate and consistent tightening.
While it’s important to ensure that the screws are tight, over-tightening can cause damage to the terminal or wire. Always tighten screws to the recommended torque and avoid excessive force. If you are unsure, use a torque screwdriver for precision.
Even though screw terminals are designed to be easy to modify, regular inspection is key to maintaining their reliability. Over time, screws can loosen, wires can fray, or corrosion can build up. Periodically check the connections to ensure that they are still secure and that there are no signs of wear or damage.
If your project involves components that will be subjected to vibrations, make sure to mount the PCB and terminals securely to minimize stress on the connections. Consider using vibration-damping materials or enclosures to protect the terminals from mechanical stress that could loosen the screws.
PCB screw terminals are an essential component in many electronic devices, offering reliable, easy-to-maintain connections that can be frequently modified or repaired. By considering the factors that influence the reliability of screw terminals, such as material quality, proper wire preparation, and environmental factors, you can ensure that your connections remain secure and efficient over time.
Following best practices during installation and regular maintenance will help you achieve long-lasting, stable electrical connections. Whether you’re working on a DIY project or designing a professional electronic system, paying attention to these details will ensure that your PCB screw terminals perform reliably throughout the life of your device.
