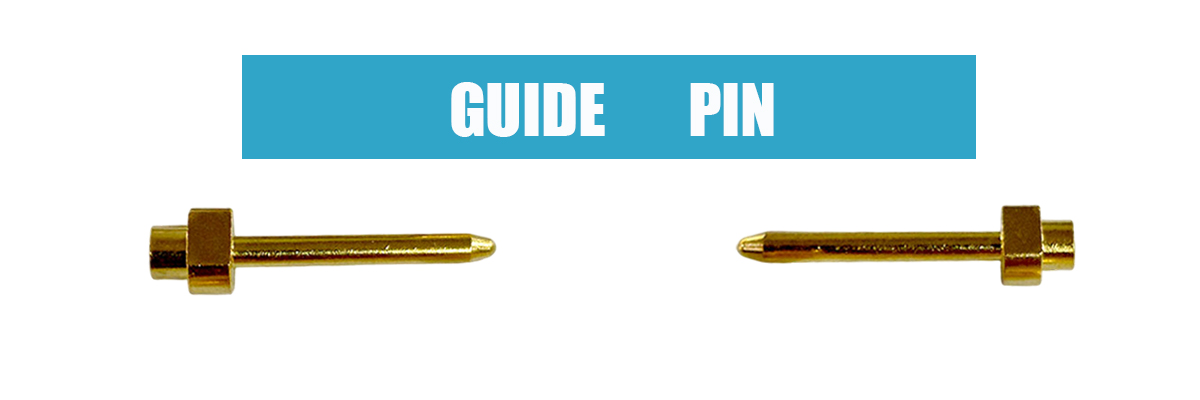

GUIDE PIN

Definition

Guide Pin is a mechanical component used to ensure precise alignment and positioning of parts in assembly processes.Guide pins are cylindrical pins that help align components, typically in molds, jigs, or fixtures. They ensure that parts fit together accurately during assembly or machining

Key Features

Material: Often made from durable materials such as steel or stainless steel to withstand wear and tear.

Shape and Size: Available in various lengths and diameters to suit different applications.

Surface Finish: May be coated or treated for corrosion resistance or to reduce friction.

Functions

Alignment: Helps align components precisely, ensuring consistent assembly.

Stability: Provides stability during machining or assembly operations, reducing the risk of misalignment.

Ease of Use: Facilitates easy insertion and removal of parts, streamlining the assembly process.

Applications

Manufacturing: Used in machining fixtures and assembly lines.

Molding: Commonly found in injection molds to ensure accurate part formation.

Automotive: Employed in assembly of vehicle components for precision fit.

Types

1. Fixed Guide Pins

Description: Permanently mounted in a fixture or mold.

Use: Ensures consistent alignment of components during assembly or machining.

2. Removable Guide Pins

Description: Can be easily inserted and removed.

Use: Provides flexibility for different assembly processes or when changing parts.

3. Locating Pins

Description: Often larger in diameter and designed to provide precise positioning.

Use: Used in jigs and fixtures to ensure accurate placement of parts.

4. Self-Locating Pins

Description: Designed with features that allow them to automatically align with corresponding holes or slots.

Use: Helps simplify assembly by reducing the need for manual alignment.

5. Tapered Guide Pins

Description: Tapered at one end, allowing for easier insertion and removal.

Use: Often used in applications where parts need to be aligned quickly.

6. Ball Lock Pins

Description: Feature a ball mechanism that locks the pin in place.

Use: Provides secure positioning while allowing for quick release when needed.

7. Spring-Loaded Guide Pins

Description: Equipped with a spring mechanism that allows for slight movement.

Use: Compensates for misalignments and helps maintain tension in the assembly.

8. Guiding Bushings

Description: Often used in conjunction with guide pins to provide additional support and alignment.

Use: Helps stabilize parts and reduce wear on the guide pins.
