ELECTRICAL BUS BAR
OVERVIEW
A bus bar is a conductive material used to collect and distribute electrical power within a power system.
It serves as a central point for connecting various electrical components and systems,such as generators,
transformers,and circuit breakers.Bus bars are essential components in electrical systems,enhancing efficiency,
safety,and reliability in power distribution.Their design and installation must comply with relevant standards
and regulations to ensure optimal performance.
In electric power distribution, a busbar (also bus bar) is a metallic strip or bar, typically housed inside switchgear, panel boards,
and busway enclosures for local high current power distribution.
FEATURES
Bus bars are produced in a variety of shapes, including flat strips, solid bars and rods, and are typically composed of copper, brass or aluminium as solid or hollow tubes.
Some of these shapes allow heat to dissipate more efficiently due to their high surface area to cross-sectional area ratio.
Busbars are produced in a variety of shapes,including flat strips, solid bars and rods,and are typically composed of copper,brass or aluminium as solid or hollow tubes.
Some of these shapes allow heat to dissipate more efficiently due to their high surface area to cross-sectional area ratio.
Material:Typically made from copper or aluminum due to their excellent electrical conductivity.
Shape and Size:Available in various shapes (flat,round,or hollow) and sizes,depending on the application and current capacity.
Insulation:Often insulated to prevent short circuits and ensure safety.
Mounting:Can be mounted horizontally or vertically,depending on space and design requirements.
Functions
A bus bar serves as an electrical connection point where it gathers electric power from incoming feeders and then disperses it to outgoing feeders. The primary function of a bus bar is to transport and distribute electricity, contributing to the efficiency of systems.
Power Distribution:Distributes electrical power to different circuits or loads efficiently.
Current Collection:Acts as a collection point for currents from multiple sources.
System Interconnection:Facilitates connections between various electrical devices and systems.
Safety:Designed to handle overload conditions,reducing the risk of electrical failures.
Applications
Electrical bus bar systems distribute power in power supply systems. High-rated current is distributed through non-insulated bus bars for either a high-voltage or a low-voltage application in factories. Electrical bar systems are used in renewable energy sources like wind turbines, solar panels,and batteries.
Industrial Facilities:Used in factories for power distribution.
Electrical Substations:Critical for connecting transformers and other equipment.
Data Centers:Provides reliable power distribution for servers and IT equipment.
Renewable Energy Systems:Integrates power from various renewable sources.
THE TYPES OF THE BUS BAR
Bus bars come in various types, each designed for specific applications and requirements.
Solid Bus Bar
Description: A solid, typically rectangular or square conductor made from copper or aluminum.
Usage: Used in low to medium voltage applications for power distribution.

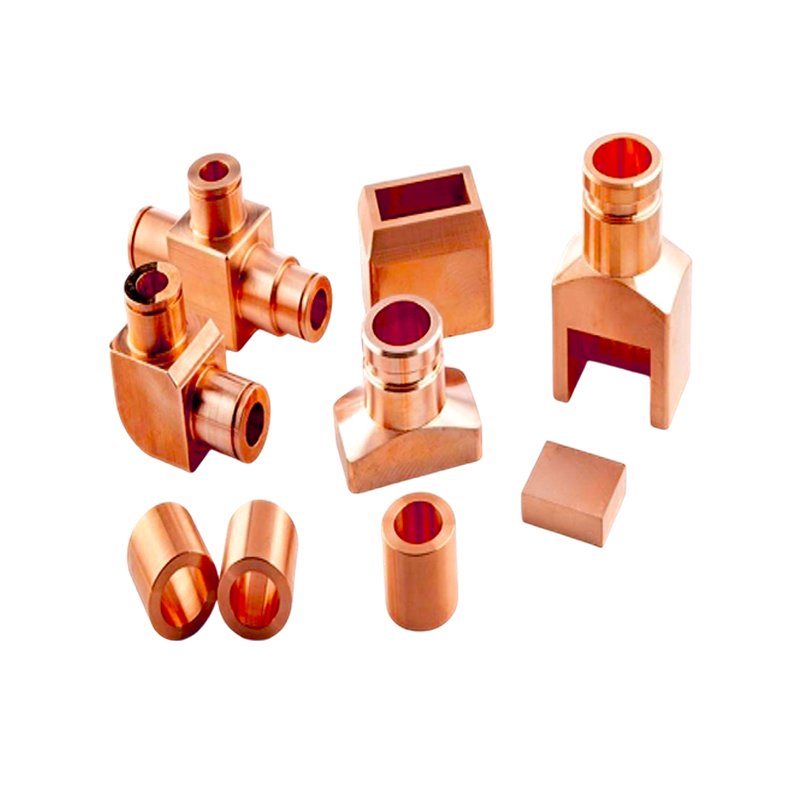

Hollow Bus Bar
Description: A tube-shaped conductor that can be either square or round.
Usage: Often used in high-current applications, as it can dissipate heat more effectively.

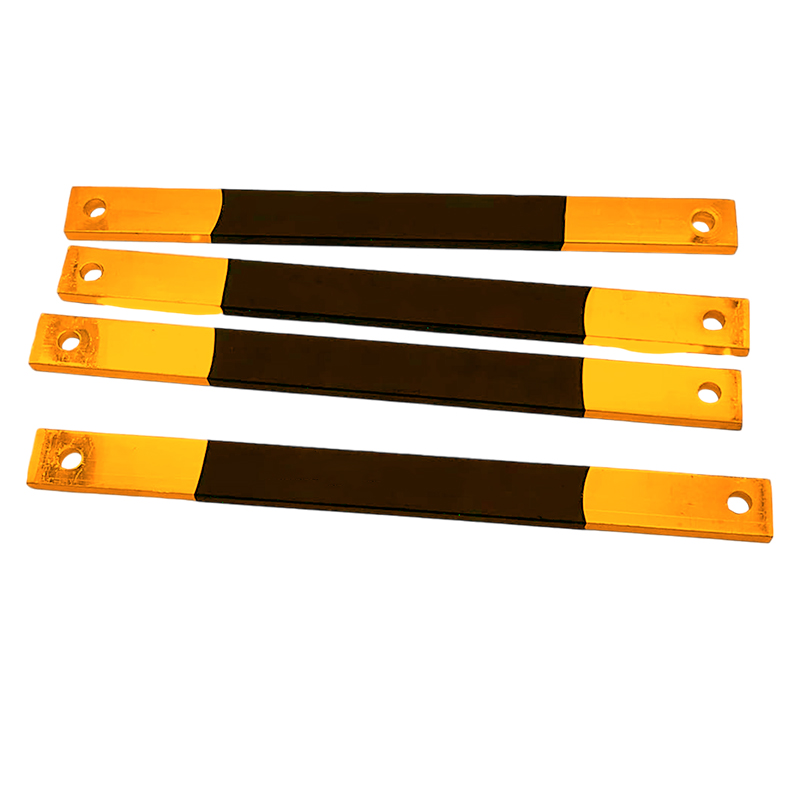

Flat Bus Bar
Description: A flat, rectangular strip of conductive material.
Usage: Commonly used in switch gear and distribution boards for efficient space utilization.
Insulated Bus Bar
Description: A bus bar covered with insulating materials to prevent electrical contact.
Usage: Used in environments where safety is a concern, such as in power plants and substations.
Flexible Bus Bar
Description: Made of multiple thin conductors, allowing for flexibility.
Usage: Used in applications where movement or vibration occurs, such as in certain industrial settings.
Bus Duct
Description: A system of bus bars enclosed in a metal housing for protection.
Usage: Used for high-current distribution in large buildings or industrial plants.
Transition Bus Bar
Description: Connects different voltage levels or types of bus bars.
Usage: Used in substations and distribution systems to manage various electrical connections
Combined Bus Bar
Description: Integrates both positive and negative bus bars in a single unit.
Usage: Used in battery systems and electric vehicles to simplify wiring.
