CNC MACHINING SERVICE
![CNC TURNING Machining Parts 11]( "CNC TURNING Machining Parts 11")
What’s the CNC Machining?
Computer Numerical Control (CNC) is an automated manufacturing process that controls and operates machinery—such as lathes, mills, drills, and more. It has evolved the manufacturing industry as we know it, streamlining the production process and allowing complex tasks to be done with precision and efficiency.
When a CNC system is activated, the desired cuts are programmed into the software and dictated to corresponding tools and machinery,which carry out the dimensional tasks as specified,much like a robot.
In CNC programming,the code generator within the numerical system will often assume mechanisms are flawless,despite the possibility of errors,which is greater whenever a CNC machine is directed to cut in more than one direction simultaneously.The placement of a tool in a numerical control system is outlined by a series of inputs known as the part program.
With a numerical control machine,programs are inputted via punch cards.By contrast, the programs for CNC machines are fed to computers through small keyboards.CNC programming is retained in a computer’s memory.The code itself is written and edited by programmers. Therefore, CNC systems offer far more expansive computational capacity.Best of all,CNC systems are by no means static since newer prompts can be added to pre-existing programs through revised code.
![CNC TURNING Machining Parts 3]( "CNC TURNING Machining Parts 3")
What is a CNC machine and how does it work?
A CNC machine is a type of machinery operated by computers and used for the fabrication of different parts and goods.CNC machines might be used to print,cut materials,manipulate parts, create goods from scratch,and more.They eliminate the need for a human operator to control the tools manually,thus improving accuracy and consistency in production.
CNC machines work by carrying out pre-programmed sequences of commands from computer software.These advanced machines do not require manual control (e.g. no hand levers or wheels). Rather,they function using CNC machining language -called G-code and M-code-which gives the machines precise measurements for production,like feed rate,speed,location,and coordination.
CNC machines have a microcomputer that is stored inside the machine’s control unit (MCU).With each task the machine has to complete (e.g. cutting metal parts),the MCU receives a customized code that tells the machine exactly what to do.This code is developed using blueprints or computer-aided design (CAD) drawings and then loaded onto the machine to begin operations. G-code controls the movement and function of a machine.M-code is used to control the operation’s external movements.These codes can be written manually or generated by CAD and CAM software.
![CNC TURNING]( "CNC TURNING")
CNC TURNING
![CNC MILLING]( "CNC MILLING")

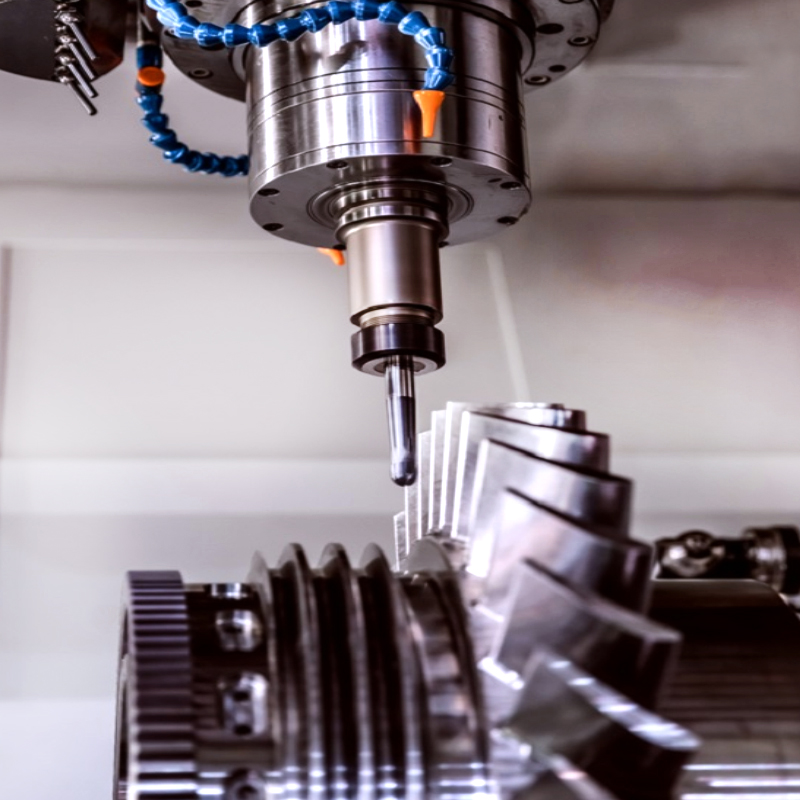

CNC MILLING
![CNC PLASMA CUTTING]( "CNC PLASMA CUTTING")

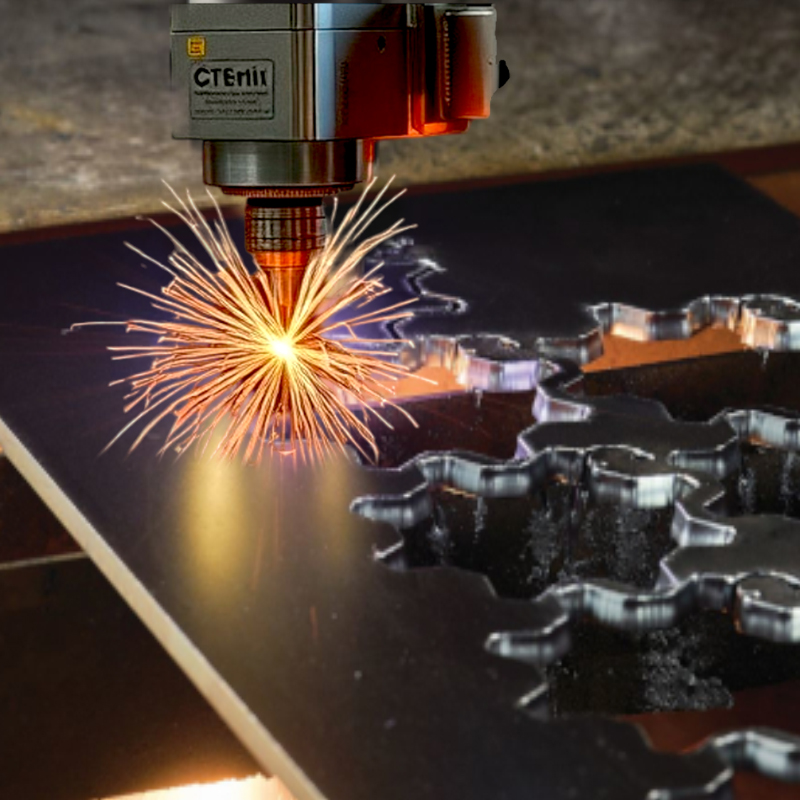

CNC PLASMA CUTTING
![CNC DRILLING]( "CNC DRILLING")

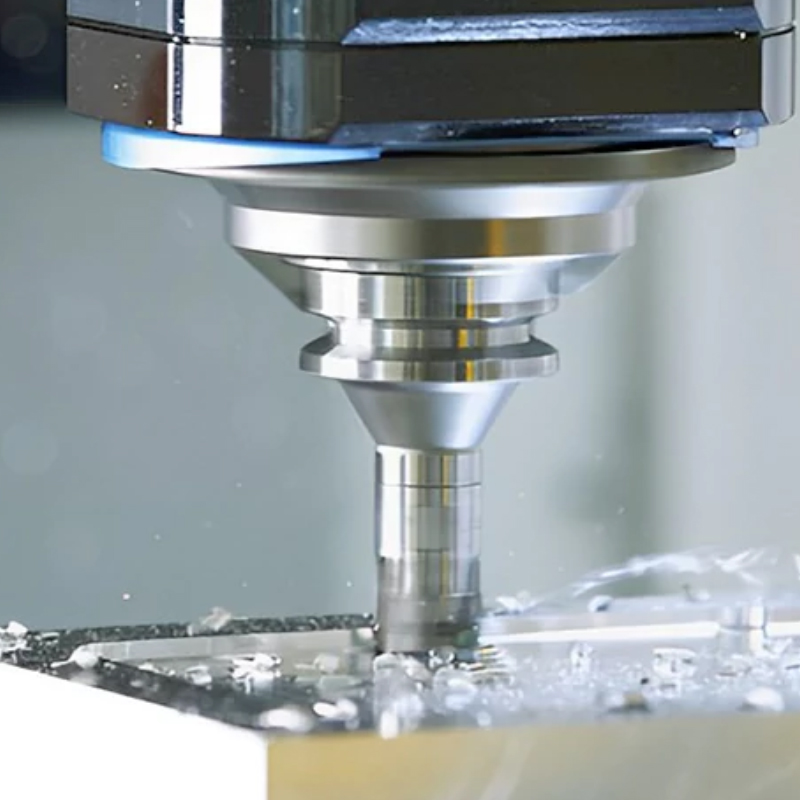

CNC DRILLING
![CNC BORING]( "CNC BORING")
CNC BORING
The CNC Machine Types
![Company Profile 5]( "Company Profile 5")
While CNC machines are largely automated, machinists are still needed to ensure proper operations and performance.So,once a machine is programmed and coded,A CNC machine operator is needed to step in. This machinist will conduct a test run to ensure everything is working properly before the manufacturing can fully begin. Otherwise, there is a risk of damage to the machine and/or product.
1. CNC Milling Machines
Description: Use rotating cutting tools to remove material from a workpiece. They can perform a variety of operations, including drilling, boring, and contouring.
Applications: Suitable for creating complex shapes and parts in various materials.
2. CNC Lathes
Description: Rotate the workpiece against a stationary cutting tool to shape cylindrical parts. They are ideal for creating round parts, shafts, and fittings.
Applications: Commonly used in automotive and aerospace industries for precision components.
3. CNC Plasma Cutters
Description: Use a plasma torch to cut through metal sheets. They are effective for cutting thick materials and can handle various metals.
Applications: Widely used in fabrication shops and for metal art.
4. CNC Laser Cutters
Description: Use a focused laser beam to cut or engrave materials with high precision. They can work on metals, plastics, wood, and more.
Applications: Popular for signage, detailed engravings, and cutting complex shapes.
5. CNC Routers
Description: Similar to milling machines, but typically used for softer materials like wood, plastics, and composites. They can create intricate designs and shapes.
Applications: Commonly used in woodworking, signage, and furniture making.
6. CNC Wire EDM (Electrical Discharge Machining)
Description: Uses a thin wire electrode to cut through conductive materials using electrical discharges. It allows for high precision and intricate shapes.
Applications: Ideal for tooling, die making, and complex geometries.
7. CNC Waterjet Cutters
Description: Use high-pressure water mixed with abrasive materials to cut through various materials. They can cut thick materials without heat distortion.
Applications: Suitable for metals, stone, glass, and more.
8. CNC 3D Printers
Description: Build parts layer by layer using additive manufacturing techniques. They can work with various materials, including plastics and metals.
Applications: Used for prototyping, custom parts, and complex geometries.
THE CNC USAGES FOR DIFFERENTS INDUSTRY
![PRECISION MACHINING(1920X400)2]( "PRECISION MACHINING(1920X400)2")
CNC (Computer Numerical Control) technology is widely used across various industries due to its precision, efficiency, and versatility.
1. Manufacturing
Precision Parts Production: CNC machines are used to produce high-precision components for industries such as automotive, aerospace, and electronics.
2. Metal Fabrication
Cutting and Shaping: CNC milling, turning, and laser cutting are commonly employed to shape metals into specific parts and assemblies.
3. Woodworking
Furniture and Fixtures: CNC routers are used for creating intricate designs, custom furniture, cabinetry, and decorative elements.
4. Sign Making
Custom Signs: CNC laser cutters and routers are used to create detailed signs from various materials, including wood, acrylic, and metal.
5. Prototyping
Rapid Prototyping: CNC machines enable quick and accurate production of prototypes for product development and testing.
6. Tooling and Molds
Die and Mold Making: CNC machines are essential for creating precision molds and dies for injection molding and casting processes.
7. Aerospace Components
Complex Parts: CNC technology is crucial in manufacturing intricate parts for aircraft and spacecraft, where precision is critical.
8. Medical Devices
Surgical Instruments: CNC machining is used to produce high-precision medical instruments and devices, ensuring reliability and safety.
9. Jewelry Making
Detailed Designs: CNC machines enable the creation of intricate patterns and designs in jewelry, enhancing customization and production efficiency.
10. Automotive Parts
Component Manufacturing: CNC machines are used to produce engine parts, transmission components, and other critical automotive components.
11. Electronics
Circuit Board Production: CNC drilling and milling are used to create printed circuit boards (PCBs) and enclosures for electronic devices.
THE CNC MACHINING FEATURES
![bjt]( "bjt")
CNC Machining has several distinctive features that contribute to its widespread use in manufacturing and production processes:
1. High Precision and Accuracy
Tight Tolerances: CNC machines can achieve precise dimensions and repeatability, making them ideal for applications that require high accuracy.
2. Automation
Reduced Manual Intervention: CNC machining is automated, allowing for continuous production without the need for constant operator input, which increases efficiency.
3. Versatility
Wide Range of Materials: CNC machines can work with various materials, including metals, plastics, wood, and composites, making them adaptable for different industries.
4. Complex Geometries
Intricate Designs: Capable of producing complex shapes and detailed features that would be difficult or impossible to achieve with manual machining.
5. Consistency and Repeatability
Uniform Quality: Once programmed, CNC machines can produce identical parts consistently, ensuring high-quality production runs.
6. Speed and Efficiency
Rapid Production: CNC machining can significantly reduce manufacturing time, allowing for faster turnaround on projects and high-volume production.
7. Ease of Programming
User-Friendly Software: Modern CNC machines are often equipped with intuitive software, making it easier to create and modify designs.
8. Minimal Waste
Material Optimization: CNC machining can be programmed to maximize material usage, reducing scrap and waste during the manufacturing process.
9. Enhanced Safety
Reduced Operator Risk: Automated processes minimize the need for manual handling of tools and materials, reducing the risk of accidents.
10. Flexibility for Design Changes
Quick Adjustments: CNC machines can be easily reprogrammed to accommodate design changes or new projects, enhancing adaptability.
