What Is CNC Sheet Metal Bending?

CNC sheet metal bending is one of the most important manufacturing processes in modern metal fabrication. It transforms flat metal sheets into precise three-dimensional components used in industries such as automotive, aerospace, electronics, construction, medical equipment, telecommunications, energy, and industrial machinery. By combining advanced computer numerical control (CNC) technology with high-precision press brake machines, manufacturers can produce complex bent parts with exceptional accuracy, repeatability, and efficiency.

Whether producing a single prototype or thousands of production parts, CNC sheet metal bending provides a reliable and cost-effective solution for creating high-quality metal components. This guide explains how the process works, its advantages, common materials, design considerations, applications, and how to choose the right fabrication partner.

What Is CNC Sheet Metal Bending?

CNC sheet metal bending is a precision forming process that uses a computer-controlled press brake to bend flat sheet metal into predetermined shapes and angles. During the process, the metal sheet is positioned between a punch and a die. The punch applies controlled force, pressing the material into the die to create a permanent bend without removing material.

Unlike manual bending, CNC technology automates machine movement based on digital programming. Every bend is executed according to precise coordinates, ensuring consistent results across every production run. Because no material is cut away during bending, the process preserves the strength of the metal while creating complex geometries with excellent dimensional accuracy.

How CNC Sheet Metal Bending Works

The bending process begins with a carefully designed engineering drawing or 3D CAD model. Manufacturing engineers analyze the part geometry, bend sequence, material type, and tolerance requirements before generating CNC programs for the press brake.

The typical workflow includes the following steps.

1. Material Preparation

Flat metal sheets are first cut to the required dimensions using laser cutting, plasma cutting, or turret punching machines. Accurate blank dimensions are critical because they directly affect the final bending accuracy.

2. CNC Programming

Operators create a CNC program that defines:

· Bend angles

· Bend sequence

· Back gauge positions

· Punch selection

· Die selection

· Pressing force

· Material compensation

Modern software can automatically simulate the entire bending process to detect potential collisions or manufacturing issues before production begins.

3. Machine Setup

Appropriate tooling is installed according to the job requirements. Different punch and die combinations are selected depending on:

· Material thickness

· Material type

· Required bend radius

· Part geometry

· Production volume

Proper machine setup minimizes errors and improves production efficiency.

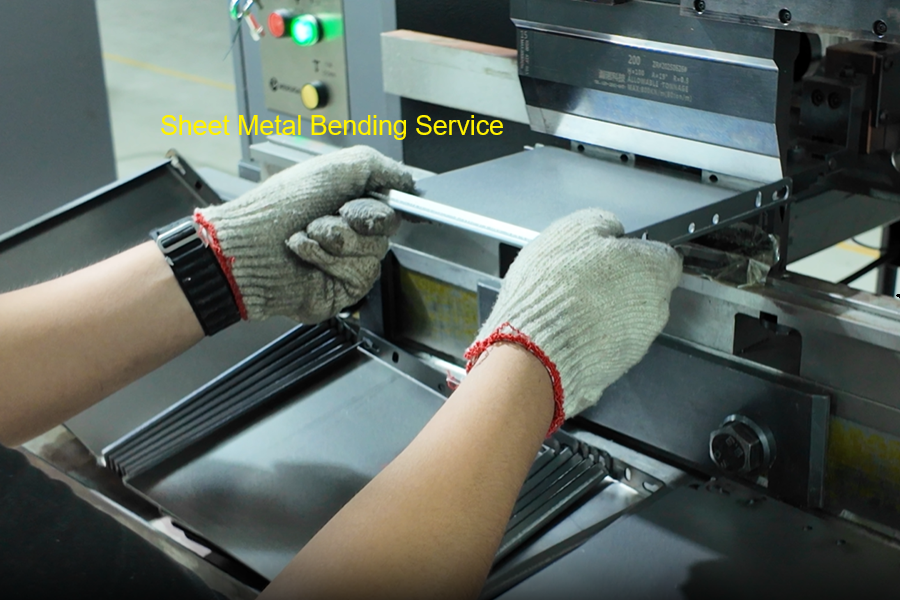

4. Positioning the Metal Sheet

The operator places the sheet against the CNC-controlled back gauge, which automatically positions the material with exceptional accuracy. This eliminates manual measuring and reduces setup time.

5. Forming the Bend

The press brake lowers the punch into the die while applying calculated pressure. Sensors continuously monitor the bending process to ensure the desired angle is achieved. Advanced CNC press brakes often include automatic angle measurement systems that compensate for material springback in real time.

Types of CNC Bending Methods

Different bending methods are used depending on material properties and design requirements.

Air Bending

Air bending is the most widely used technique in sheet metal fabrication. The punch does not completely bottom out in the die, allowing multiple bend angles to be produced with a single set of tooling.

Advantages include:

· Flexible angle adjustment

· Lower tooling costs

· Reduced machine wear

· Faster production

· Suitable for most materials

Bottom Bending

In bottom bending, the punch presses the material firmly into the die cavity. This produces greater accuracy and reduces springback compared with air bending. It is commonly used when tighter tolerances are required.

Coining

Coining applies extremely high pressure to permanently deform the material. This creates highly accurate bends with almost no springback. Although coining offers excellent precision, it requires higher tonnage and increases tooling wear, making it less common for general production.

Design Guidelines for CNC Bending

Proper part design improves manufacturability and reduces production costs.

Recommended practices include:

· Maintain consistent bend radii throughout the design.

· Avoid locating holes too close to bend lines.

· Allow sufficient flange length for tooling access.

· Minimize unnecessary bends.

· Consider material springback during design.

· Use standard tooling whenever possible.

· Provide clear engineering drawings with tolerance requirements.

Collaboration between product designers and fabrication engineers during the design stage often results in significant cost savings.

Choosing a Professional CNC Sheet Metal Bending Manufacturer

Selecting the right fabrication partner is essential for product quality and on-time delivery.

An experienced manufacturer should offer:

· Advanced CNC press brake equipment

· Fiber laser cutting capabilities

· Professional engineering support

· Precision welding services

· Surface finishing options

· Strict quality inspection

· Prototype development

· Flexible production capacity

· Competitive pricing

· Reliable lead times

Manufacturers with ISO-certified quality management systems can further ensure consistent production standards.

Why Choose Wanda-an Sheet Metal Bending Service?

At Wanda-an, we don't just bend metal-we engineer confidence into every angle. Our sheet metal bending service is built on a foundation of CNC precision, where digital control systems eliminate the guesswork of manual operation, ensuring that your first part is identical to your thousandth.

What truly sets Wanda'an apart is our versatility. Whether you need a sleek aluminum enclosure for consumer electronics, a rugged stainless steel bracket for industrial machinery, or a complex multi-angle carbon steel frame, our flexible production line handles it all. We support a wide range of materials, from aluminum and stainless steel to carbon steel, with the capacity to manage both delicate small-batch prototypes and high-volume production runs. This scalability means we grow with your project, not just supply it.
