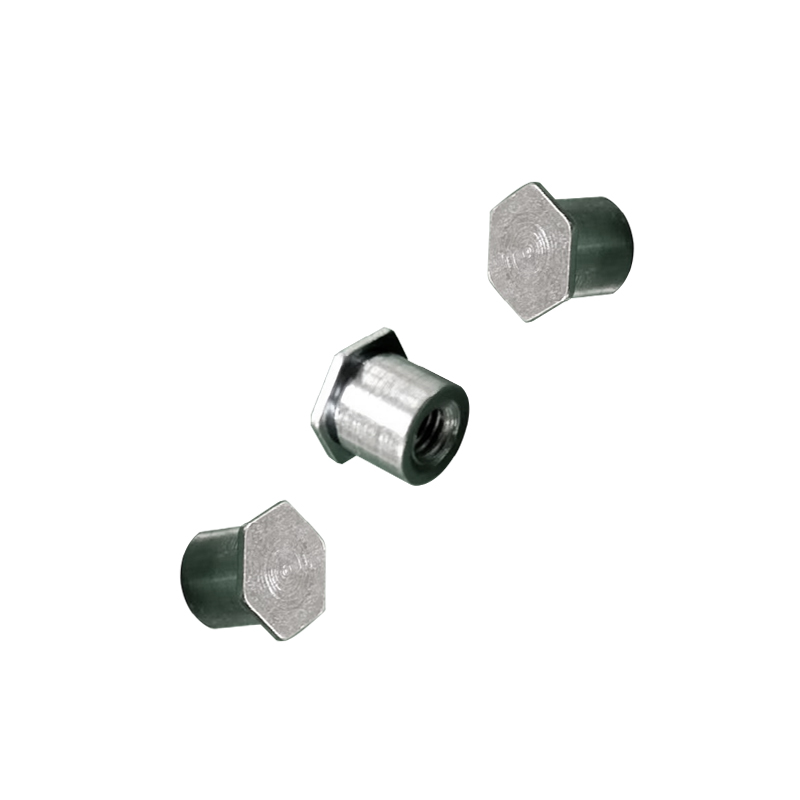

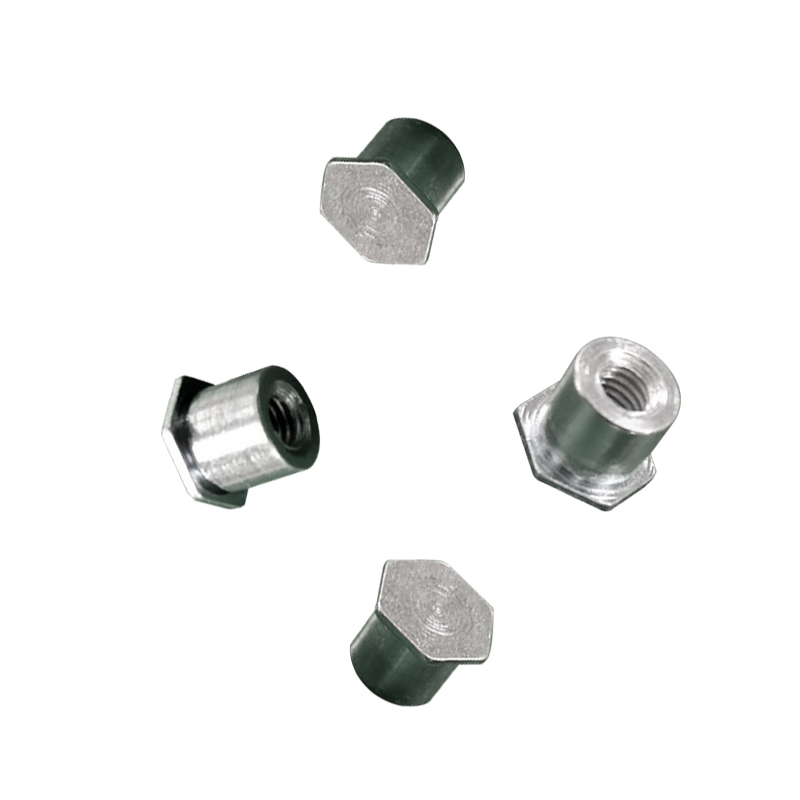

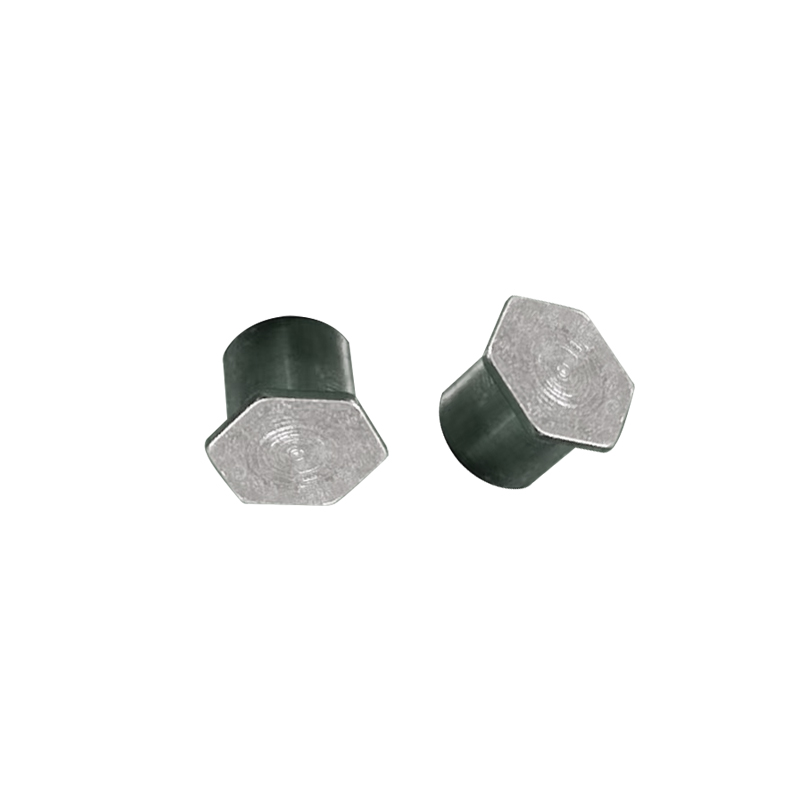

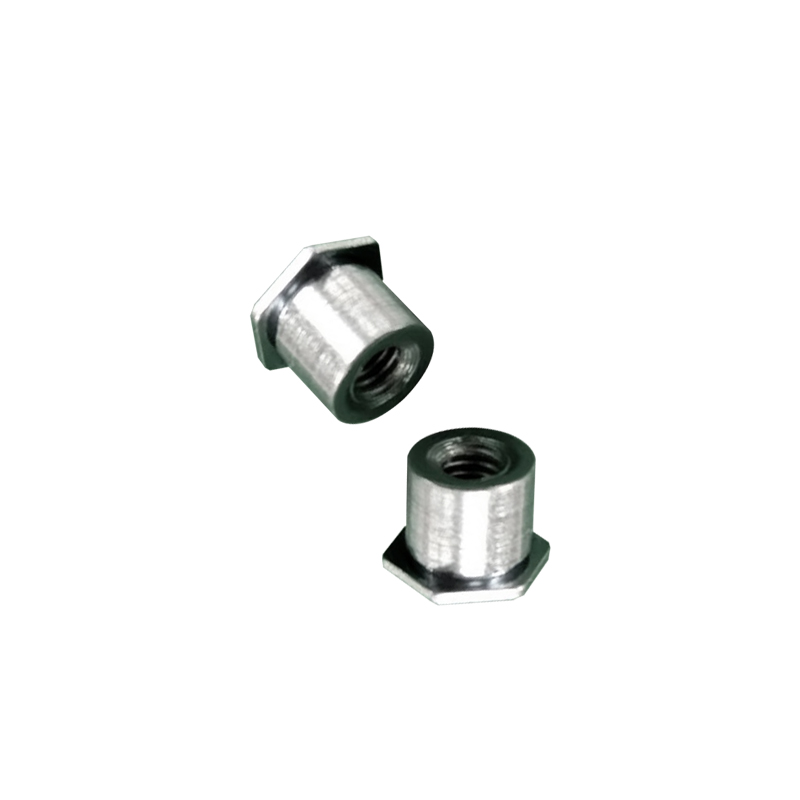

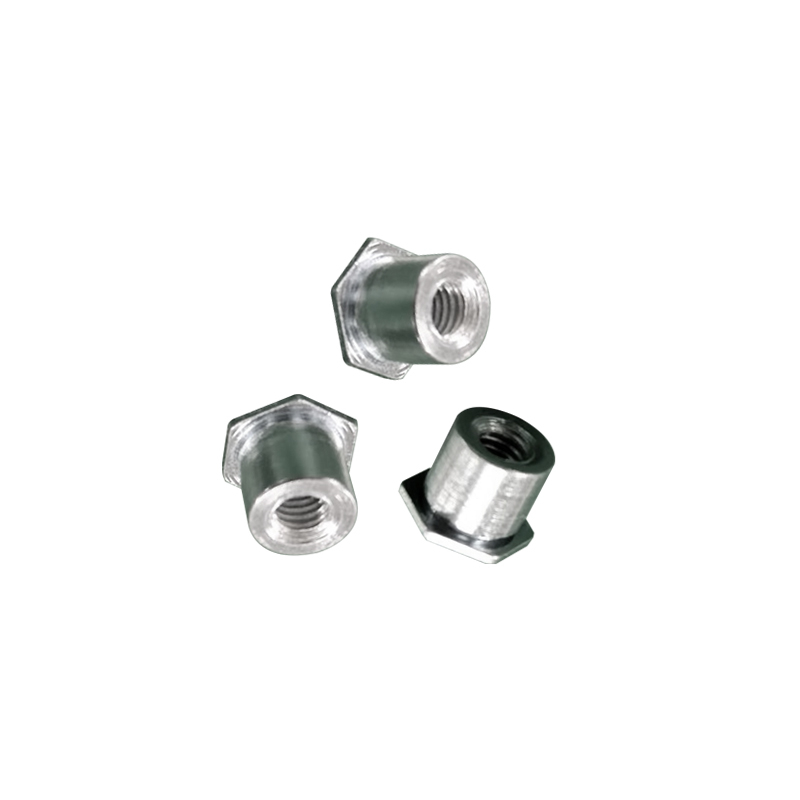

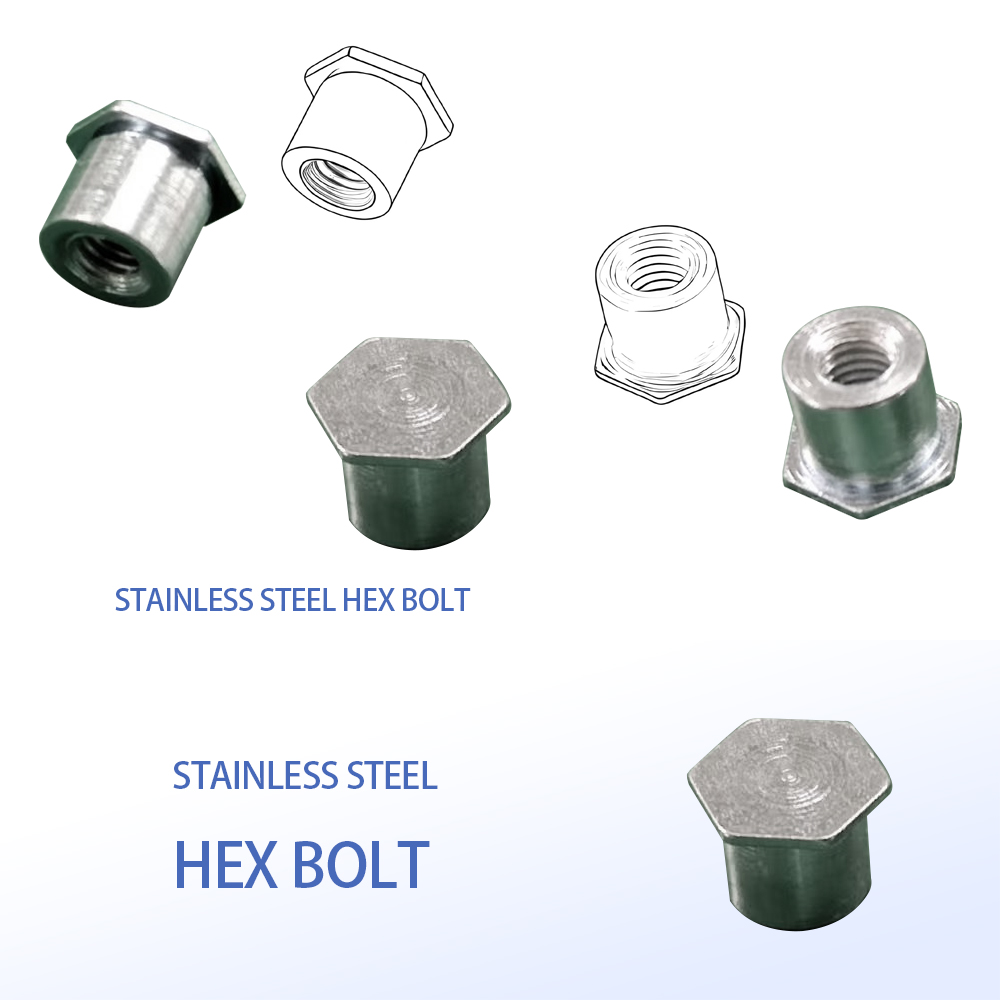

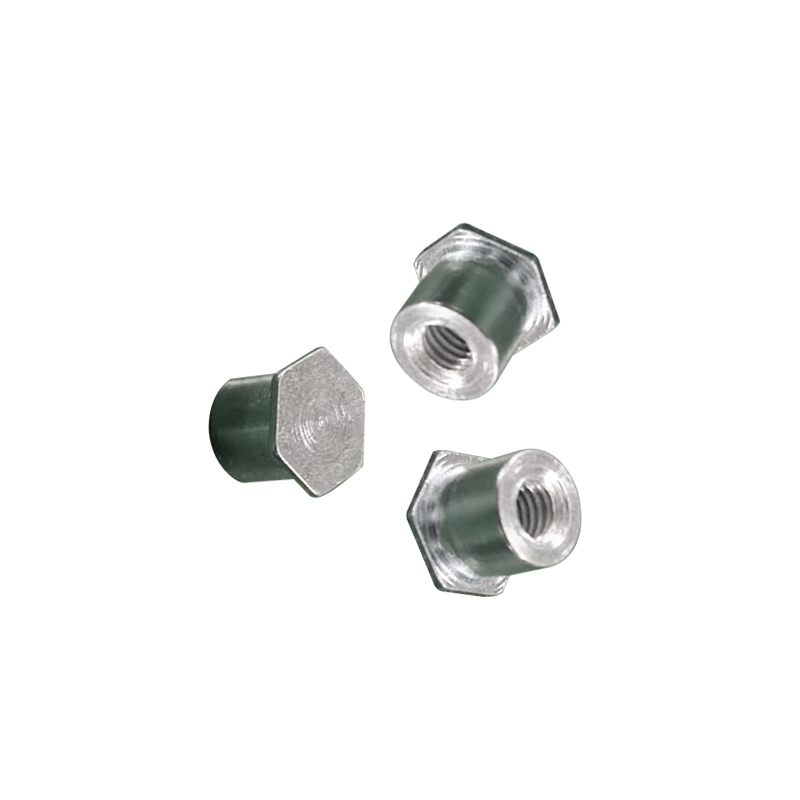

M3 Standoff for Sheet Metal

Custom Standoff for Sheet Metal

Standoff for Sheet Metal:

A standoff for sheet metal is a specialized fastener that provides both a precise spacing function and a secure threaded connection. It allows engineers to mount components such as printed circuit boards (PCBs), panels, and brackets onto thin metal sheets without compromising structural integrity.

What is a Standoff for Sheet Metal?

A standoff is a threaded cylindrical or hexagonal component designed to create a fixed distance between a sheet metal surface and another object. Unlike a simple spacer, which is an unthreaded tube requiring a bolt and nut, a standoff incorporates internal or external threads, allowing a screw to be fastened directly into it. This self-securing feature simplifies as

sembly, reduces part count, and enhances reliability. In sheet metal contexts, standoffs are often permanently attached to the thin metal sheet, providing a robust, vibration-resistant mounting point that can be used repeatedly. The key distinction between a standoff and a spacer is that a standoff is self-retaining and threaded, whereas a spacer is a loose sleeve. Standoffs are indispensable when you need to stack components, maintain electrical clearance, or allow airflow between layers. Wanda-an produces various sheet metal standoffs.

Common Types and Model Numbering Systems

Sheet metal standoffs come in numerous configurations to suit different needs. The following are widely used series:



TSO Series: Through-hole threaded standoffs. They have a through thread, allowing ascrew to pass entirely through the standoff. Commonly used for stacking multiple boards or components.



TSOS Series: Similar to TSO but made of stainless steel for enhanced corrosion resistance. Often used in harsh environments. Model TSOS-M25-400 indicates M2.5 thread, 4 mm length.



TSOA Series: A variant with specific head styles or materials, often aluminum.

CSOs Series: Concealed-head standoffs. The head is embedded in a blind hole, leaving the opposite sheet side smooth.



DSO/DSOS Series: Screwlock standoffs. These have a locking feature to prevent screwsfrom loosening under vibration. Available in steel (DSO) and stainless steel (DSOS).

Materials and Finishes

The choice of material depends on mechanical strength, corrosion resistance, conductivity, and cost:

Stainless Steel: Excellent corrosion resistance and strength. Ideal for outdoor, marine, or medical equipment. Often passivated.

Carbon Steel Standoff: High strength, usually zinc-plated for corrosion protection. Cost-effective for indoor industrial use.

Aluminum Standoff: Lightweight, good corrosion resistance, and non-magnetic. Used in aerospace and portable electronics.

Brass Standoff: Good conductivity and aesthetic appearance. Common in grounding applications.

Here is a summary of common standoff types

Standoff Type	Description	Typical Applications
Self-Clinching Standoffs (TSO, TSOS, TSOA, LSO)	Installed by pressing into a pre-punched or drilled round hole in thin sheet metal. They become a permanent, flush-mounted part of the sheet and provide strong, reusable internal threads.	Electronic enclosures, chassis, brackets, and panels where load-bearing threads are needed in thin metal without additional hardware.
Concealed-Head Standoffs (CSS, CSOS)	Mounted in a blind milled hole, leaving the opposite side of the sheet completely smooth and unmarred. The head is hidden, offering a clean appearance and no protrusion.	Aerospace panels, cosmetic covers, medical device housings, and any application requiring a flush, unbroken surface on one side.
Screwlock Standoffs (DSO, DSOS)	Feature a locking mechanism (often a nylon patch or deformed thread) to resist loosening under vibration. They are installed similarly to self-clinching types and provide a secure, vibration-proof connection.	Automotive electronics, industrial machinery, and other high-vibration environments where joint integrity is critical.
Grounding Standoffs	Specifically designed to ensure reliable electrical bonding between a PCB/component and the chassis. Variants include isolated grounding standoffs and those with integrated blind rivet nuts for one-sided installation.	Data centers, telecom racks, medical/lab equipment, audio systems, and any sensitive electronics requiring EMI shielding or controlled grounding paths.
Male-Female Hex Standoffs	A general-purpose hexagonal standoff with external (male) threads on one end and internal (female) threads on the other. Commonly used with sheet metal by screwing the male end into a tapped hole or securing with a nut. Available in various materials like stainless steel and brass.	Stacking PCBs, mounting sensors, industrial control panels, DIY builds, and general mechanical assembly where precise spacing is needed.

Applications of Sheet Metal Standoffs

Sheet metal standoffs are ubiquitous in electronics and industrial equipment:

PCB Mounting: The most common use. Standoffs elevate PCBs from the metal chassis, preventing short circuits and allowing airflow for cooling. They also provide a secure mechanical anchor.

Server Cabinets and Enclosures: Used to mount backplanes, power supplies, and cable management brackets. Self-clinching standoffs enable quick assembly without loose hardware.

Telecommunications Equipment: Base stations, routers, and switches rely on standoffs for modular assembly and RF grounding.

Automotive Electronics: Under-hood control units use stainless steel standoffs to withstand vibration and temperature extremes.

Signage and Displays: Decorative standoffs create a floating effect for signs and panels, often made of stainless steel or brass for aesthetics.

Industrial Control Panels: Standoffs mount relays, terminals, and PCBs inside enclosures, ensuring proper spacing and insulation.
