M3 Hex Standoff

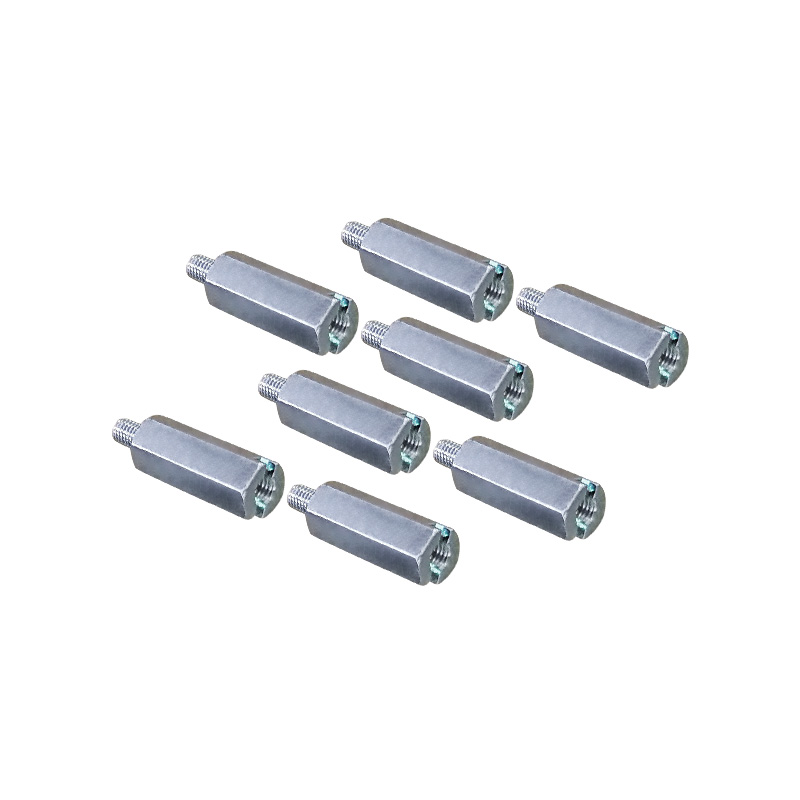

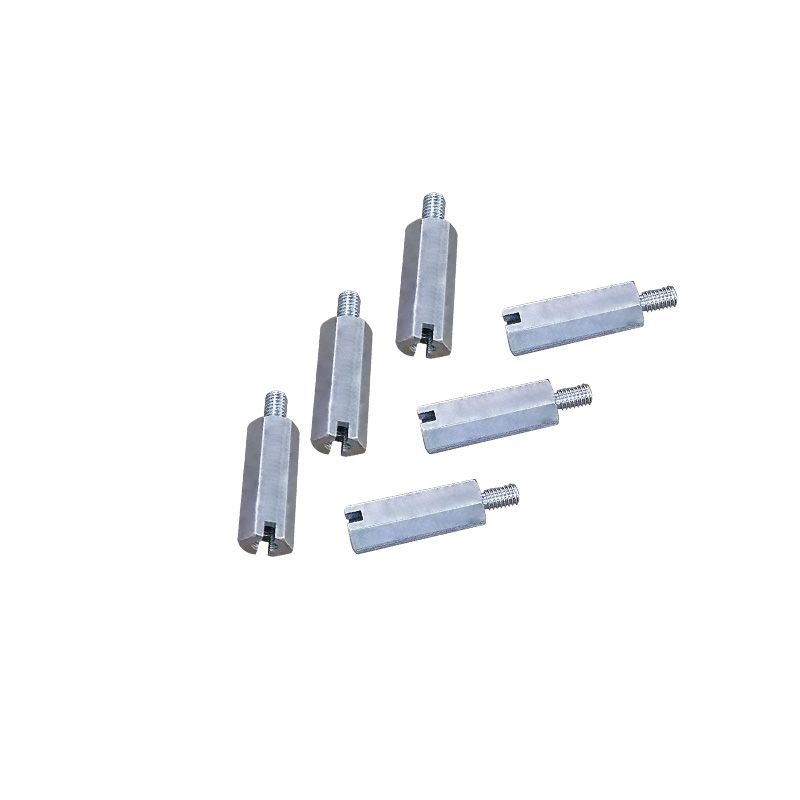

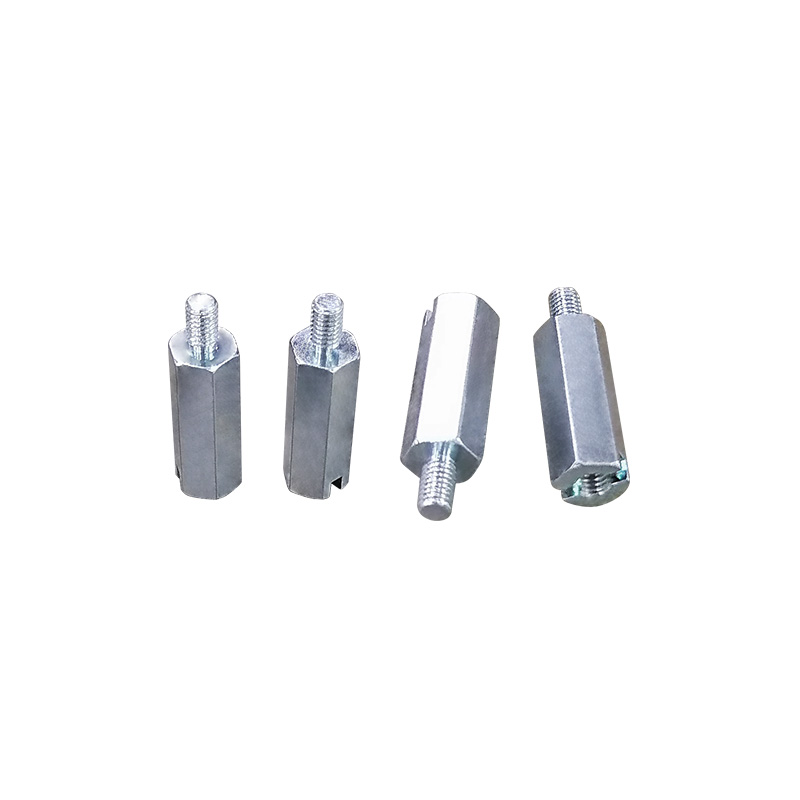

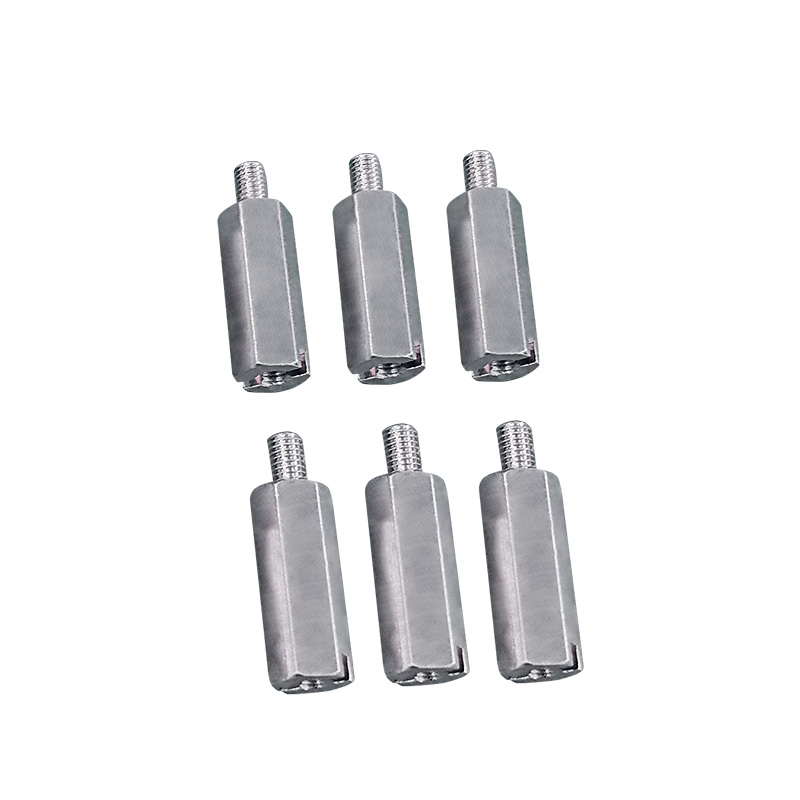

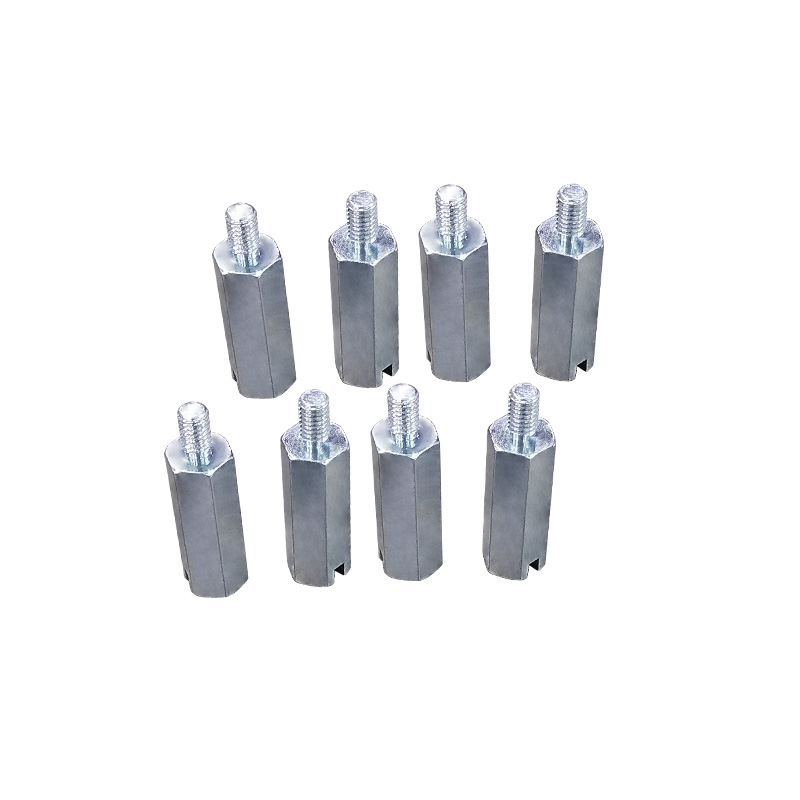

Custom M3 H6 Male-Female Hex Standoff

1, Definition and Basic Characteristics of M3 * H6 Standoff

At Wanda-an, M3 * H6 Standoff, which is a 6mm long isolation column with M3 specifications, is used in electronics, machinery, etc. Its main function is to form a fixed distance between two components, while also having connection, support, or insulation functions. Among them, "M3" represents the thread specification, referring to metric threads with a nominal diameter of 3 millimeters and a pitch of typically 0.5 millimeters; "H6" indicates that the effective length of the isolation column is 6 millimeters, which refers to the vertical distance between two installation surfaces and does not include additional structures such as threaded heads or tails.

From a material perspective, common types of M3  H6 isolation columns include stainless steel 304, aluminum alloy, copper, etc. The isolation column made of stainless steel materialhas excellent corrosion resistance and mechanical strength, making it suitable for use in humidand chemically corrosive environments; Aluminum alloy material is lightweight and has goodthermal conductivity, often used in electronic devices that require heat dissipation and weight, Inaddition, some M3H6 isolation columns will also undergo surface treatment processes such as passivation and electroplating to further enhance their rust prevention and wear resistance.

2, Core functions of M3 * H6 Standoff

The core function of the M3 H6 isolation column can be summarized as "isolation, connection, and support". The first is the "isolation" function, which can form fixed gaps between the circuit board and the chassis, as well as between the heat sink and the chip, to avoid short circuits and wear problems caused by direct contact of components. At the same time, it reserves space for air circulation and improves the heat dissipation efficiency of the equipment. Next is the "connection" function, which can firmly connect two components together through threads or snap-on structures at both ends, replacing traditional screws for direct fixation and reducing pressure on the surface of the components. Finally, there is the "support" function. For some lightweight circuit boards or precision parts, the M3H6 isolation column can provide uniform support force to prevent damage to the components due to deformation and ensure the stability of the equipment.

3, Application of M3 * H6 Standoff

In the field of electronic device manufacturing, M3H6 isolation columns are commonly used accessories in circuit board assembly. For example, in small devices such as routers and set-top boxes, it can fix the motherboard inside the chassis, which not only avoids short circuits between the motherboard and the metal chassis but also forms a heat dissipation channel between the motherboard and the chassis, ensuring long-term stable operation of the device. In industrial automation equipment, stainless steel M3H6 isolation columns are commonly used for the installation of sensors, solenoid valves, and other components. Their corrosion resistance can adapt to the complex environment of factory workshops, ensuring the reliability of the equipment.

Application	Description
PCB Mounting	Securely fasten printed circuit boards (PCBs) to enclosures or chassis, preventing short circuits and ensuring structural stability.
Motherboard Spacing	Maintain consistent spacing between motherboards and computer cases, improving airflow and reducing vibration impact.
Electronics Assembly	Assemble control boards, sensors, and structural components in robotics, drones, and FPV systems with precision alignment.
Industrial Equipment	Position components in communication devices, office machines, and electronic instruments for reliable operation.
Electrical Insulation	Use insulated brass standoffs to isolate conductive surfaces and prevent unintended electrical contact.
3D Printer Construction	Provide durable standoff solutions for securing control boards and structural panels in 3D printer frames.
Thermal Management	Create air gaps between stacked PCBs to enhance heat dissipation in compact electronic devices.
