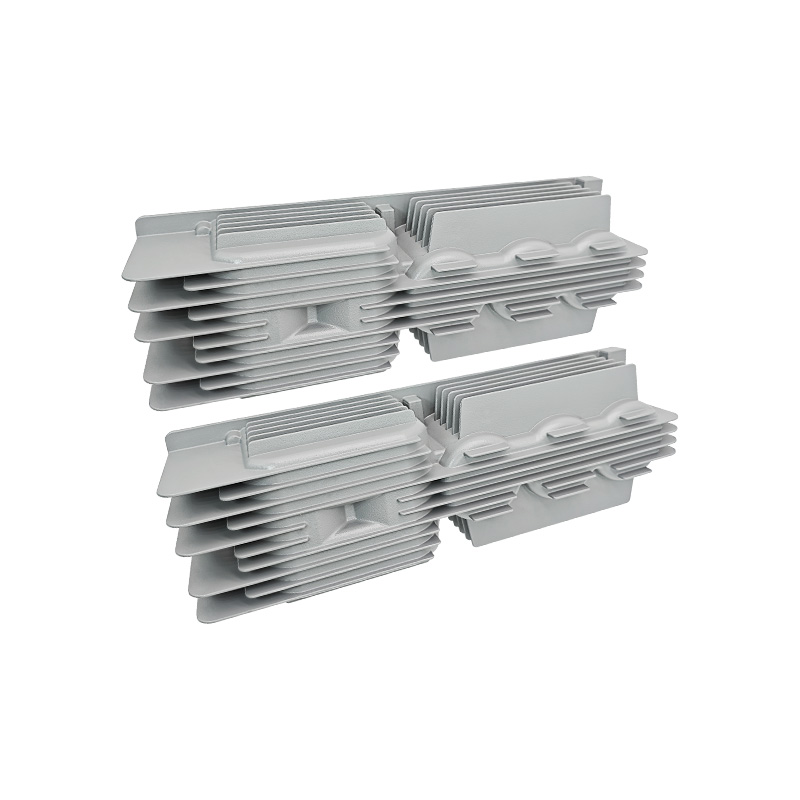

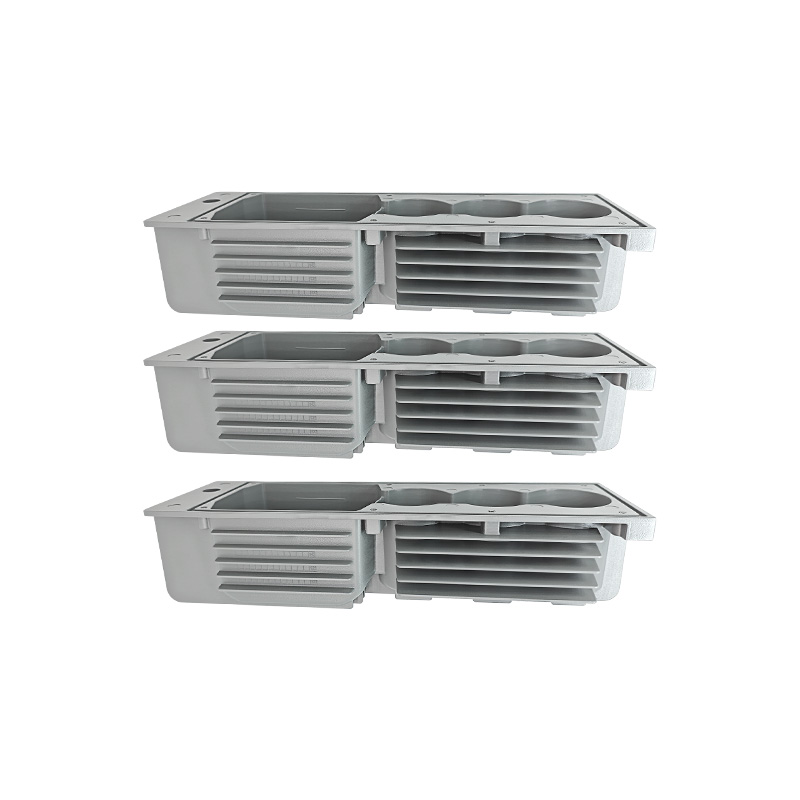

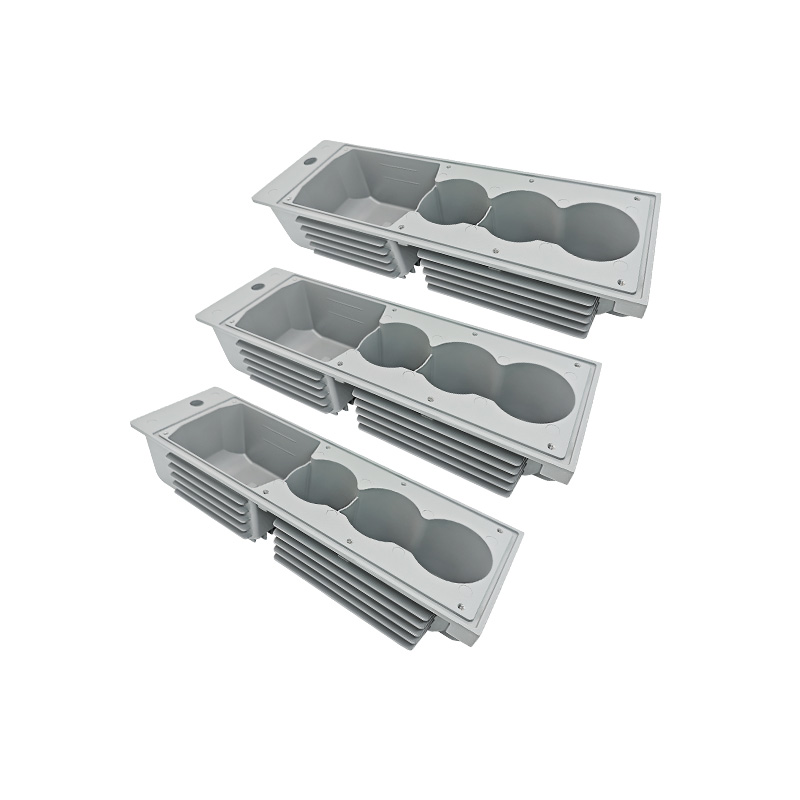

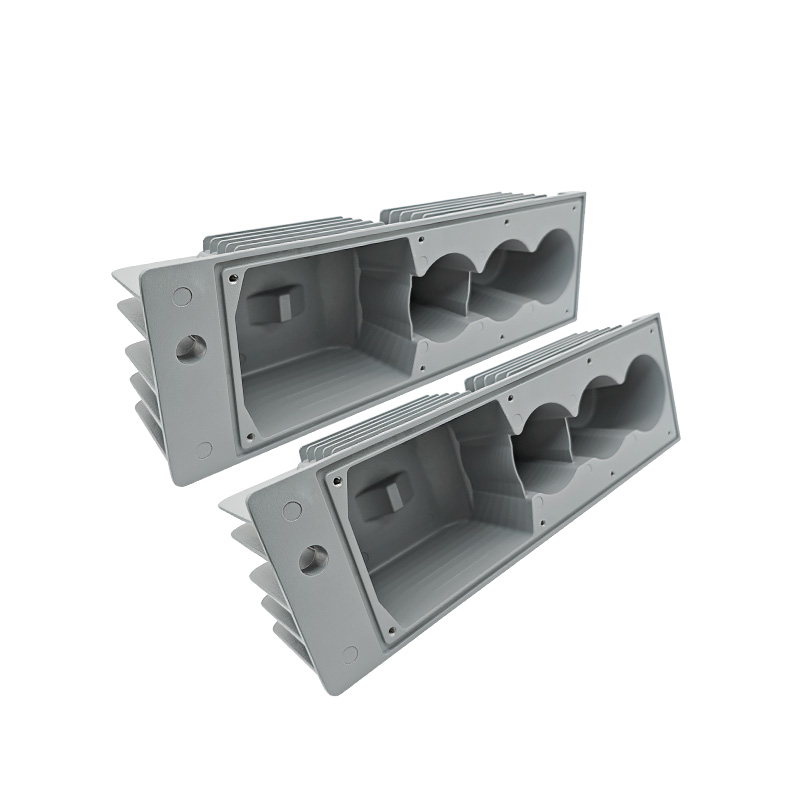

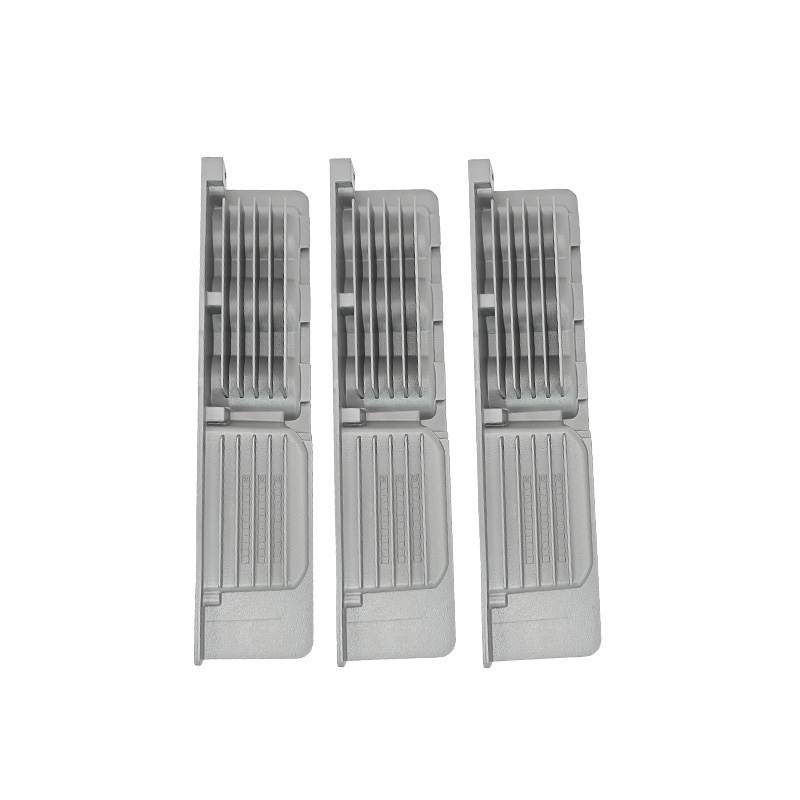

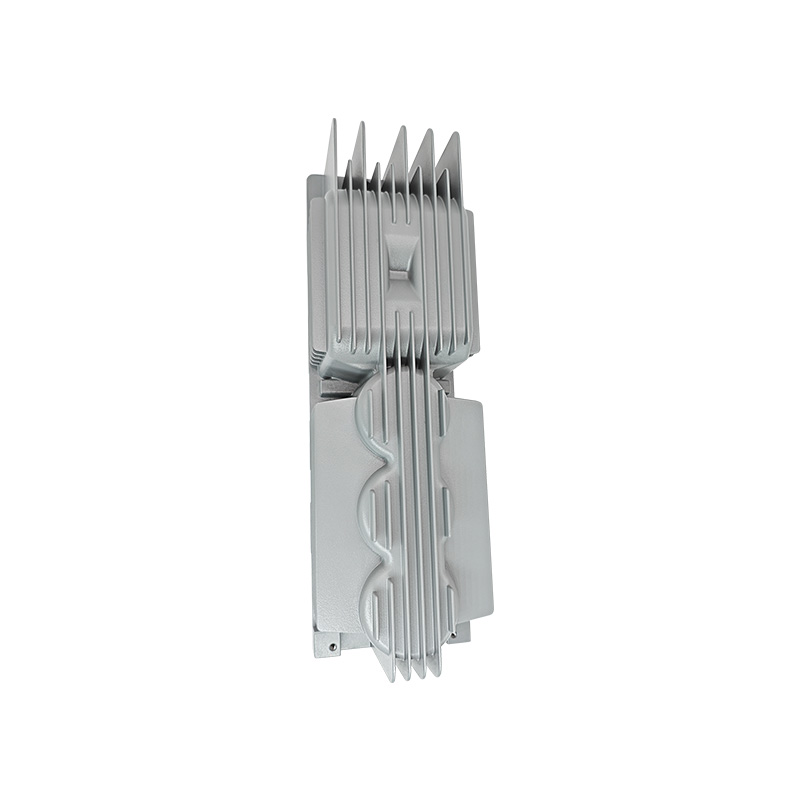

Die-casting Aluminum Heatsink

Die-Casting Aluminum Heatsink Manufacturer

Aluminum heatsinks are critical components in modern thermal management, and die-casting has emerged as one of the most efficient manufacturing methods for producing them. By forcing molten aluminum into precisely engineered molds, die casting enables the creation of complex geometries with thin fins, high surface area, and excellent repeatability - all at a competitive cost-per-unit.

Applications of Die-casting Aluminum Heatsinks

Die-cast aluminum heatsinks serve a wide range of industries where effective heat dissipation is essential for performance and longevity:

·LED Lighting Systems: High-power LEDs generate significant heat. Die-cast heatsinks help maintain luminous efficiency, prevent color shift, and extend the lifespan of streetlights, high-bay fixtures, and industrial luminaires.

·Consumer Electronics: CPUs, graphics cards, power supplies, and mobile computing devices rely on lightweight aluminum heatsinks to manage thermal loads in compact spaces.

·Automotive Electronics: Electric vehicle inverters, onboard chargers, infotainment systems, and LED headlights all require robust thermal solutions that can withstand vibration and temperature fluctuations.

·Telecommunications: Base stations, networking equipment, and 5G infrastructure depend on die-cast heatsinks for reliable outdoor operation in varying environmental conditions.

·Industrial and Medical Equipment: Power inverters, motor drives, and diagnostic imaging devices benefit from the durability and corrosion resistance of die-castaluminum enclosures with integrated heat dissipation features.

Type	Application
High-Pressure Die-Cast Heatsink	Automotive ECU, LED streetlights, telecom base stations
Low-Pressure Die-Cast Heatsink	Large industrial inverters, power modules
Pin-Fin Heatsink	CPU coolers, graphics cards, high-density electronics
Plate-Fin / Straight-Fin Heatsink	LED luminaires, power supplies, industrial drivers
Radial-Fin Heatsink	LED downlights, ceiling-mounted fixtures, round housings
Skived-Fin Heatsink	High-end servers, telecom equipment, IGBT modules
Standalone Heatsink	General electronics cooling, consumer devices
Integrated Enclosure-Heatsink	Outdoor inverters, on-board chargers, sealed electronics
Modular / Stackable Heatsink	High-power rectifiers, industrial motor drives
LED Lighting Heatsink	Streetlights, floodlights, high-bay lights, track lights
Automotive Heatsink	EV inverters, battery thermal management, ADAS modules
Telecom Heatsink	5G base stations, RF amplifiers, networking switches
Consumer Electronics Heatsink	Laptops, gaming consoles, power adapters, set-top boxes
Industrial & Medical Heatsink	Motor drives, welding equipment, medical imaging devices
ADC12 (Al-Si-Cu) Heatsink	General-purpose electronics, LED products
A380 (Al-Si-Cu) Heatsink	Automotive components, high-strength applications

Material Properties and Advantages

·High Thermal Conductivity: Pure aluminum and certain tailored alloys can achieve thermal conductivity values of 170 W/(m-K) or higher without requiring post-casting heat treatment, ensuring efficient heat transfer from the source to the ambient air.

·Lightweight Construction: With a density of approximately 2.7 g/cm3, aluminum heatsinks are roughly one-third the weight of steel equivalents, making them ideal forweight-sensitive applications in aerospace, portable electronics, and automotive systems.

·Complex Geometries: Unlike extrusion, which is limited to uniform cross-sections, die casting can produce non-linear fin shapes, integrated mounting bosses, and contoured bases that maximize surface area within a given footprint.

·Cost Efficiency: High production rates, minimal material waste, and the ability to use recycled aluminum alloys make die casting an economical choice for medium to high-volume production runs.

·Natural Corrosion Resistance: The passive oxide layer that forms on aluminum surfaces provides inherent protection against moisture and mild chemicals, making die-castheatsinks suitable for outdoor and marine applications.

Why Choose Wanda-an Aluminum Heatsink

At Wanda-an, die-casting aluminum heatsinks combine thermal performance, design flexibility, and manufacturing efficiency in a single solution. From LED streetlights and telecom base stations to electric vehicle electronics and consumer devices, their ability to dissipate heat effectively while keeping weight and cost low makes them indispensable across industries. As thermal demands continue to grow, advances in die-casting alloys and process optimization will further expand the capabilities of this essential component. Wanda-an manufactures high-quality aluminum heatsinks for LED, electronics, and industrial use. Custom designs available with fast delivery. Reliable cooling solutions you can trust. Contact us today.
