Custom L-shaped Copper Busbar

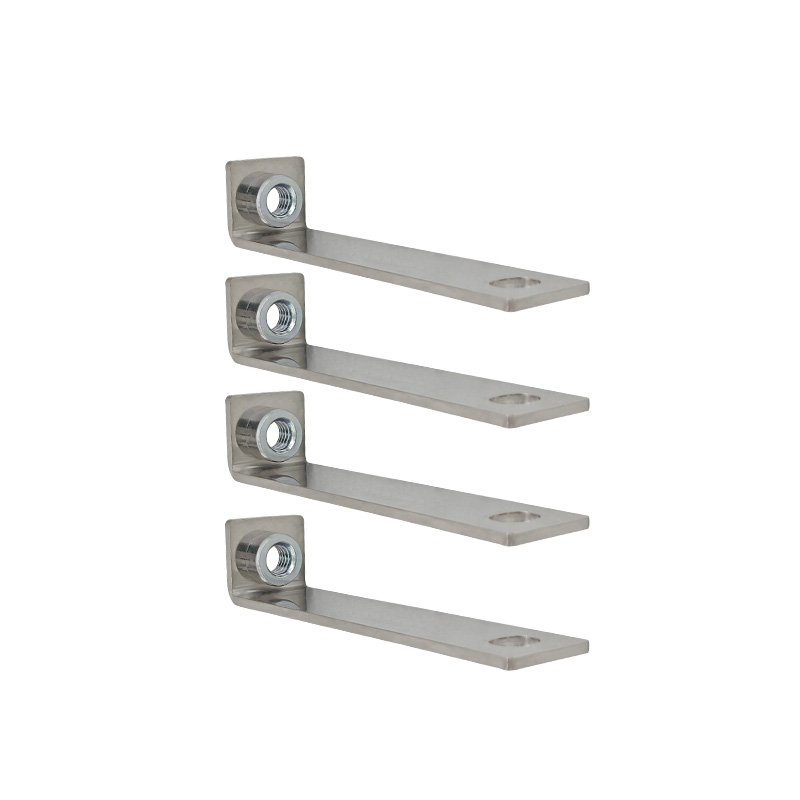

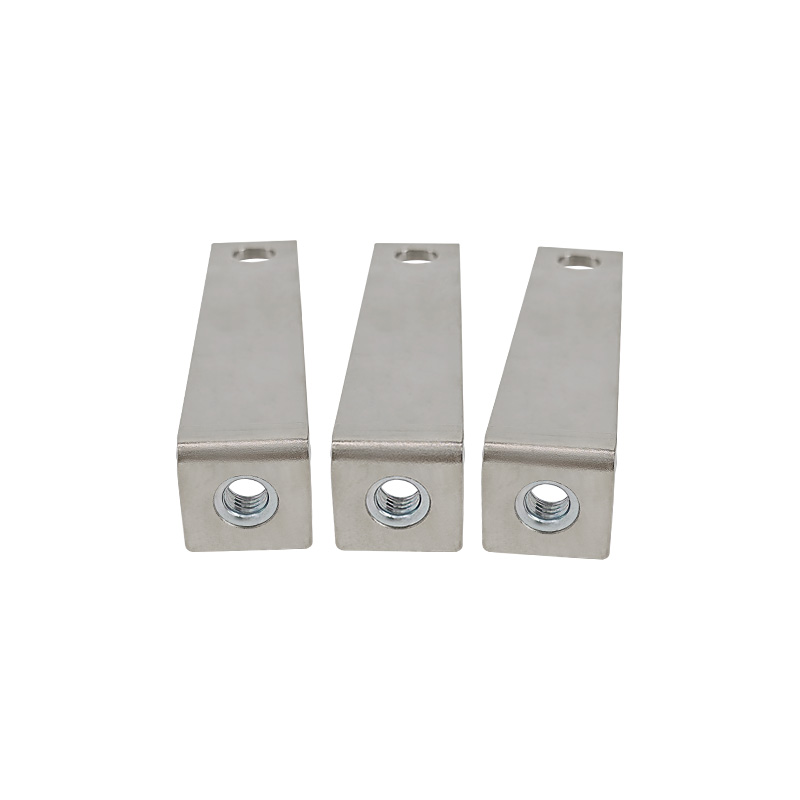

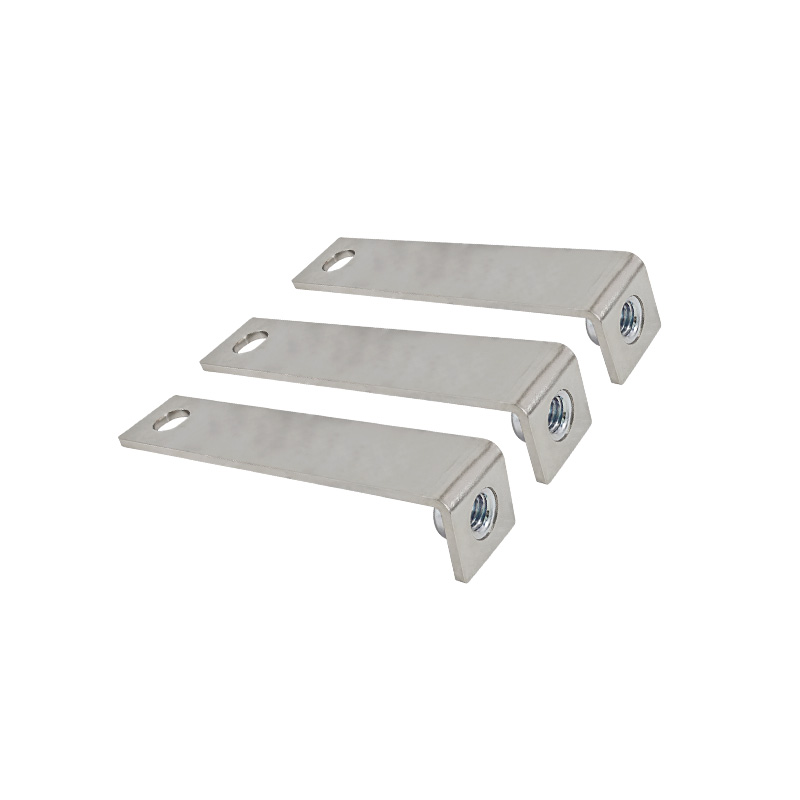

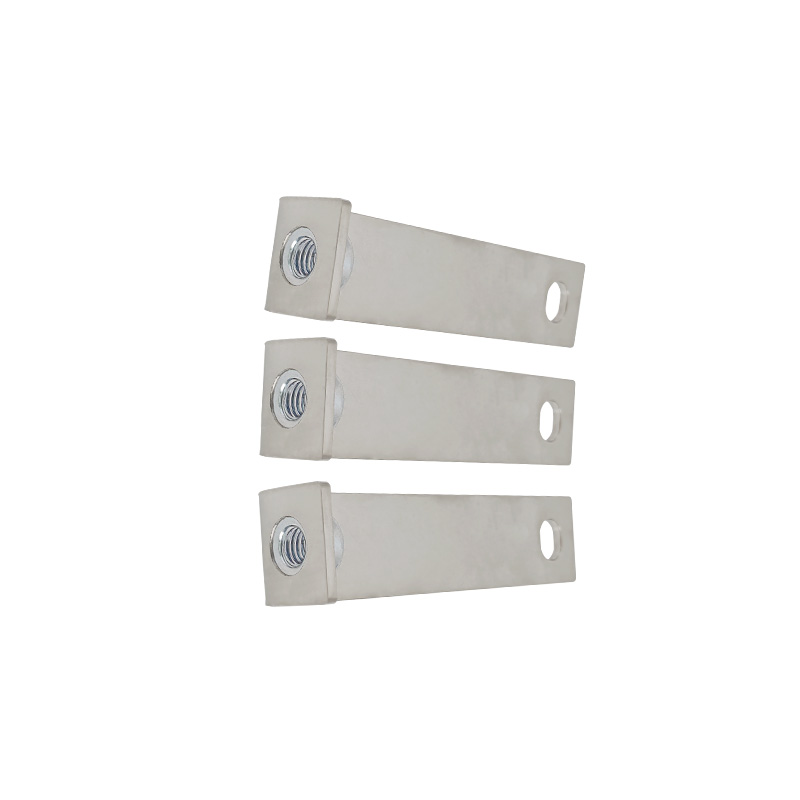

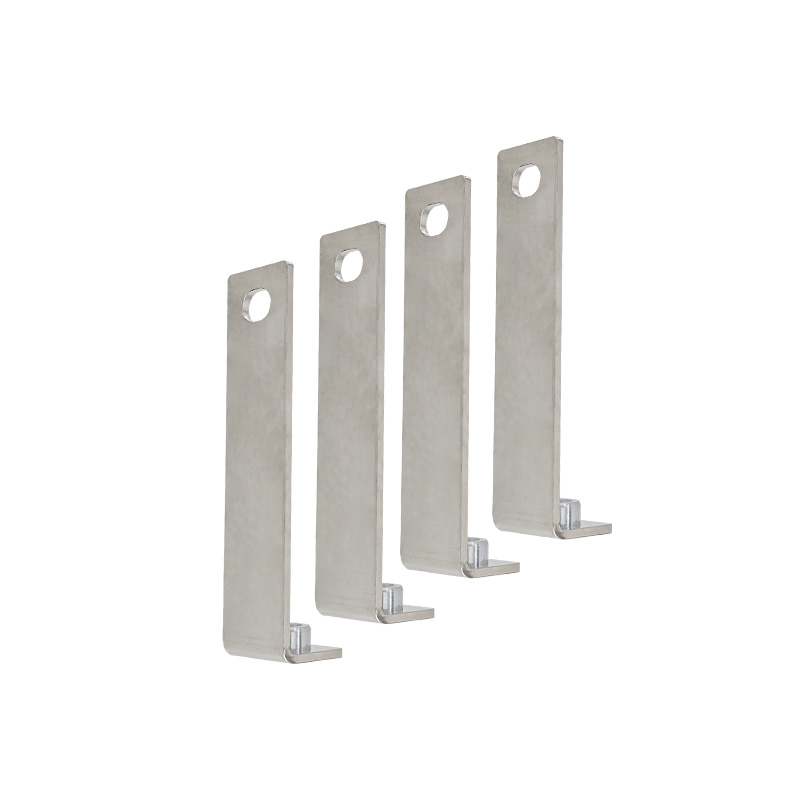

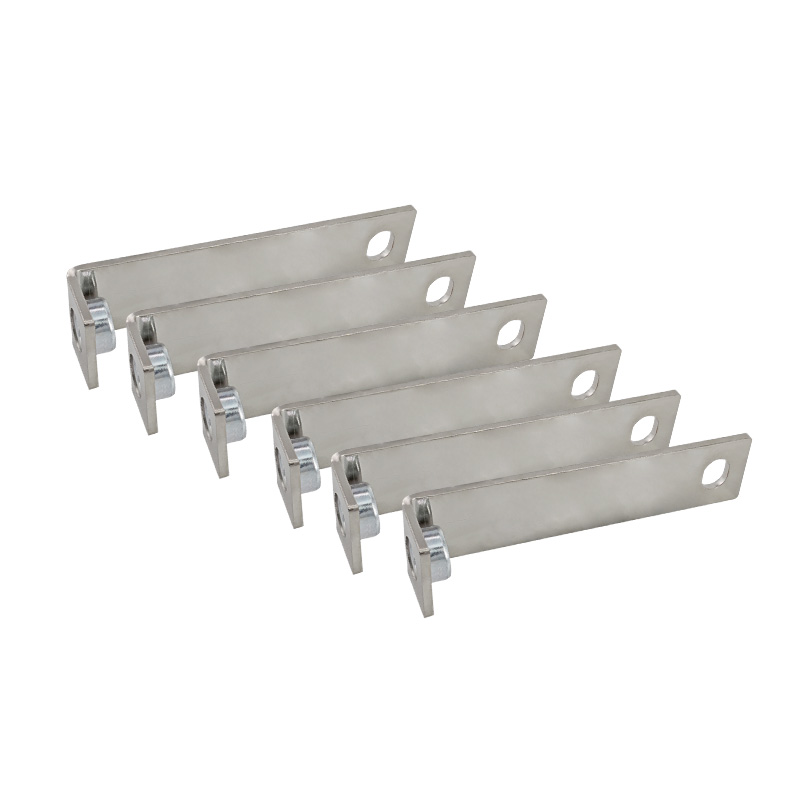

The L-Shaped Copper Busbar is a specialized electrical conductor component, characterized by its distinct L-shaped profile. It is primarily fabricated from high-purity electrolytic copper, which boasts excellent electrical conductivity, thermal conductivity, and corrosion resistance, ensuring efficient current transmission and long-term durability. The component features a flat rectangular base with a perpendicular flange, both ends equipped with pre-installed fasteners for secure mounting, and a polished surface that minimizes electrical resistance.
This busbar finds extensive applications across multiple industries
In the power distribution sector: It is widely used in switchgear, distribution boards, and substations to connect circuit breakers, transformers, and other electrical devices, enabling the safe and efficient diversion of high currents.
Within the renewable energy domain: it plays a crucial role in solar inverters and wind turbines, facilitating the consolidation of currents from multiple photovoltaic panels or generator windings
In the manufacturing of electric vehicles and energy storage systems: It is employed to link battery cells and power modules, supporting the high-current demands of these systems while maintaining structural stability.
| Type | Application | Feature |
| L-shape copper busbar with Insolation Coating | Suitable for outdoor substations, chemical plants | The insulation coating prevents corrosion and short circuits, ensuring stable power transmissionin harsh, high-moisture, or corrosive conditions |
| L-Shaped Copper Busbar with Tin Plating | Data centers, electricvehicle charging stations. | Enhances conductivity and corrosion resistance,reducing energy loss and extending service life. |
| L-Shaped Aluminum-Copper Composite Busbar | Distribution systems, Renewable energy installations | High conductivity of copper with the lightweight and cost-effective properties of aluminum |
| Miniature L-Shaped Copper Busbar | Compact electronic devices, small inverters, and portable power systems. | Its small size and lightweight design fit confined spaces |
At Wnda-an, produces various copper busbars. The L-Shaped Copper Busbar is an indispensable component in modern electrical systems, combining the superior properties of copper with a practical geometric design to meet the diverse needs of power distribution, renewable energy, and advanced manufacturing industries. Its reliability, efficiency, and versatility make it a preferred choice for engineers and technicians worldwide.
The design of the L-Shaped Copper Busbar offers several advantages. Its angular structure optimizes space utilization in confined electrical enclosures, making it ideal for compact installations. The pre-installed fasteners simplify the assembly process, reducing installation time and labor costs. Moreover, the high conductivity of copper minimizes energy losses in the form of heat, enhancing the overall efficiency of electrical systems. To further improve performance, some variants undergo surface treatments such as tin plating or insulation coating, which enhance corrosion resistance and electrical insulation properties.
