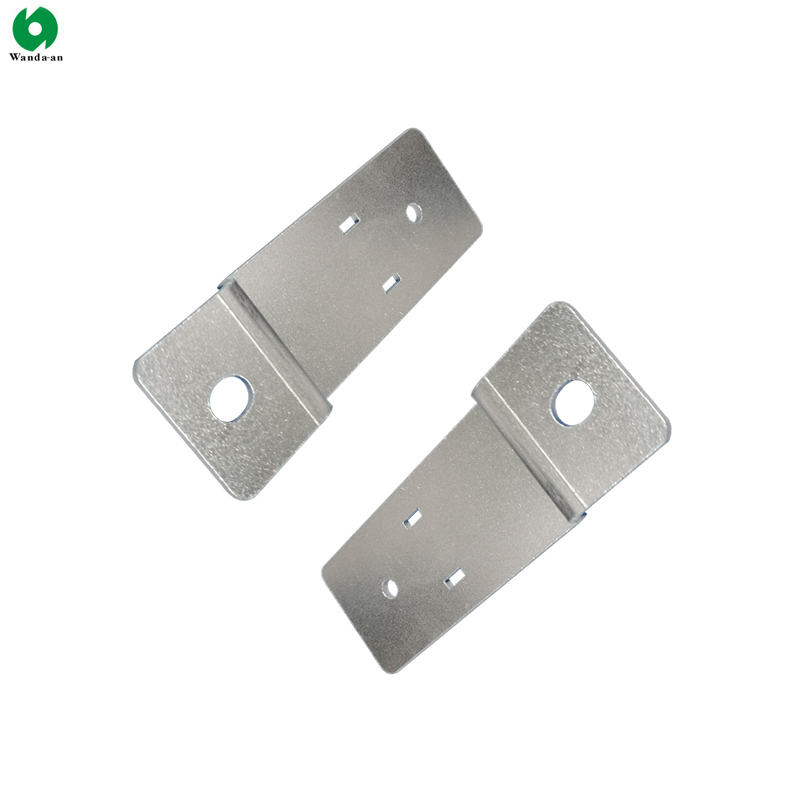

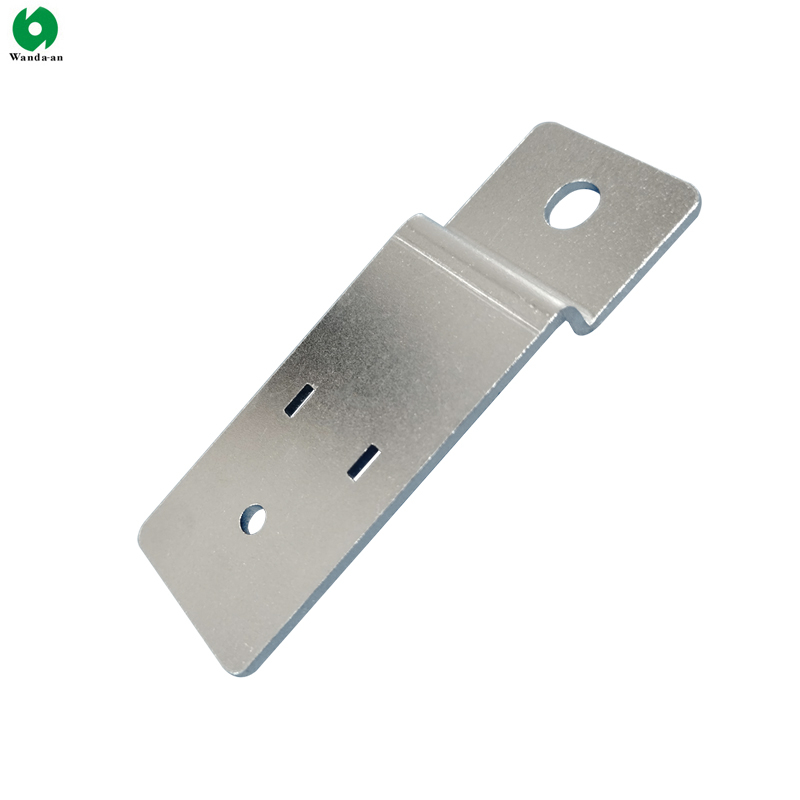

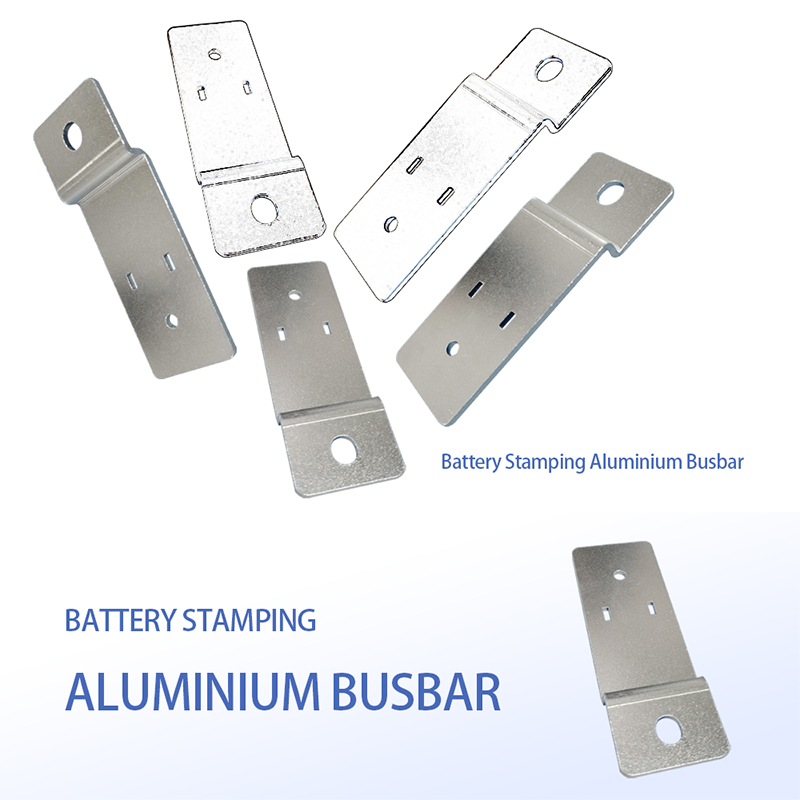

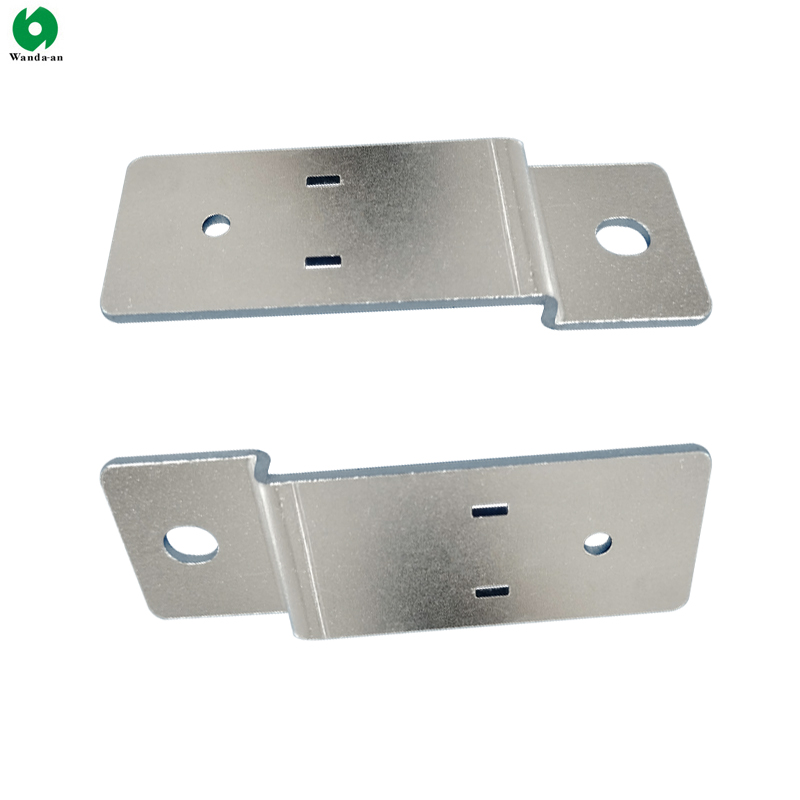

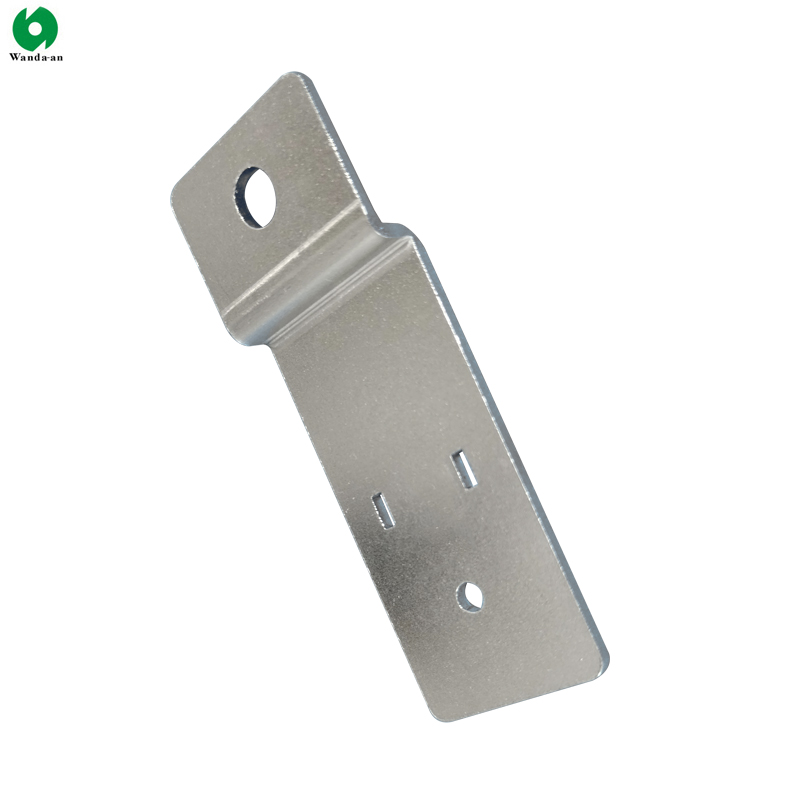

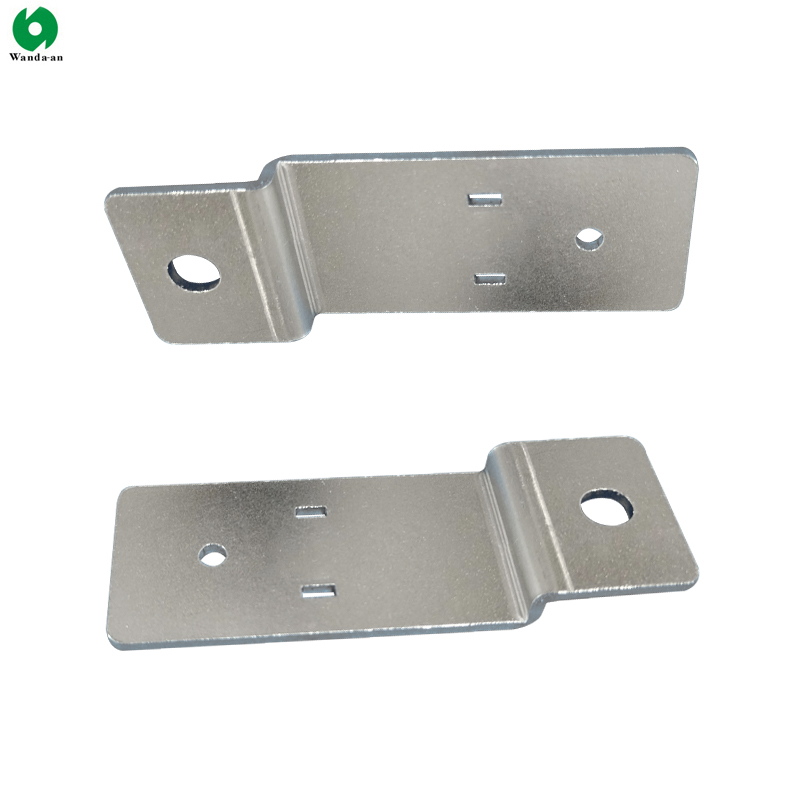

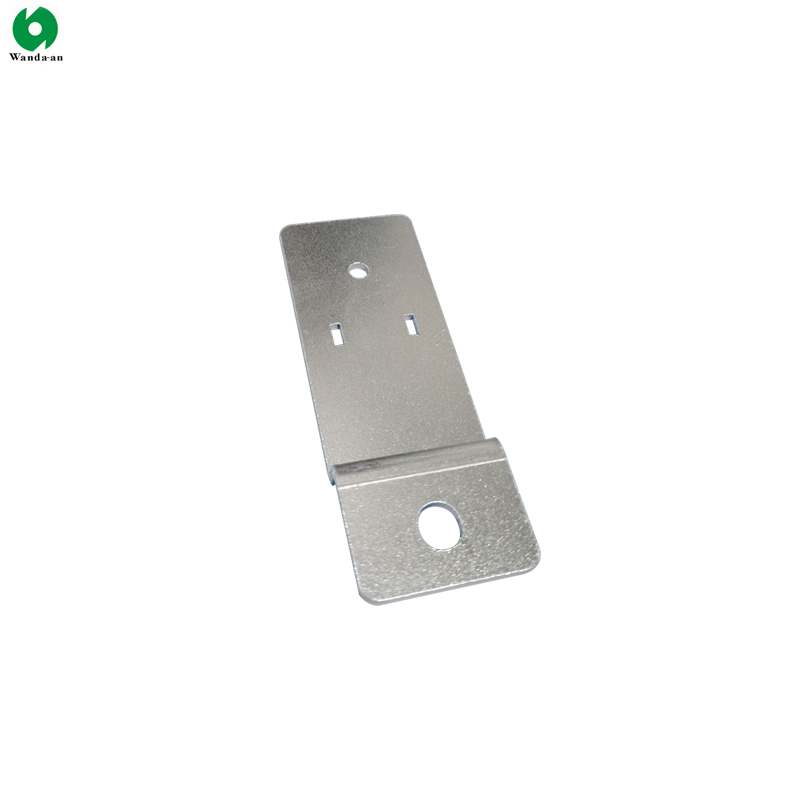

Aluminum Hard Busbar

Custom Aluminum Hard Busbar

Aluminum busbar is a conductor made of aluminum or aluminum alloy, primarily used for the transmission and distribution of electrical energy. It has a rectangular or other cross-sectional shape, with good electrical conductivity, thermal conductivity, and corrosion resistance. It is widely used in low-voltage distribution systems, substations, and various electrical equipment to connect different electrical components.

Applications of Aluminum Busbar

1. Power Distribution Systems: It is a key component in low-voltage switchgear, distribution boxes, and substations, responsible for collecting, distributing, and transmitting electrical energy to meet the power needs of different circuits and equipment.

2. Industrial Equipment: In metallurgy, chemical, and manufacturing industries, it is used to connect motors, transformers, and other high-power electrical devices, ensuring stable and efficient power supply.

3. Electrical Engineering: It is applied in the electrical systems of high-rise buildings, data centers, and commercial complexes to support the power supply of lighting, elevators, air conditioning, and other equipment.

4. Renewable Energy Storage: In photovoltaic power stations and wind farms, it is used to connect inverters, transformers, and other equipment, playing a role in the aggregation and transmission of generated electricity.

How to Choose an Aluminum Busbar?

1. Determine Current Carrying Capacity

·  Calculate the total load current of the circuit, and select an aluminum busbar with a cross-sectional area that meets or exceeds the allowable current-carrying capacity. For example, a 10mmx10mm x 10 mm aluminum busbar can carry a current of about 200-250A.

·  Consider the ambient temperature, installation method (open or enclosed), and the number of phases to adjust the allowable current carrying capacity.

2. Select Material and Surface Treatment

·  Choose pure aluminum (such as 1060, 1070) or aluminum alloy (such as 6063, 6061) based on the working environment. Aluminum alloys have higher mechanical strength and are suitable for occasions with vibration or mechanical stress.

·  For humid, corrosive environments, select aluminum busbars with surface treatments such as electrophoresis, anodizing, or hot-dip galvanizing to enhance corrosion resistance.

3. Consider Installation and Space Conditions

·  Choose the appropriate busbar shape (such as flat, tubular, or profiled) and size according to the installation space. Flat busbars are easy to install and are suitable for low-voltage distribution systems; tubular busbars have good current-carrying capacity and are suitable for high-current occasions. Ensure that the busbar has sufficient insulation distance from other conductors and grounded parts to meet electrical safety requirements.

4. Pay Attention to Quality and Certification

·  Choose products from manufacturers with good reputations and quality assurance systems, and check whether they have relevant certifications.

·  Inspect the surface of the busbar for defects such as cracks, deformation, and oxidation, and ensure that the edges are smooth to avoid electrical discharge.

Why Choose Wanda-an Aluminum Busbars?

When it comes to electrical energy transmission, Wanda-an aluminum busbars stand out as the optimal choice for professionals and businesses alike. Crafted from high-purity aluminum alloys, our busbars boast exceptional electrical conductivity, ensuring minimal energy loss during power distribution. With a rigorous manufacturing process, they exhibit superior corrosion resistance and mechanical strength, making them ideal for demanding industrial, commercial, and renewable energy applications.

What sets Wanda-an apart is our commitment to quality and customization. Each busbar undergoes stringent quality inspections to meet international standards, while our team can tailor dimensions, surface treatments, and configurations to fit your unique project requirements. Whether you're building a photovoltaic power station, upgrading a substation, or outfitting a manufacturing facility, Wanda-an aluminum busbars deliver reliable performance, long-term durability, and cost-effective solutions. Trust Wanda-an to power your projects with excellence. Feel free to contact us for a quote.
