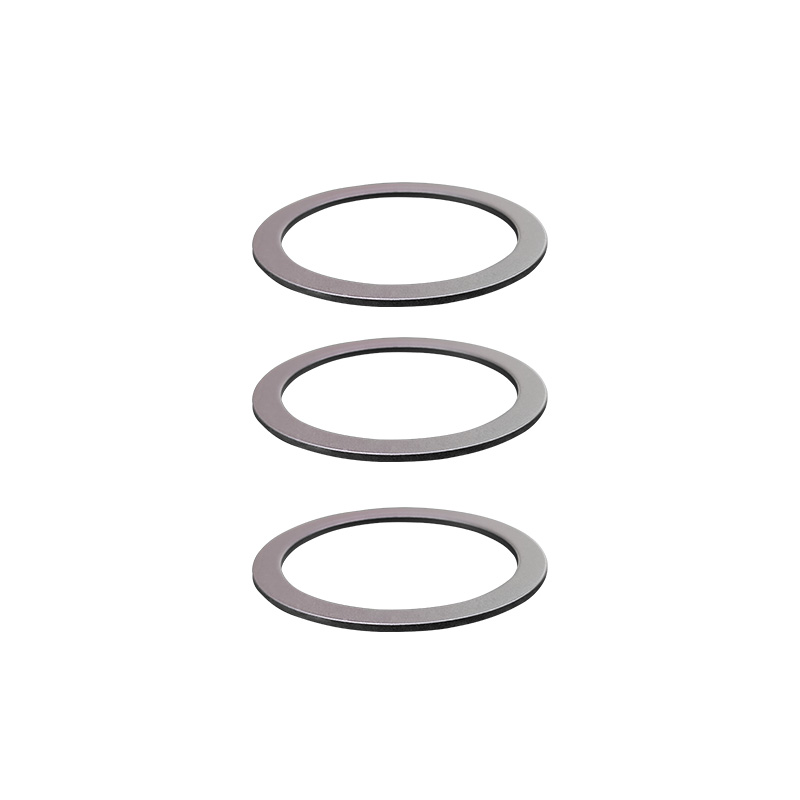

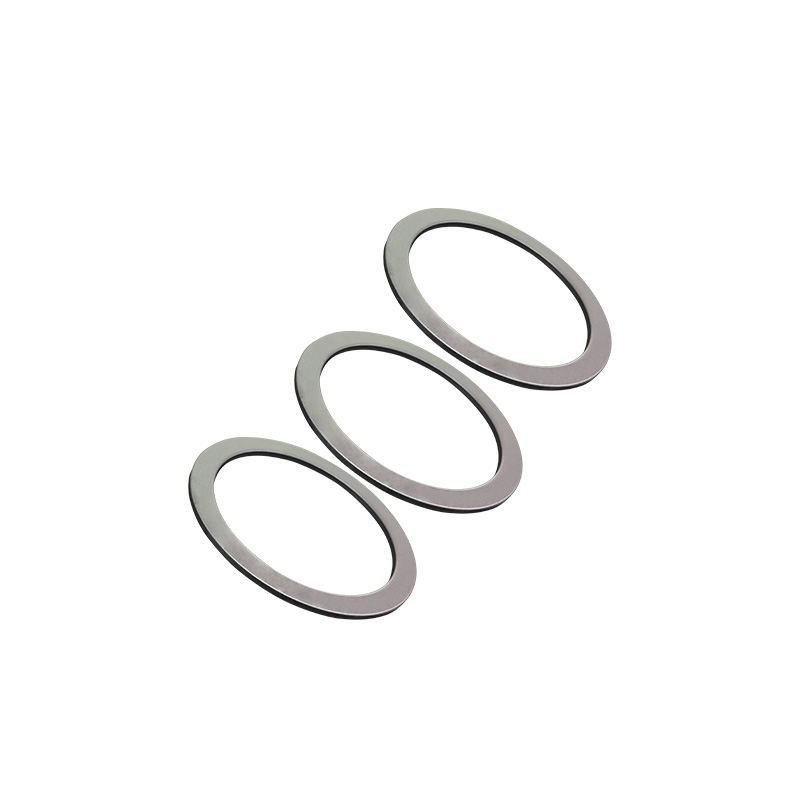

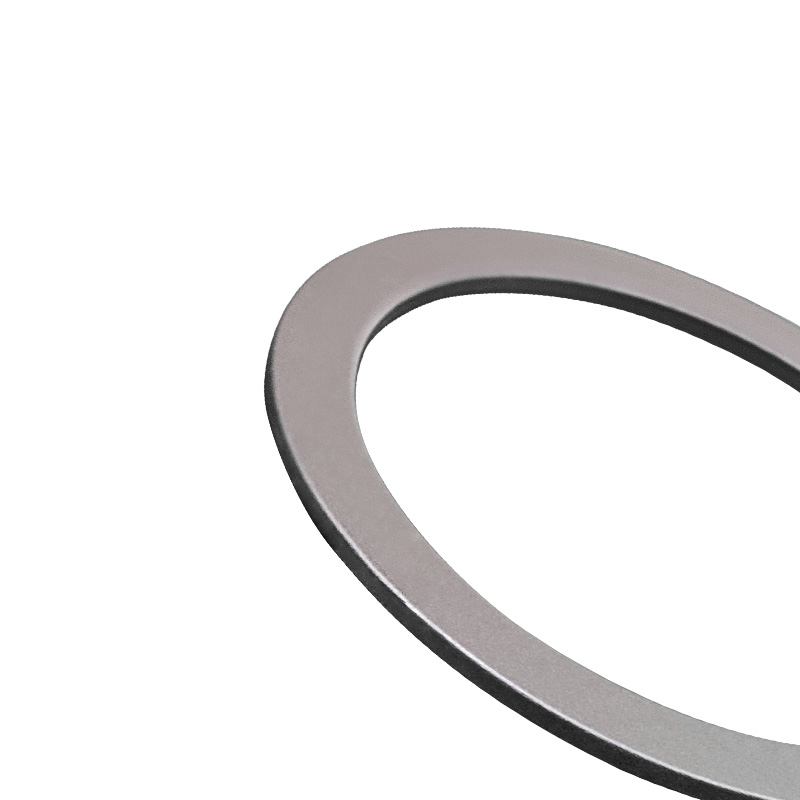

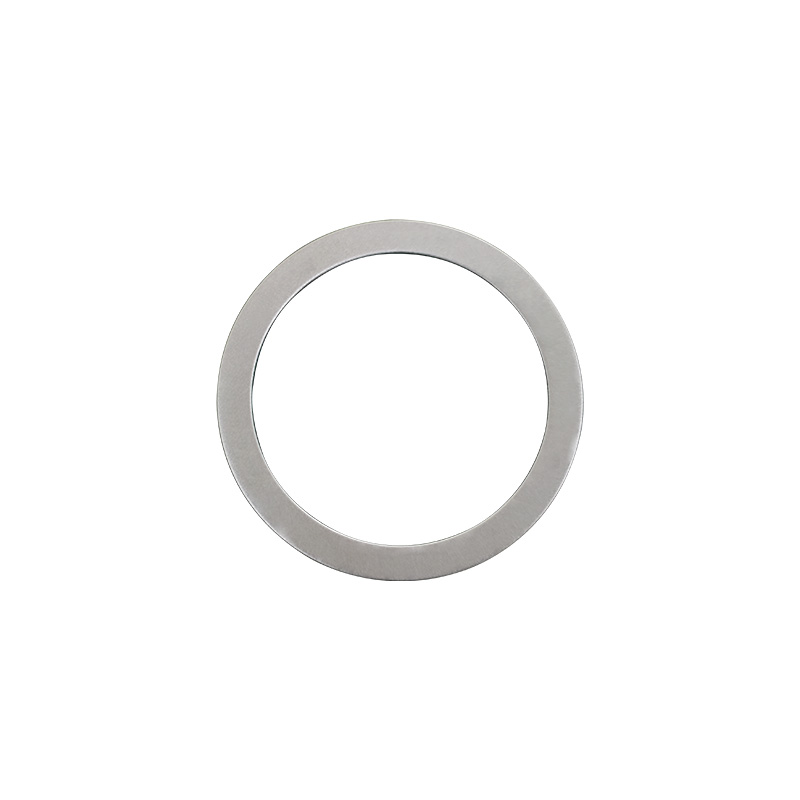

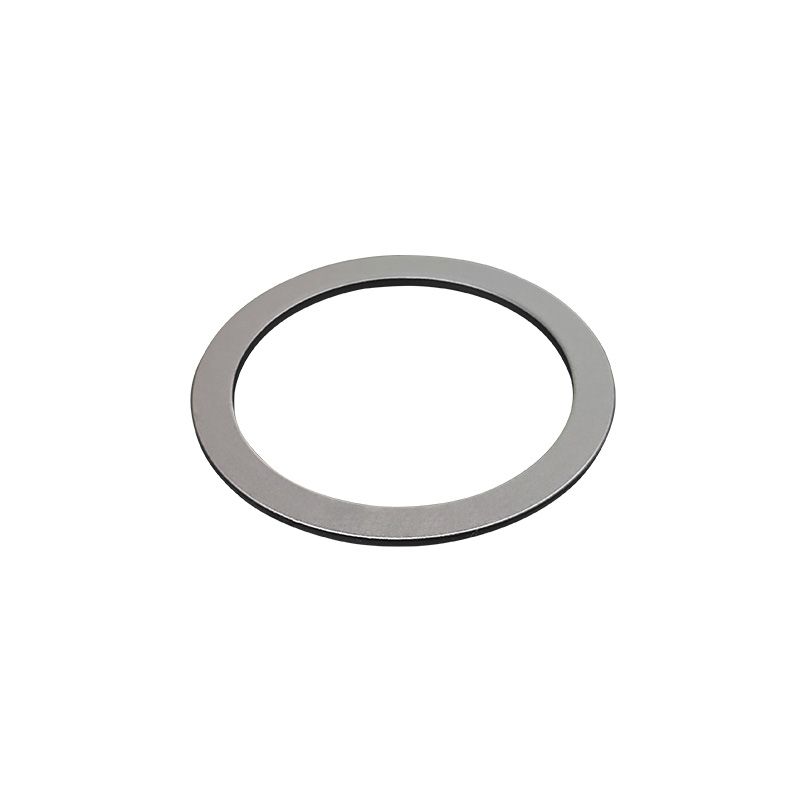

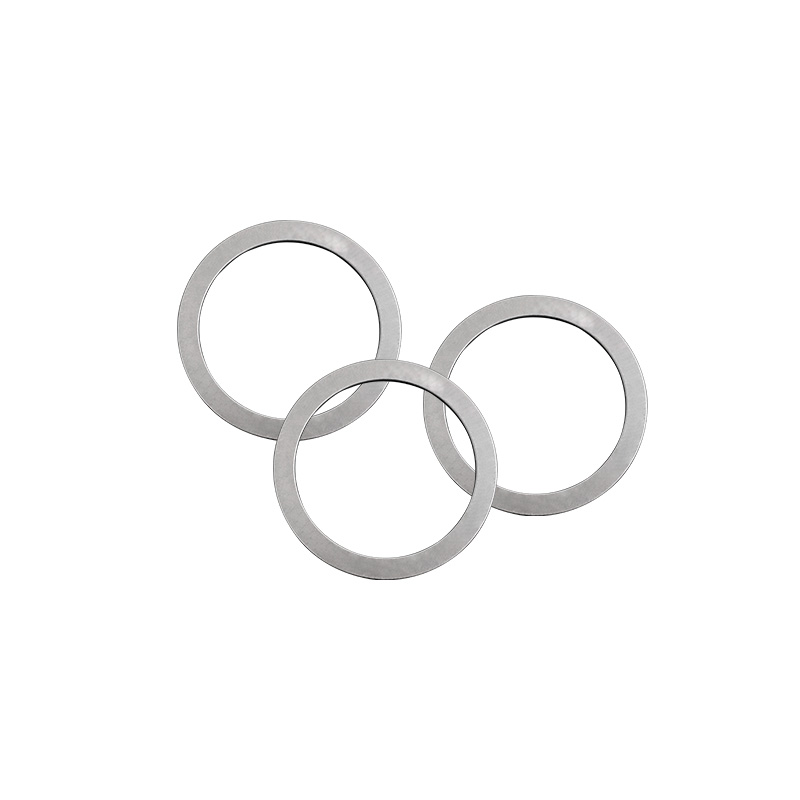

Stamping Steel Gaskets

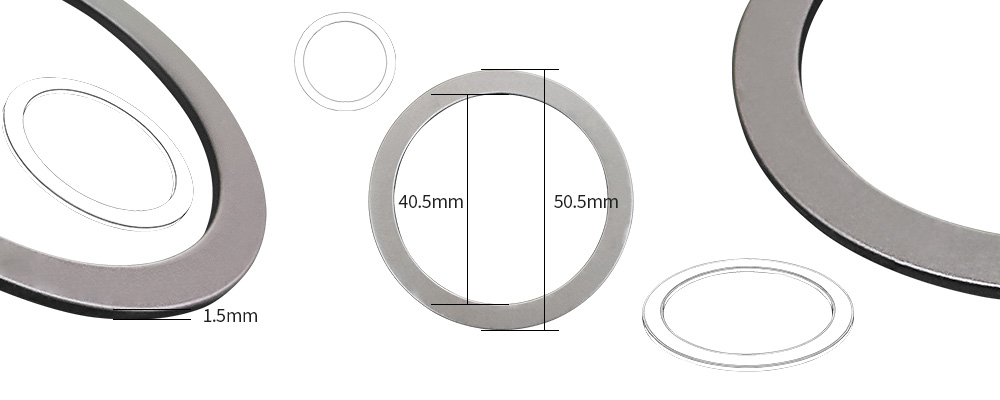

Custom Metal Stamping Gasket

A stamping gasket is a mechanical seal manufactured by precision stamping, designed to fill the space between two or more mating surfaces. Its primary function is to prevent leakage of fluids or gases under compression while compensating for surface irregularities between joined components. Stamping gaskets have become indispensable across a wide range of industries due to their cost-effectiveness, high production efficiency, and consistent dimensional accuracy.

At Wanda-An, advanced CNC machining centers are employed to fabricate these dies with tolerances often reaching within a few microns. For high-volume production, compound dies that perform both blanking and piercing in a single station offer exceptional efficiency and part consistency.

Material Selection

The choice of material for stamping gaskets depends heavily on the operating environment. Common materials include aluminum, copper, stainless steel, and various non-metallic substrates. Aluminum gaskets offer excellent corrosion resistance and thermal conductivity,making them ideal for automotive engine components. Copper gaskets provide superior thermal and electrical conductivity and are frequently used in high-temperature applications. Stainless steel gaskets deliver outstanding chemical resistance and mechanical strength, suitable for harsh industrial environments.

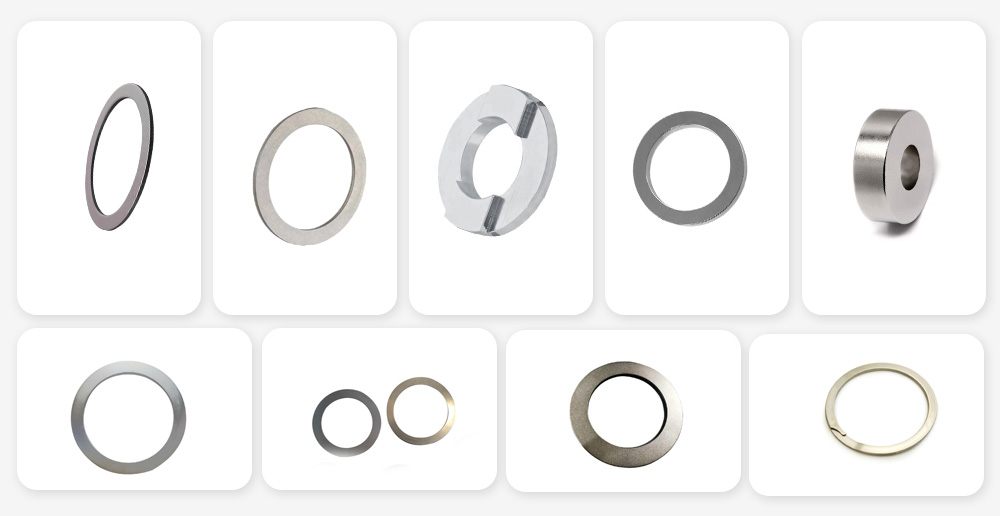

Types and Classifications

Stamping gaskets come in diverse configurations to meet specific sealing requirements. Flat gaskets represent the most basic and widely used type, cut directly from sheet stock with simple inner and outer contours. Ring-type joint gaskets, commonly employed in high-pressure oil and gas applications, feature precision-machined profiles stamped to exacting standards. Spiral-wound gaskets, while partially assembled, incorporate stamped metal rings as integral structural components. Other specialized types include flange gaskets with boltholes, O-ring gaskets with precise circular profiles, and custom-shaped gaskets designed for irregular mating surfaces. Each type demands specific consideration during die design to ensure clean edges, minimal burr formation, and structural integrity.

Industrial Applications

The application scope of stamping gaskets spans numerous sectors. In the automotive industry, they are critical components in engines, transmissions, exhaust systems, and fuel delivery assemblies. The aerospace sector relies on high-precision stamped gaskets for hydraulic systems, fuel tanks, and cabin pressure seals, where failure is not an option. In the oil and gas industry, these gaskets must withstand extreme pressures, corrosive media, and elevated temperatures. Chemical processing plants utilize specialty stamped gaskets to maintain containment integrity in pipelines, reactors, and storage vessels. The electronics industry employs miniature stamped gaskets for electromagnetic interference shielding and environmental sealing of sensitive components.
