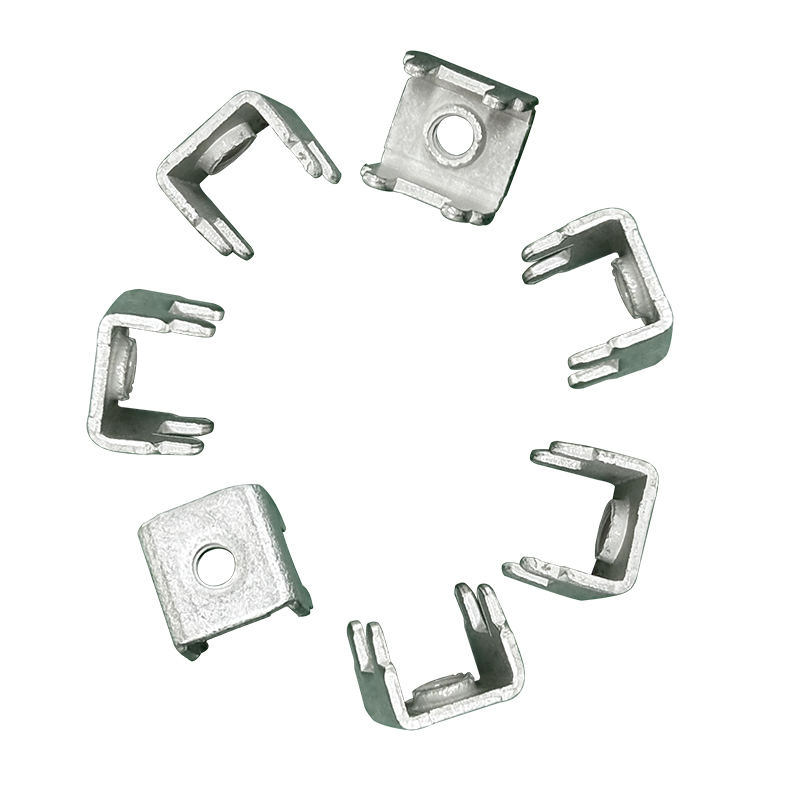

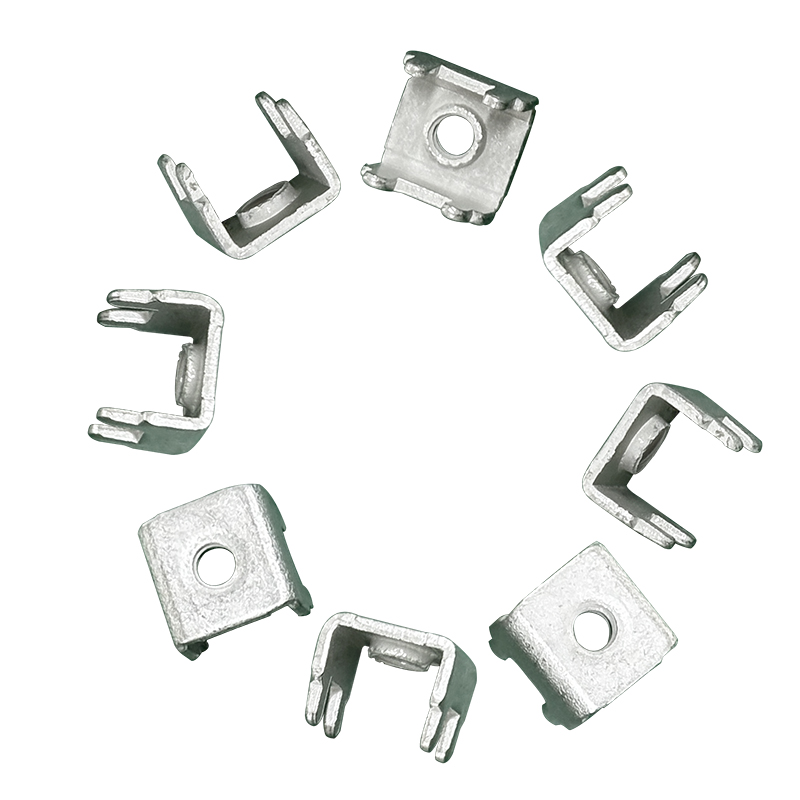

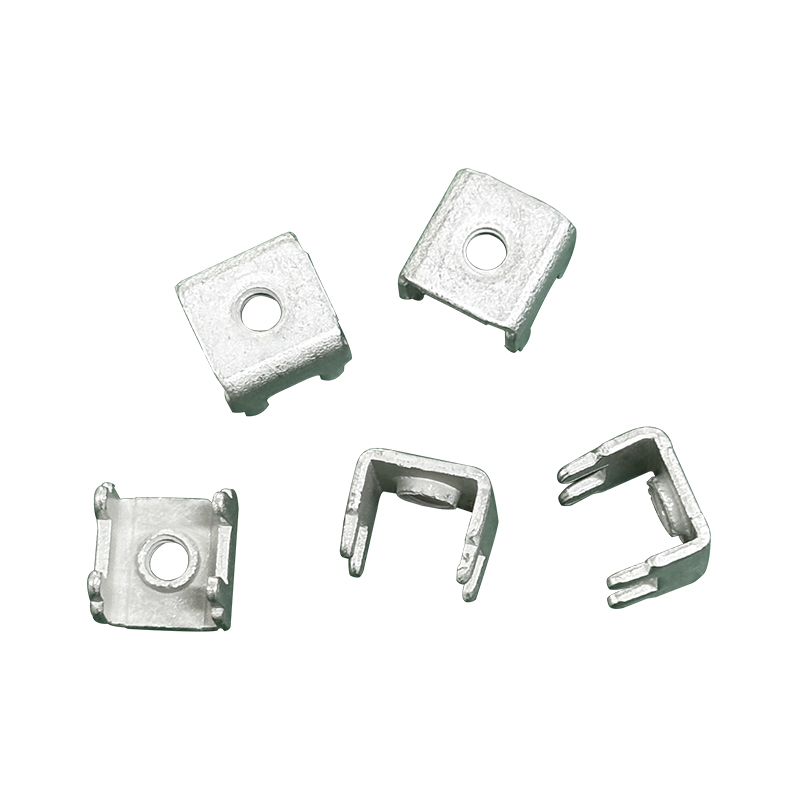

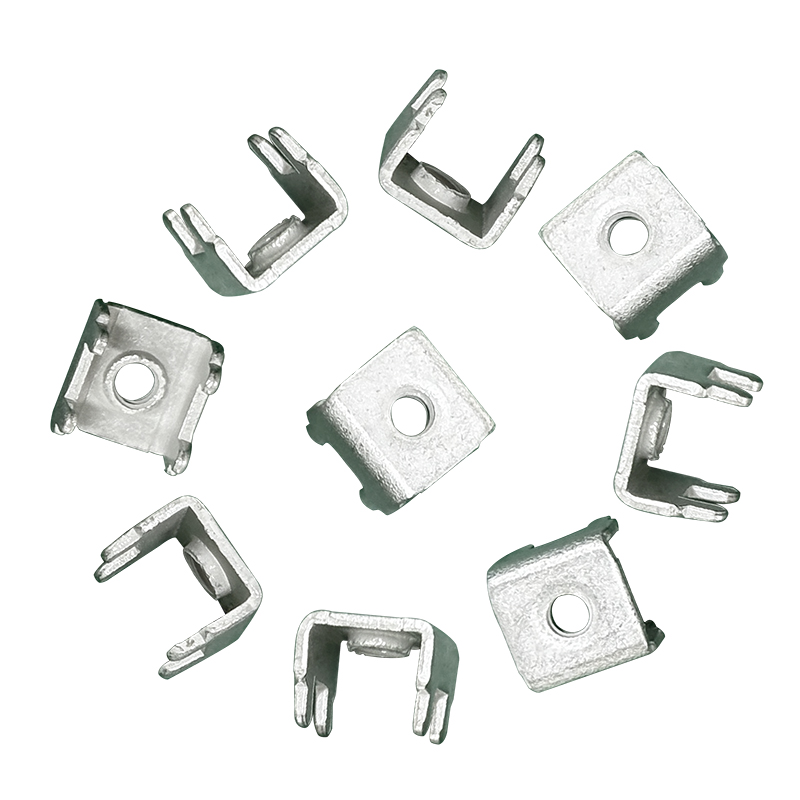

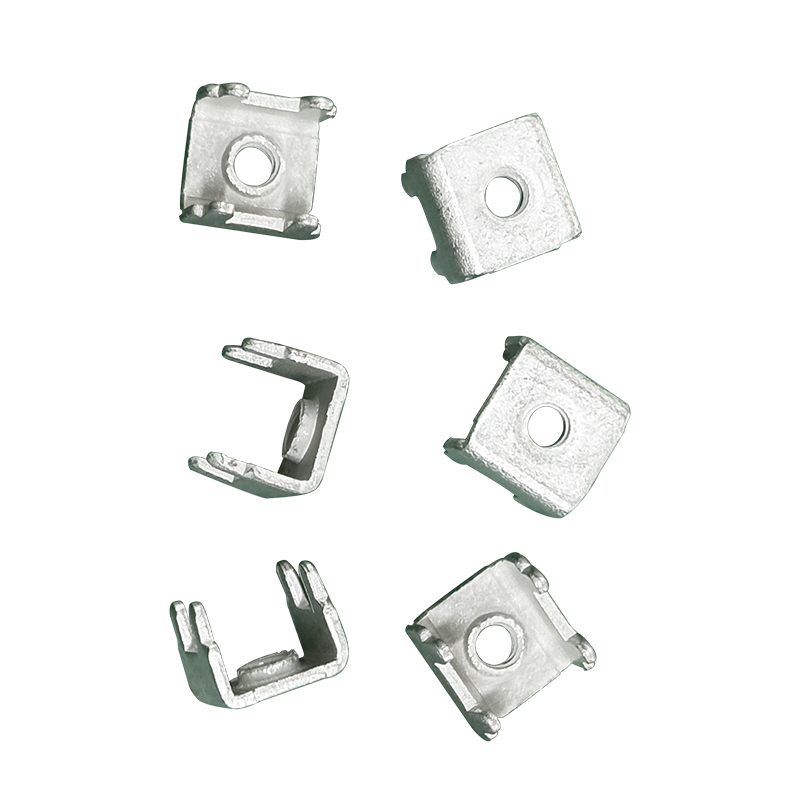

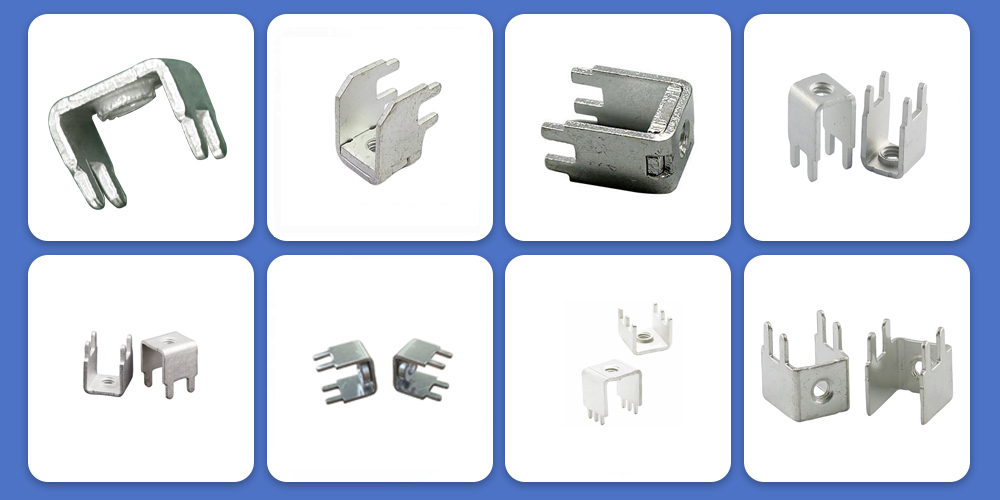

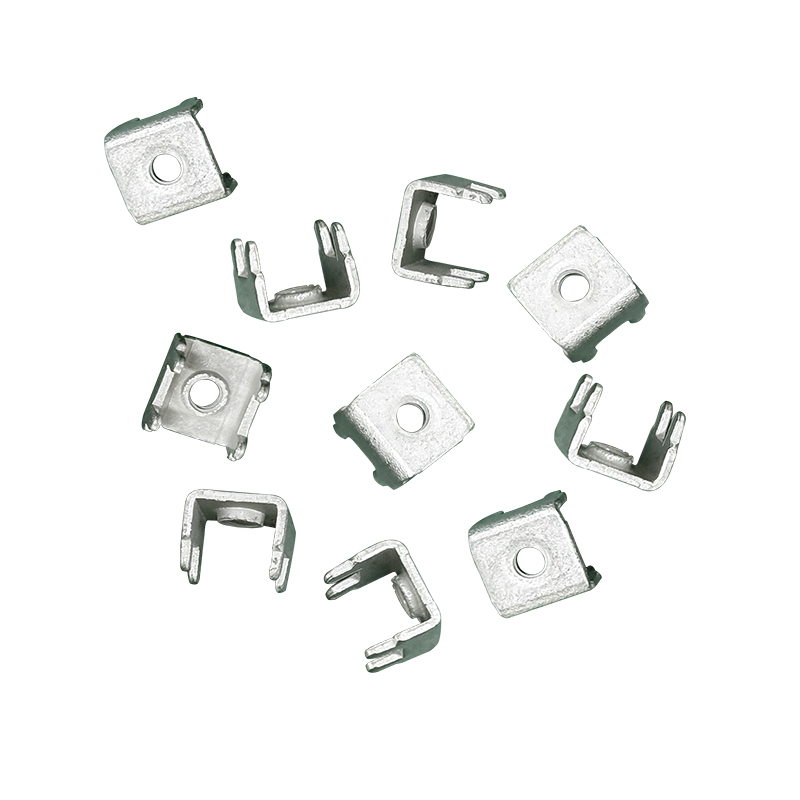

PCB screw copper terminal
PCB assembly connectors are components designed to mechanically and electrically connect printed circuit boards within electronic devices. They facilitate signal and power transmission between boards or between a board and a cable, ensuring reliable operation in various applications
Types of PCB Termnals:
Through-Hole PCB Terminals:
These terminals are inserted into holes drilled in the PCB and soldered on the opposite side.
Examples: Pin headers,solder pins,and screw terminals.
Applications: Often used in applications requiring robust mechanical strength.
Surface Mount PCB Terminals (SMT):
These terminals are mounted directly onto the surface of the PCB, using solder paste and reflow soldering techniques.
Examples: SMT connectors, small form-factor connectors.
Applications: Commonly used in compact designs and modern electronics to save space.
Screw Terminals:
Description: These terminals allow for the direct connection of wires by securing them with a screw.
Applications: Used in applications where a secure, removable connection is needed.
Spring Terminals:
Description: These terminals use a spring mechanism to hold wires in place, providing a quick and reliable connection.
Applications: Frequently used in automotive and consumer electronics.
IDC (Insulation Displacement Connector) Terminals:
Description: These terminals make contact with the wire by displacing the insulation, allowing for fast and efficient connections without stripping the wire.
Product details:
| Model | PCB screw copper terminal |
| Processing | Stamping, Bending, Riveting |
| Finish | Tin-plating, Nickel-plating, Matte tin, etc |
| Drawings format | IGS, X_T, STEP, DWG, PDF, PNG, JPG |
| Packing | Carton |
| Current | 10A-300A |
