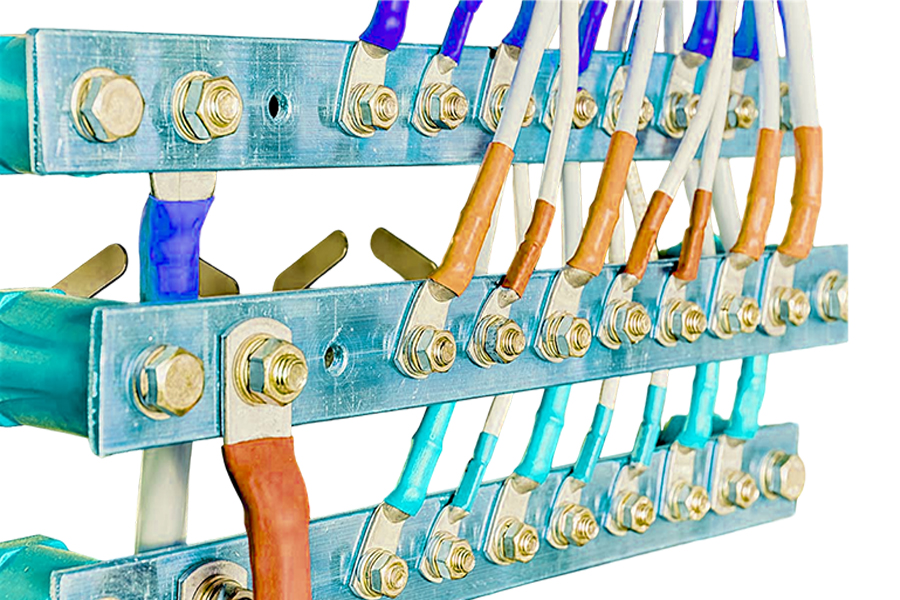

BUS BAR

Functions:

A bus bar serves as an electrical connection point where it gathers electric power from incoming feeders and then disperses it to outgoing feeders.

The primary function of a bus bar is to transport and distribute electricity, contributing to the efficiency of systems.

Power Distribution:Distributes electrical power to different circuits or loads efficiently.

Current Collection:Acts as a collection point for currents from multiple sources.

System Interconnection:Facilitates connections between various electrical devices and systems.

Safety:Designed to handle overload conditions,reducing the risk of electrical failures.

Key Features:

Bus bars are produced in a variety of shapes, including flat strips, solid bars and rods, and are typically composed of copper, brass or aluminium as solid or hollow tubes. Some of these shapes allow heat to dissipate more efficiently due to their high surface area to cross-sectional area ratio.

Material:Typically made from copper or aluminum due to their excellent electrical conductivity.

Shape and Size:Available in various shapes (flat,round,or hollow) and sizes,depending on the application and current capacity.

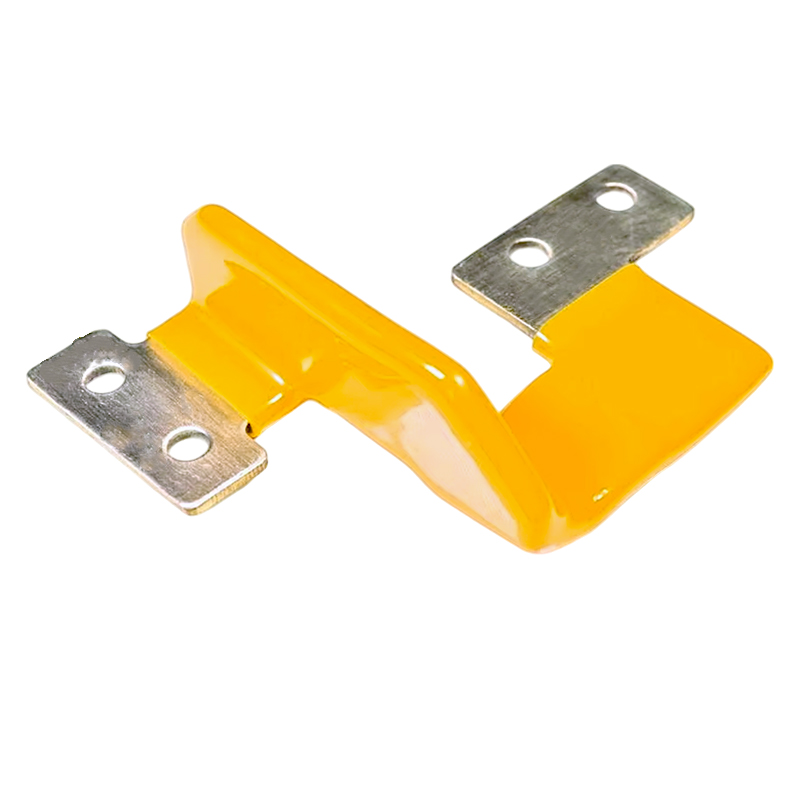

Insulation:Often insulated to prevent short circuits and ensure safety.

Mounting:Can be mounted horizontally or vertically,depending on space and design requirements.

Applications:

Electrical bus bar systems distribute power in power supply systems. High-rated current is distributed through non-insulated bus bars for either a high-voltage or a low-voltage application in factories. Electrical bar systems are used in renewable energy sources like wind turbines, solar panels,and batteries.

Industrial Facilities:Used in factories for power distribution.

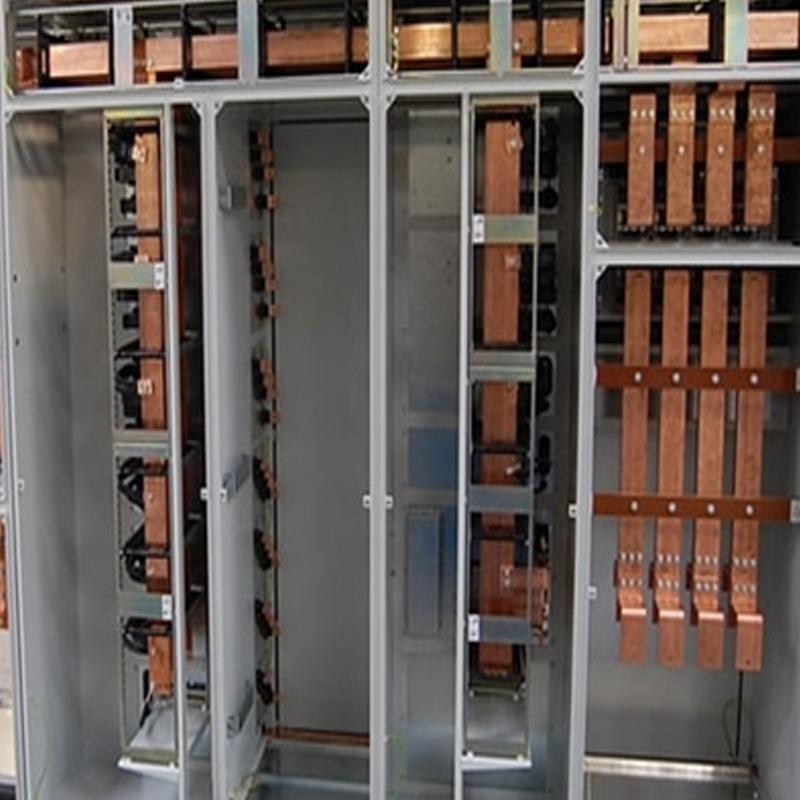

Electrical Substations:Critical for connecting transformers and other equipment.

Data Centers:Provides reliable power distribution for servers and IT equipment.

Renewable Energy Systems:Integrates power from various renewable sources.

Copper Bus Bar

Definition:A copper bus bar is a solid or hollow conductor made primarily of copper,used to distribute and collect electrical power in various systems.Its excellent conductivity makes it a preferred choice in many electrical applications.Copper bus bars are critical components in electrical systems,providing efficient power distribution and reliability.Their excellent conductivity and durability make them ideal for a wide range of applications from industrial settings to renewable energy systems.Proper design and installation are essential to maximize their performance and safety.

Features

1.High Conductivity:Copper has one of the highest electrical conductivity of any metal,which allows for efficient power transmission with minimal losses.

2.Durability:Copper bus bars are resistant to corrosion and mechanical stress,ensuring longterm reliability in demanding environments.

3.Thermal Conductivity:In addition to electrical conductivity,copper also has good thermal conductivity,which helps dissipate heat generated during electrical operation.

4.Versatile Designs:Available in various shapes (flat,round,square) and sizes,making them suitable for different applications and configurations.

Functions

1.Power Distribution:Used to distribute electrical power from a single source to multiple circuits or loads efficiently.

2.Interconnection:Connects various components like circuit breakers,transformers,and generators in electrical systems.

3.Current Collection:Acts as a central point for collecting current from multiple sources.

4.Grounding:Often used for grounding applications,providing a lowresistance path to the ground.

Installation and Considerations

Sizing:Proper sizing is crucial to handle the expected load and minimize voltage drop.

Mounting:Should be securely mounted to prevent mechanical stress and ensure safety.

Insulation:Depending on the application,insulation may be necessary to prevent short circuits and electrical hazards.

Standards Compliance:Must comply with industry standards and regulations for safety and performance.
