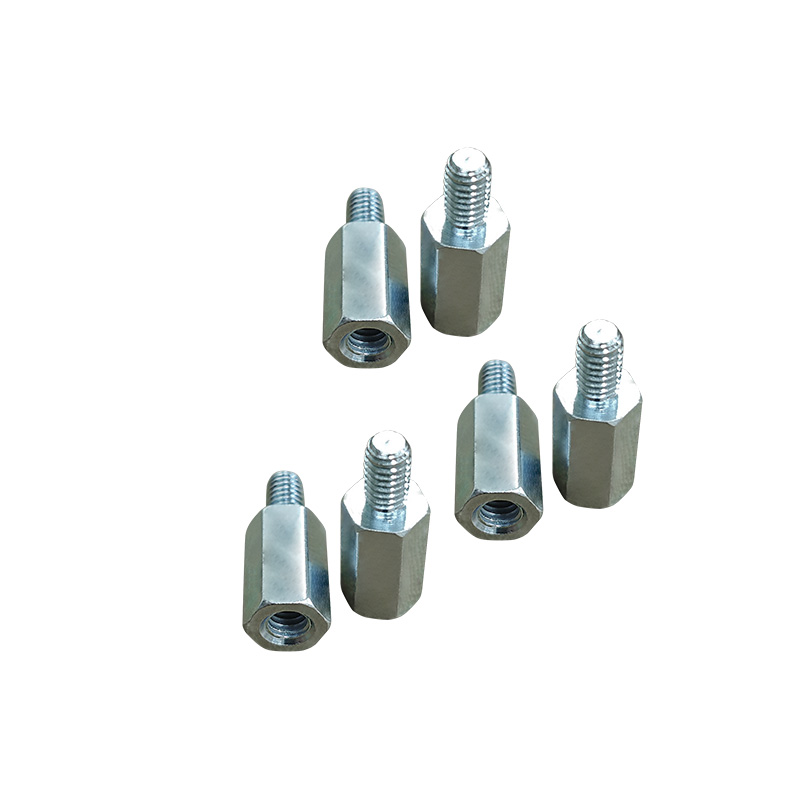

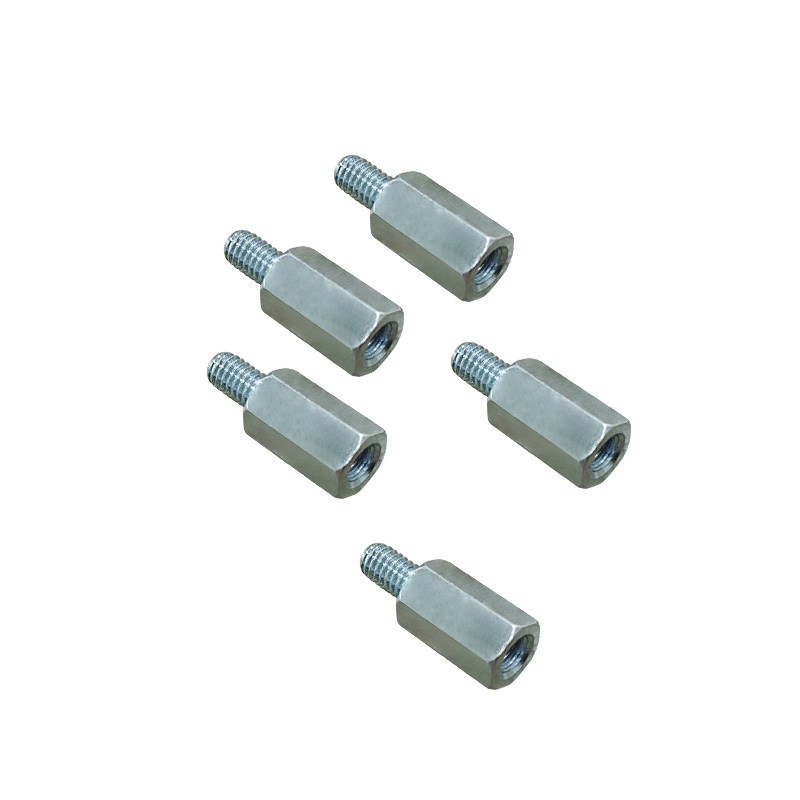

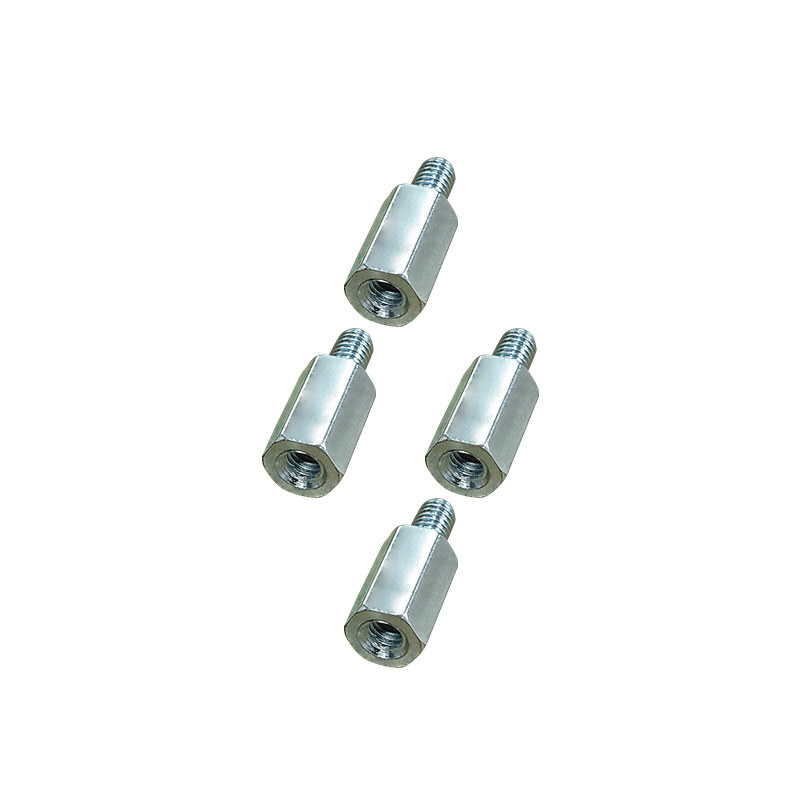

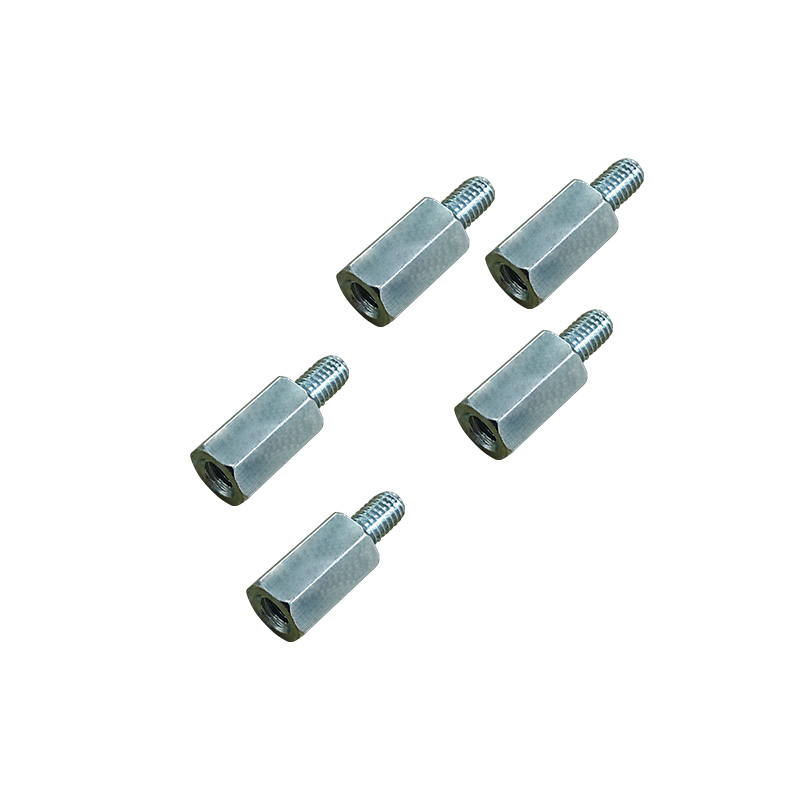

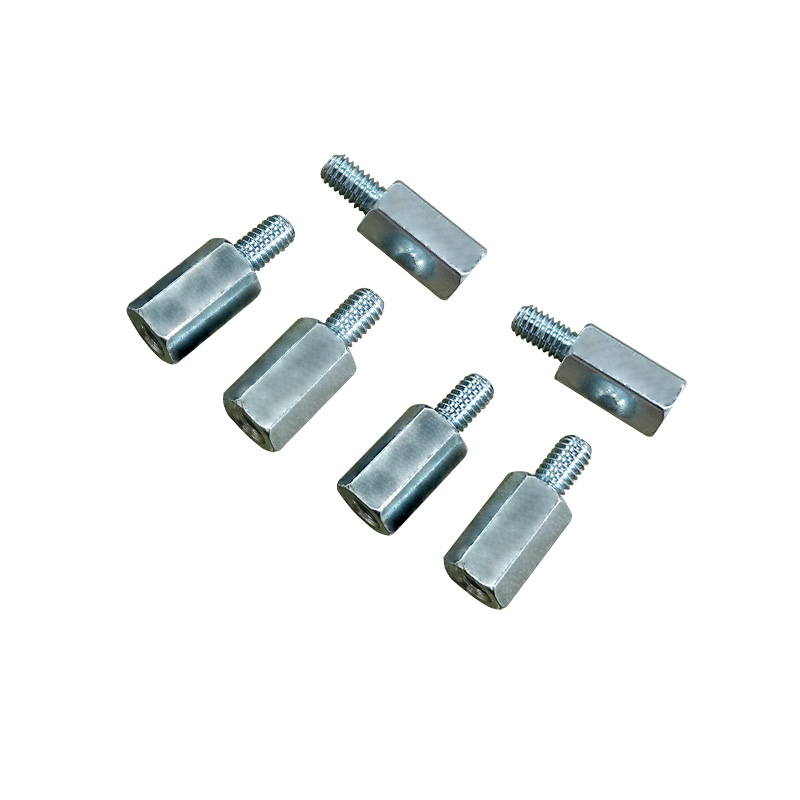

M4 Standoff Spacer
PCB standoff spacers are indispensable components in electronic assembly, serving as the unsung heroes that ensure the stability, safety, and functionality of circuit boards across diverse industries.
In terms of applications, these standoffs small but crucial parts play multiple vital roles. Primarily, they provide precise support, elevating circuit boards above the chassis or other components to prevent direct contact that could lead to short circuits, especially in devices with metalenclosuresA. In high-voltage electronic equipment, insulating standoff spacers act as a reliable barrier, minimizing the risk of electrical leakage and ensuring safe operation. They also contribute to improved heat dissipation by creating air gaps that allow for better airflow around the circuit board, which is essential for maintaining the performance and longevity of heat-sensitive components. Additionally, in complex multi-layer board assemblies, standoff spacers help maintain accurate alignment during the manufacturing and installation processes, ensuring that each layer functions harmoniously.
When it comes to types and models, the market offers a wide range of options tailored to different needs. For applications requiring higher strength and conductivity, brass standoffs are apopular choice, available in M2, M3, M4, M5, and M6 sizes with threaded hex bodies for secure fastening. Nickel-plated iron standoffs provide a cost-effective alternative, offering good corrosion resistance and compatibility with various screw sizes from M2 to M8. Wanda-An also offers stainless steel PCB spacers in snap-in designs, suitable for PCB holes of different diameters, such as 2.5 mm, 2.54 mm, 3.18 mm, and 4 mm, providing quick and easy installation. Customized copper round spacers in M3-M6 sizes, available in white andblack, are also an option for specific design requirements.
In connector design, spacers have specialized functions. They are used to accurately position terminal tails, facilitating smooth insertion into PCBs. Floating spacer designs, where the spacer stays at the bottom dead center upon delivery with terminal tails protruding slightly, ensure precise alignment during insertion. Standoff heights on the spacer bottom should be at least 0.15 mm to avoid solder paste printing issues.
Selecting the right PCB standoff spacer depends on factors such as the application environment, required strength, insulation needs, and installation method. By understanding the diverse applications and models available, engineers and manufacturers can make informed choices to enhance the overall quality and reliability of their electronic products.

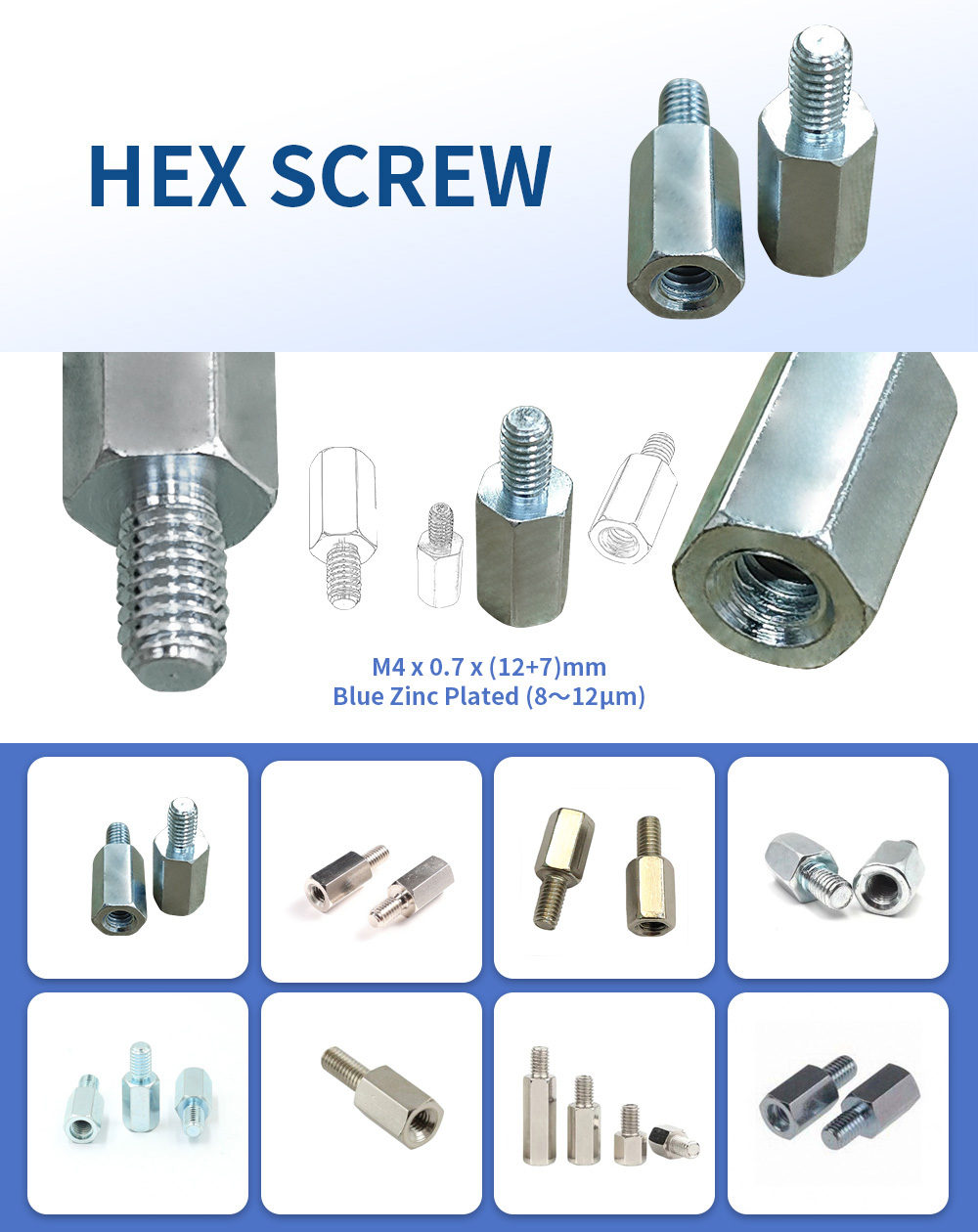

Products details

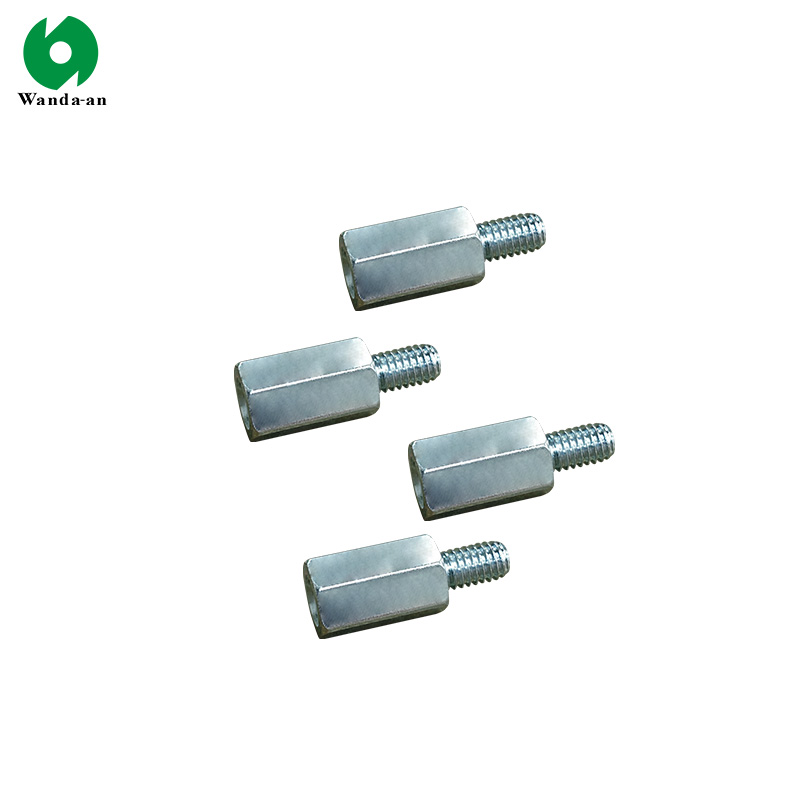

| Product Name | Stainless steel standoff spacer |
| Process | CNC lathe, turning |
| Metric Threads | M2, M3, M4, M5, M6, M8, M10, Custom |
| Coating | Nickel, Tin, Zin, Chrome plated or as request |
| Certification | RoHS, ISO9001, IATF19649 |
| Application | for PCB Board, Data Communication Chassis, Server Case, Computer Board, ect. |
What is standoff?
A standoff is a threaded fastener used to hold two parts a set distance apart. A steel standoff is a metal fastener, typically hexagonal, used to mount and separate circuit boards from surfaces. Made of steel for strength, it ensures stability, improves airflow, and prevents electrical shorts in electronic assemblies.
Contact us today for your next PCB standoff, steel standoff, or custom fasteners manufacturing project.
