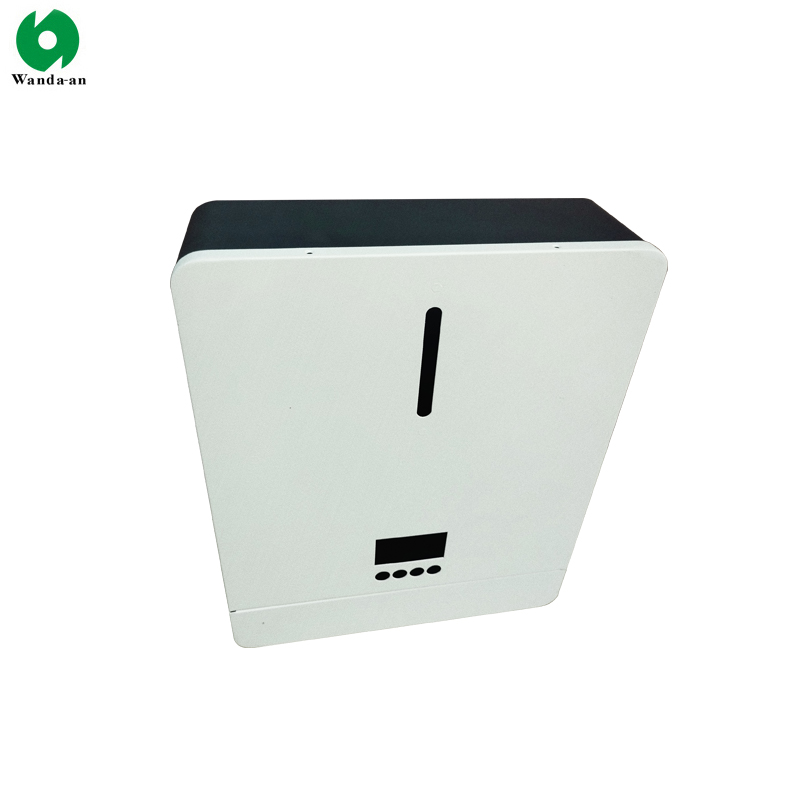

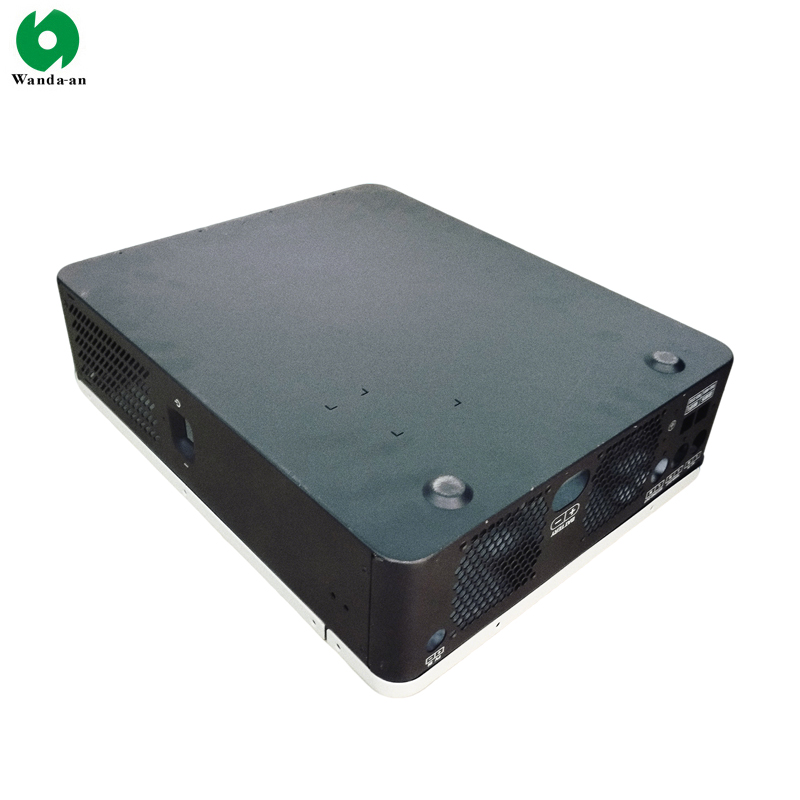

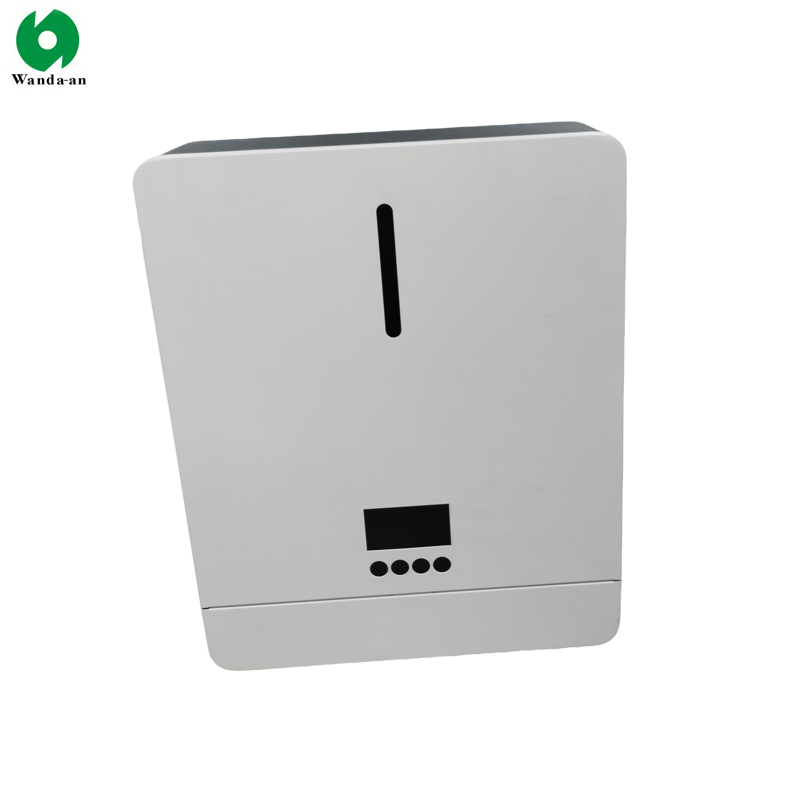

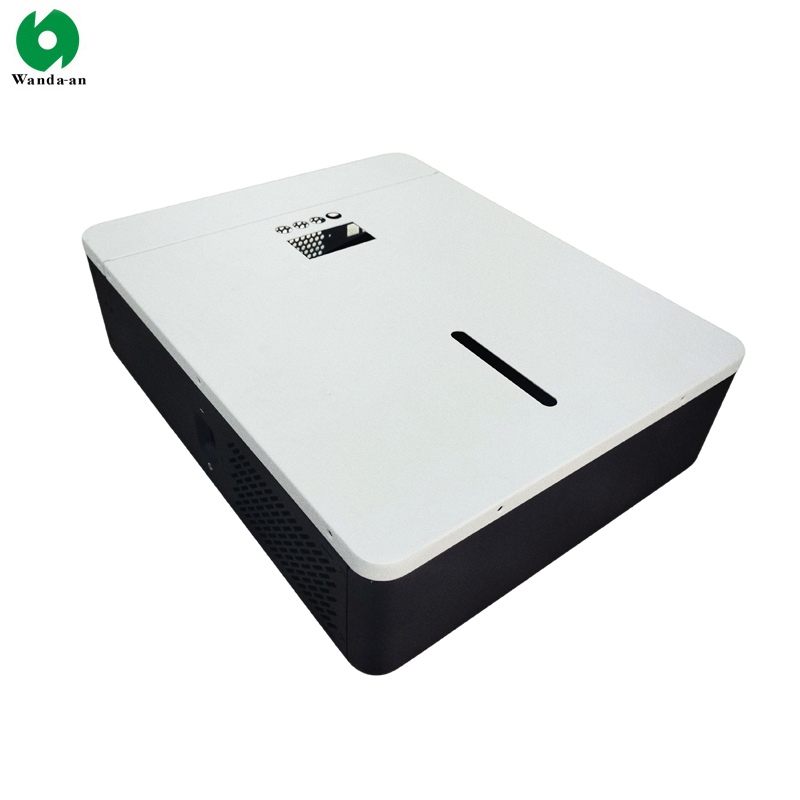

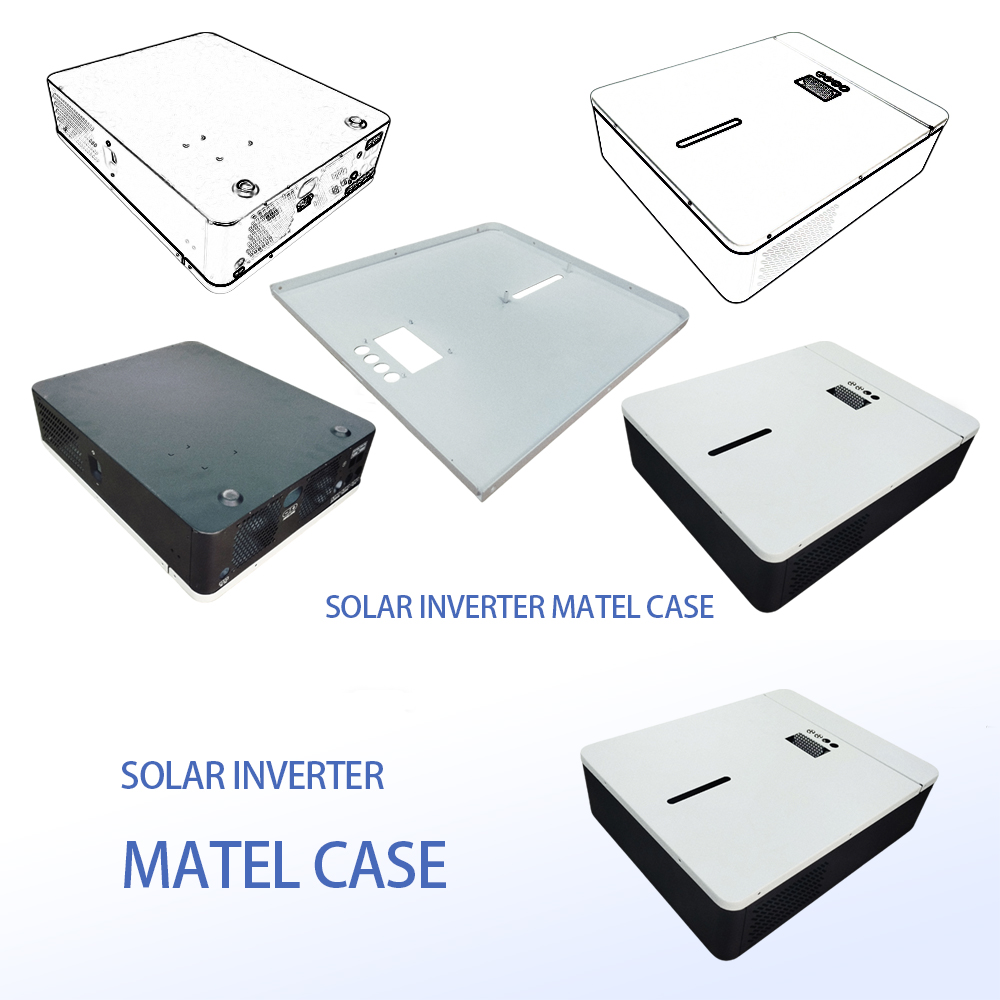

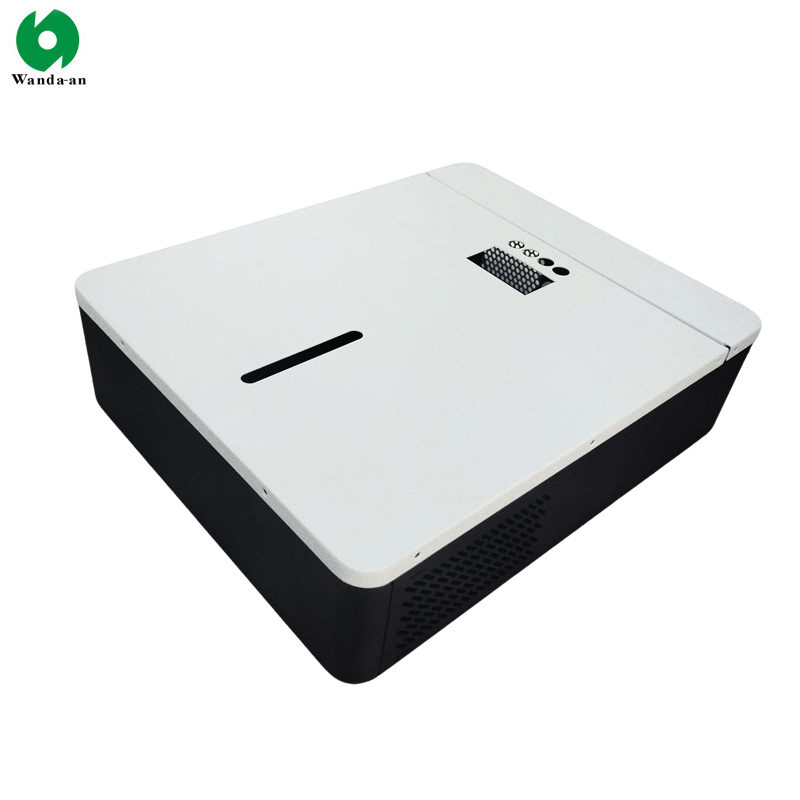

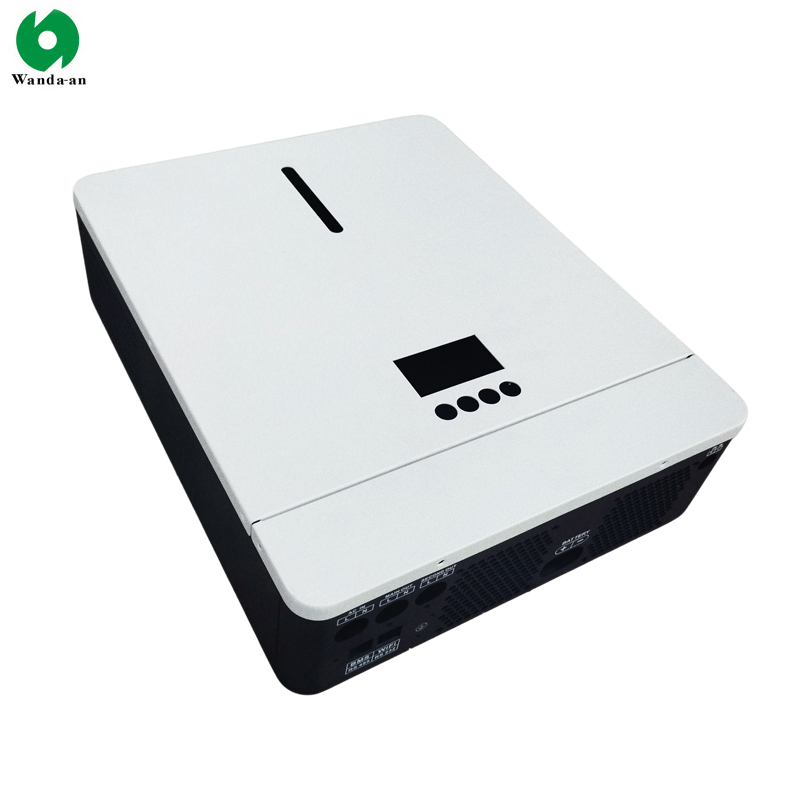

Custom Sheet Metal Inverter Housing
Inverter Enclosures: A Summary of Materials, Protection, and Design
Inverter enclosure serves as the critical protective shell for the internal electronics of a power conversion system. Its primary role is to safeguard sensitive components such as PCBs, MOSFETs, capacitors, and control boards from environmental hazards while facilitating effective thermal management.
Common Materials
The choice of material plays a decisive role in an enclosure's performance characteristics. Aluminium alloy is widely favored for its excellent heat dissipation, lightweight nature, and natural corrosion resistance, making it a preferred option for microinverters and outdoor solar applications. Steel enclosures, particularly those made fromcold-rolled steel, offer superior structural strength and impact resistance, making them suitable for heavy-dutyindustrial environments and outdoor installations where mechanical durability is paramount.
| Type | Materials | Applications |
| Aluminum Alloy Inverter Case | Aluminum alloy | Microinverters, Solar PV Inverters, Outdoor Installations |
| Sheet Metal Inverter Case | Cold-rolled Steel, Stainless Steel, Galvanized Steel, Powder-coated steel | Industrial Inverters, Outdoor Installations, High-Security Applications, General-purpose inverters, indoor power electronics |
| Die-Casting Inverter Case | Aluminum or Zinc Alloy | Microinverters, Compact Inverter Units |
| Waterproof Inverter Case | Aluminum or Coated Steel with IP55/IP65/IP67 Sealing | Solar Pump Inverters, Outdoor Energy Storage Systems, Photovoltaic installations |
Ingress Protection and Environmental Resilience
Enclosures are classified by their IP (Ingress Protection) ratings, which indicate resistance to dust and moisture. Common ratings include IP21, IP55, IP65, and IP67, with higher digits signifying greater levels of sealing. A well-designed enclosure must reliably prevent dust ingress, withstand rain and high humidity, and in many cases resist salt mist and chemical corrosion in harsh outdoor or coastal settings
Thermal Management
Heat dissipation is a fundamental design consideration. Since inverters generate significant heat during DC-to-ACconversion, many enclosures employ passive cooling strategies. Aluminium or sheet metal housings often feature integrated heatsink fins or grid-style back panels that increase surface area for natural convection. Internally, thermal potting compounds are frequently used to fill voids, simultaneously providing shock absorption, moisture sealing, and conductive heat transfer away from heat- generating components. Some advanced designs incorporate ventilation slots or are shaped to conform closely to internal PCB contours, minimizing material use while optimizing thermal pathways.
Structural and Safety Features
Modern inverter enclosures incorporate several practical design elements. Integrated mounting brackets or rails simplify installation on walls or rails. Sealed gaskets along seams prevent water intrusion. Transparent light guides or LED indicator windows allow status monitoring without compromising the enclosure's integrity. In high-voltage environments, the housing material must also exhibit strong resistance to tracking, preventing carbonization and insulation failure caused by surface contaminants and electrical stress. Furthermore, enclosures are engineered to withstand mechanical impacts, short-circuit incidents, and extreme temperature cycling without cracking, warping, or losing protective functionality.
At Wanda-an, the design of an inverter enclosure is a balanced engineering exercise that weighs material science, thermal dynamics, mechanical robustness, and environmental sealing to ensure long-term reliability in diverse operating conditions. Contact us today for your new project.
