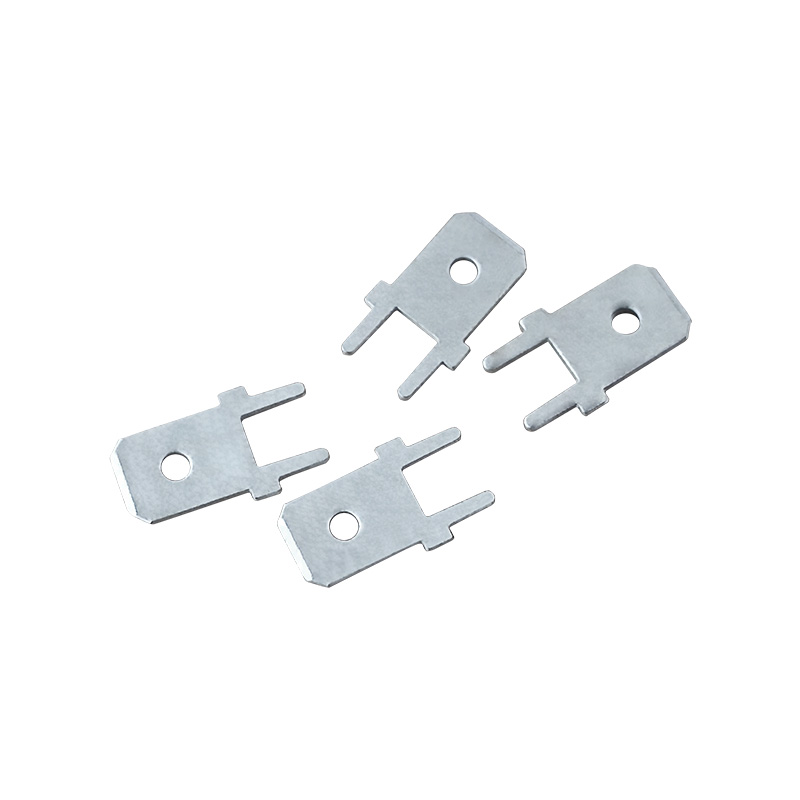

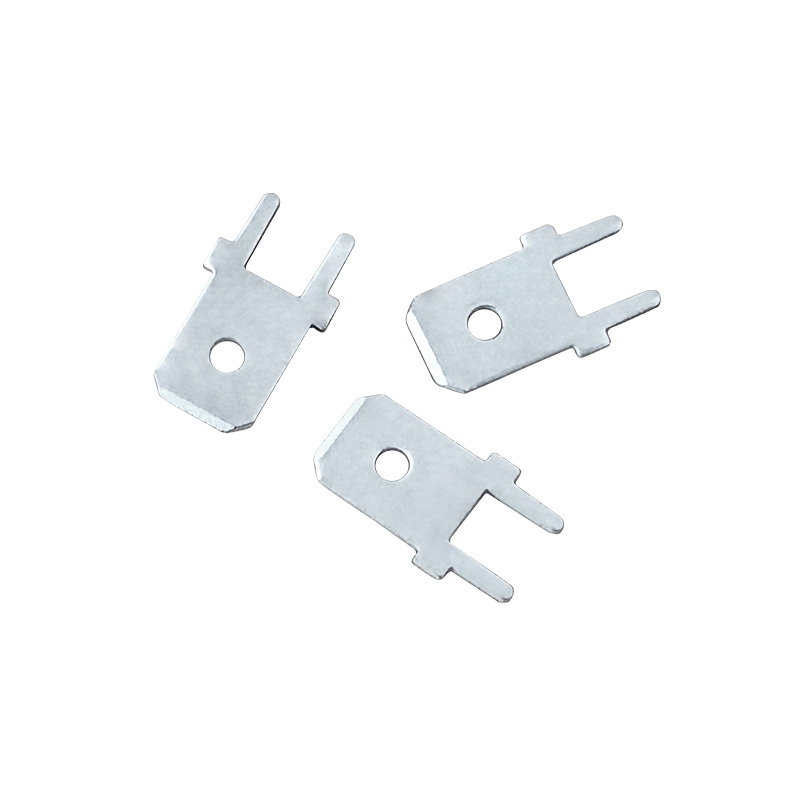

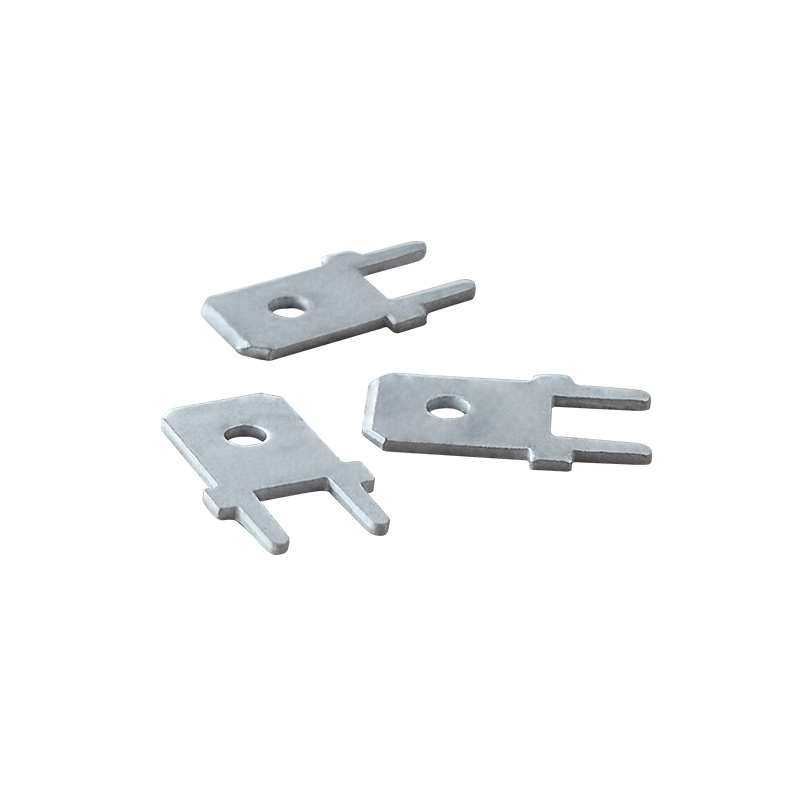

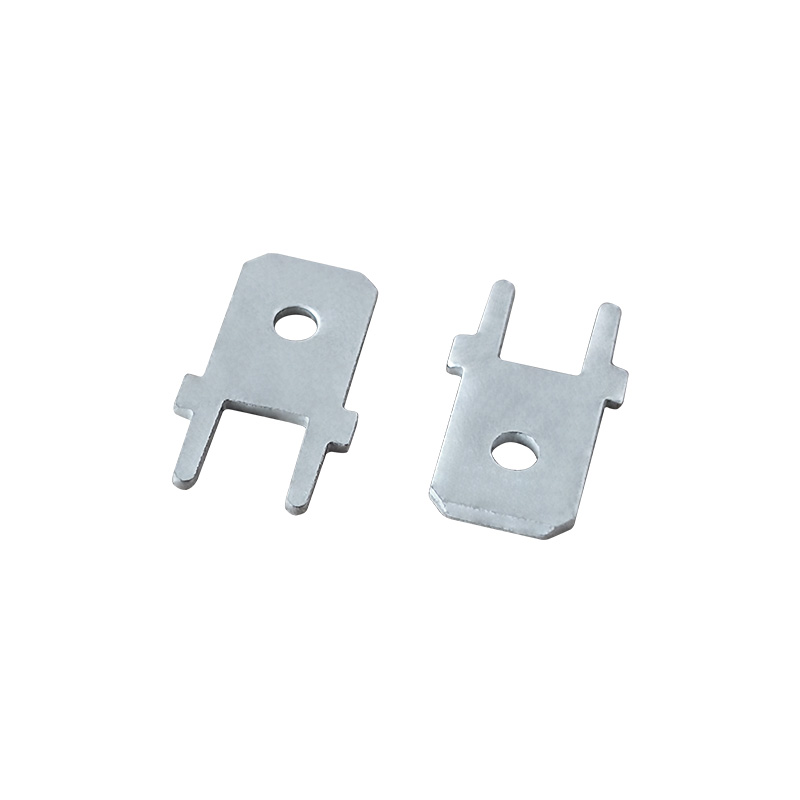

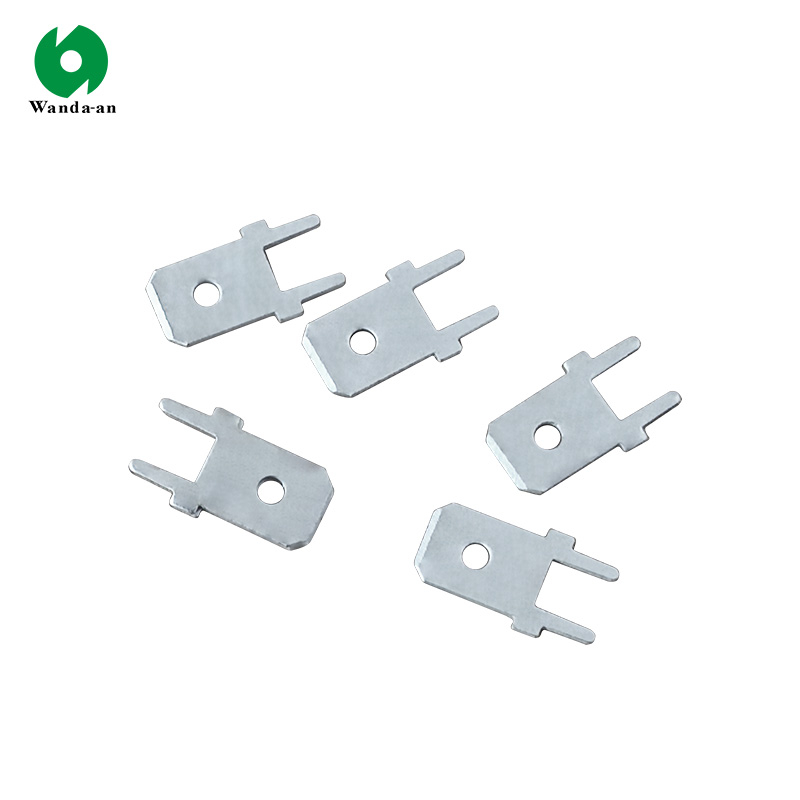

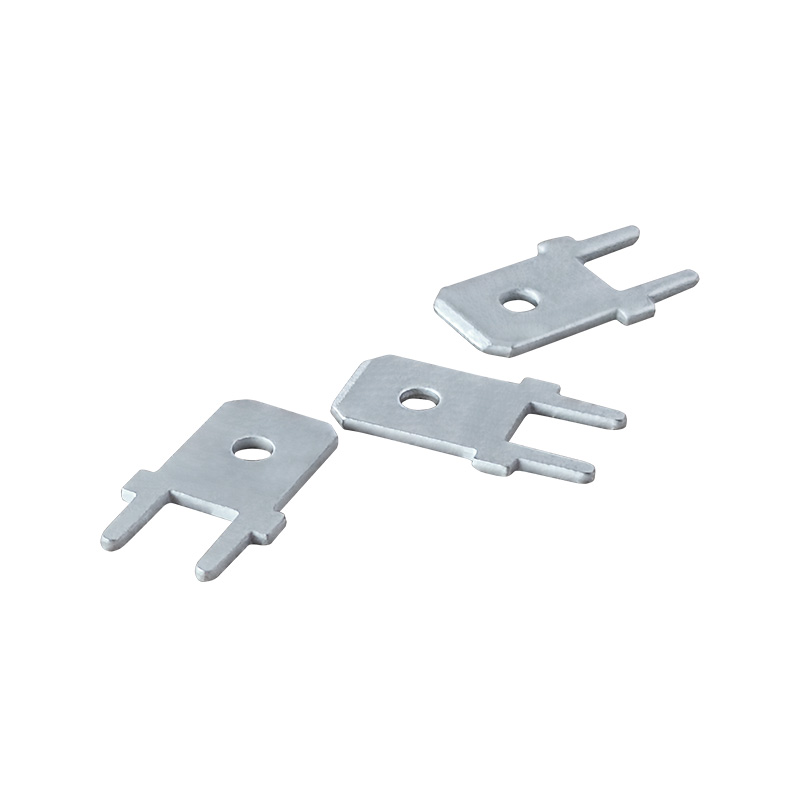

Custom PCB Spade Terminal
1. Wanda-an Quick-Fit PCB Spade Terminal
PCB spade terminals that feature 5.20mm and 6.35mm male tabs (0.205" and 0.250" ). Manufactured from 0.8 and 1mm thick (0.032" and 0.04") brass with tin finish, they're available in both horizontal and vertical configurations. Their space-saving design makes them ideal for use in dense areas and offers easy access for connecting and disconnecting Quick-fit female terminals.

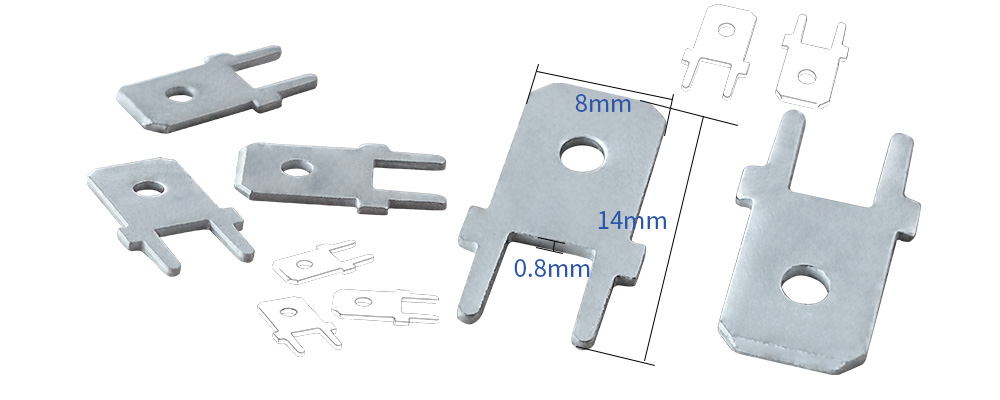

Wanda-an's product line includes both 0.187", 0.205", 0.250", and 0.4" (4.75mm, 5.20mm,6.35mm, and 8mm) PCB Quick-Fit Male Terminals. Manufactured from brass with tin-plated, the terminals feature Wanda-an's unique bases, which dramatically increase terminal strength and stability. Terminals remain perpendicular to the PCB and stay parallel to adjacent terminals. The enhanced mounting minimizes the likelihood of terminal or welding joint fracture due to rough handling or forces applied during terminal mating.
2. More Information
| Model | Vertical PCB spade terminal |
| Terminal Type | PCB male terminal |
| Certification | UL, RoHS |
| Mounting | THM |
| Current Rating | 10A, Custom |
3. Are you PCB terminal manufacturer?
Yes, we are PCB terminal made factory. For more specifications and application data, please feel free to contact us.
